| Prod Model: |
CP-28A |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand: |
Yuanhua |
| Approval: |
CE |
| Lifetime: |
20000 Hours |
| OEM/ODM: |
Welcome |
| Place Of Origin: |
China |
| Material: |
Fluoroplastics |
| Structure: |
Multistage Pump |
| Power: |
Electric |
| Type: |
Blade Pump |
| Application: |
Mini Pump Kit for Ice Maker |
| Theory: |
Electromagnetic Pump |
Product Description

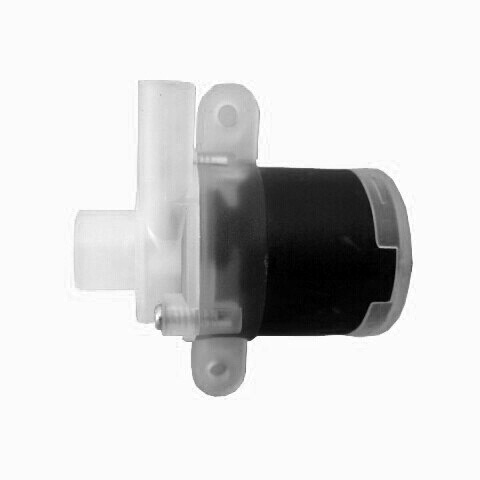

Mini Pump Kit for Ice Maker
Feature
1.Voltage rate:DC6V~DC24V ;
2.Pump motor adopts brushless dc motor, electronic control reversing, no spark;
3.Low start up current, high efficiency, easy operation, stable and reliable running, low power consumption, energy saving, environmental:
4.Pump use high wear resistance of stainless steel shaft, continuous service life more than 20000 hours;
5.Waterproof level:IP68
6.Noise:<35db
7.Customization accepted
8.Application:solar fountain,craft fountain,solar water heater pump,Air conditioning pump, electric car pump, auto water pump,Jacuzzi pumps, washing machine, medical equipment, instrument equipment water circulating pump etc.
| Model | Rated Voltage(V) | Current(A) | Flow Rate(L/H) | Lift(M) | Outlet Diameter(mm) | Inlet Diameter(mm) |
| YH-CP28A-6-250 | DC 6V | 0.15~0.40 | 100~250 | 0.5~1.5 | 8.2 | 13.5 |
| YH-CP28A-12-250 | DC 12V | 0.15~0.40 | 100~250 | 0.5~1.5 | 8.2 | 13.5 |
| YH-CP28A-24-250 | DC 24V | 0.15~0.40 | 100~250 | 0.5~1.5 | 8.2 | 13.5 |
The specific requirements according to the customer's requirements
2.Using water temperature up to 98 degrees |
Application:
1.Air conditioning
2.Fountain, aquarium,pond
3.Garden irrigation,garden landscapes
4.Hydroponic
5.Solar water pump
6.Automobile circulation
7.Water circulation system
8.Coffee maker (Food grade item)
9.Ice machine(Food grade item)
10.Water dispenser (Food grade item)
Company information:
1.Over 20-years experienced in pump area.
2.Granted by ISO9001:2008.
3.Has our own R & D team.
4.Focus on quality and pay attention to product testing.
5.Supplying Walmart,Home Depot,Kmart,Costco,Lowes,etc.
6.We have earned several design patents for our pumps
