| Prod Model: |
20l 30l 45l 55l 60l 70l 80l 90l |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Newsky Power |
| Power (W): |
45W |
| Voltage (V): |
12V/24V |
| Model Number: |
Br55c4 |
| Fridge Capacity(L): |
13L |
| Freezer Capacity(L): |
42L |
| Refrigerant: |
R134A |
| Temp. Scope: |
-19 to 10 Degrees |
| Warranty: |
3years |
| Certificates: |
CE, RoHS |
| Type: |
Top-Freezer |
| Power Source: |
Solar |
| Defrost Type: |
Manual Defrost |
| Door: |
Single Door |
| Material: |
Stainless Steel |
| Capacity: |
20-60L |
| Temperature Type: |
Single-Temperature |
| Installation: |
Mini/Portable |
| Certification: |
RoHS |
| Climate Type: |
Sn, N, St, T |
Product Description
Durable Solar Products,your best choice!
AC110v -240v DC12v/24v

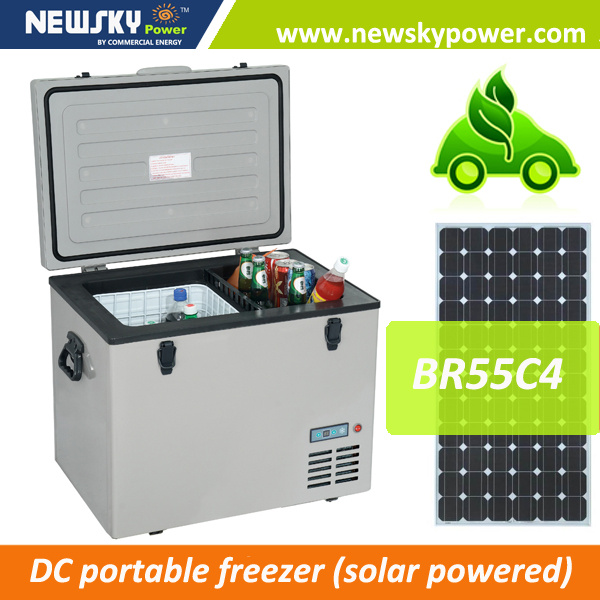

mini portable camping car refrigerator mini chest freezer 55L
what we can supply to you:
Portable solar freezer: 20L,30L,45L,55L,60L,70L,80L,90L
solar refrigerator : 92L, 118L, 142L, 158L, 176L, 198L
solar freezer: 90L, 118L, 138L, 188L, 238L, 318L
New model solar freezer:128L,170L
solar showcase: 208L
accessories: solar panel, solar charge controller, GEL battery, solar panel, auto switch, adaptor, wires
Features of our products:1.DC12V/24V AC110V-240V
2.Capacity: 20L,30L,45L,55L,60L,70L,80L,90L.
3.Material: 20/30L with PP plastic, others are Pre-coated steel and stainless steel
4.Cooling Scope: -19 degrees to 10 degrees
5.LED display
6. Lock and handle
7.Automatic power cut off at 10V to protect the battery
8. Using at home or outdoor
9.CE,ROHSParameter for reference:DC portable mini freezer- 20L,30L,45L,55L,60L| Model | BR20C4 | BR30C4 | BR45C4 | BR55C4 | BR60C4 |
| Capacity | Refrigerator | - | - | 7L | 13L | - |
| Freezer | 20L | 30L | 38L | 42L | 60L |
| Body Material | PP plastic | PP plastic | Pre-coated steel and stainless steel | Pre-coated steel and stainless steel | Pre-coated steel and stainless steel |
| Power Consumption | 40W | 40W | 45W | 45W | 45W |
| Input Voltage | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V |
| Lock | Yes | Yes | Yes | Yes | Yes |
| LED display | Yes | Yes | Yes | Yes | Yes |
| Automatic power Protection | Yes | Yes | Yes | Yes | Yes |
| Cooling Scope | -19ºC to +10ºC | -19ºC to +10ºC | -19ºC to +10ºC | -19ºC to +10ºC | -19ºC to +10ºC |
| Accessories | Cigaratte cable | Yes | | | | |
| portable basket | No | Yes | Yes | Yes | Yes |
| Travel bag | No | Yes | Yes | Yes | Yes |
| Product size(L*W*H) /mm | 580*364*432 | 580*364*553 | 690*475*490 | 690*490*535 | 690*475*490 |
| Carton size(L*W*H) /mm | 625*385*490 | 625*385*615 | 745*545*570 | 745*545*630 | 745*545*570 |
| N.W. /G.W(Kgs) | 14/15 | 16/17 | 23/26 | 25/28 | 23/26 |
| Q'ty | 224PCS/20GP | 168PCS/20GP | 128PCS/20GP | 96PCS/20GP | 128PCS/20GP |
DC portable mini freezer- 70L,80L,90L| Model | BR70C4 | BR80C4 | BR70AC4(new) | BR90AC4(new) |
| Capacity | Refrigerator | - | - | - | - |
| Freezer | 70L | 80L | 70L | 90L |
| Body Material | Pre-coated steel and stainless steel | Pre-coated steel and stainless steel | Pre-coated steel and stainless steel | Pre-coated steel and stainless steel |
| Power Consumption | 45W | 45W | 45W | 45W |
| Input Voltage | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V | DC12V/12V,AC110V-240V |
| Lock | Yes | Yes | Yes | Yes |
| LED display | Yes | Yes | Yes | Yes |
| Automatic power Protection | Yes | Yes | Yes | Yes |
| Cooling Scope | -19ºC to +10ºC | -19ºC to +10ºC | -19ºC to +10ºC | -19ºC to +10ºC |
| Accessories | Cigaratte cable | | | | |
| portable basket | Yes | Yes | No | No |
| Travel bag | Yes | Yes | No | No |
| Product size(L*W*H) /mm | 690*490*535 | 686*485*575 | 690*470*475 | 690*470*573 |
| Carton size(L*W*H) /mm | 745*545*630 | 745*545*670 | 790*570*555 | 790*570*650 |
| N.W. /G.W(Kgs) | 25/28 | 27/30 | 25/28 | 27/30 |
| Q'ty | 96PCS/20GP | 96PCS/20GP | 96PCS/20GP | 96PCS/20GP |
solar refrigerator| Model | BCD 92 | BCD 118 | BCD 142 | BCD 158 | BCD 176 | BCD198 |
| Power Consumption | 60W | 72W | 72W | 72W | 72W | 72W |
| Input Voltage | DC 12V/24V |
| Work Temperature | <40ºC |
| Capacity | Fridge Capacity | 82L(2.90 c.f.) | 76L (2.68 c.f.) (Bottom) | 100L (3.53 c.f.) (Bottom) | 98L (3.46 c.f.) (Upper) | 116L (4.10 c.f.) (Upper) | 118L (4.17 c.f.) (Upper) |
| Freezer Capacity | 10L(0.35 c.f.) | 42L (1.48 c.f.) (Upper) | 42L (1.48 c.f.) (Upper) | 60L (2.12 c.f.) (Bottom) | 60L (2.12 c.f.) (Bottom) | 80L (2.83 c.f.) (Bottom) |
| Product Size (mm) | 470*475*815 | 470*475*1165 | 470*475*1265 | 500*530*1370 | 500*530*1450 | 500*530*1580 |
| Carton Size (mm) | 505*535*855 | 505*535*1205 | 505*535*1305 | 555*605*1430 | 555*605*1505 | 555*605*1680 |
| N.W./G.W.(KG) | 23/26 | 30/33 | 32/35 | 41/45 | 43/47 | 44/49 |
| Loading Quantity | 88PCS/20GP
184PCS/40GP 276PCS/40HQ | 44PCS/20GP
92PCS/40GP
184PCS/40HQ | 44PCS/20GP 92PCS/40GP
184PCS/40HQ | 38PCS/20GP
79PCS/40GP 79PCS/40HQ | 38PCS/20GP
79PCS/40GP 79PCS/40HQ | 38PCS/20GP
79PCS/40GP 79PCS/40HQ |
solar freezer| Model | BR90C4 | BR118C4 | BR138C4 | BR188C4 | BR238C4 | BR318C4 |
| Power Consumption | 60W | 72W | 72W | 72W | 80W | 80W |
| Input Voltage | DC 12V/24V |
| Work Temperature | <40ºC |
| Capacity | 90 L
(3.18 c.f.) | 118 L
(3.18 c.f.) | 138 L
(4.87 c.f.) | 188 L
(6.64 c.f.) | 238 L
(8.40 c.f.) | 318 L
(11.23 c.f.) |
| Product Size(mm) | 625× 555×910 | 815× 555×910 | 815× 555×910 | 875×595×920 | 1245×660×920 | 1245×660×920 |
| Carton Size(mm) | 685×565 ×935 | 885×560 ×930 | 885× 575×930 | 930×605×940 | 1300×680×940 | 1300×680×940 |
| N.W./G.W.(KG) | 26/31 | 29/35 | 30/36 | 36/43 | 50/58 | 52/60 |
| Loading Quantity | 66PCS/20GP
138PCS/40GP
138PCS/40HQ | 52PCS/20GP
104PCS/40GP
104PCS/40HQ | 52PCS/20GP
104PCS/40GP
104PCS /40HQ | 42PCS/20GP
88PCS/40GP
88PCS/40HQ | 34PCS/20GP
70PCS/40GP
70PCS/40HQ | 26PCS/20GP
54PCS/40GP
54PCS/40HQ |
Photos for reference:
Solar refrigerators:

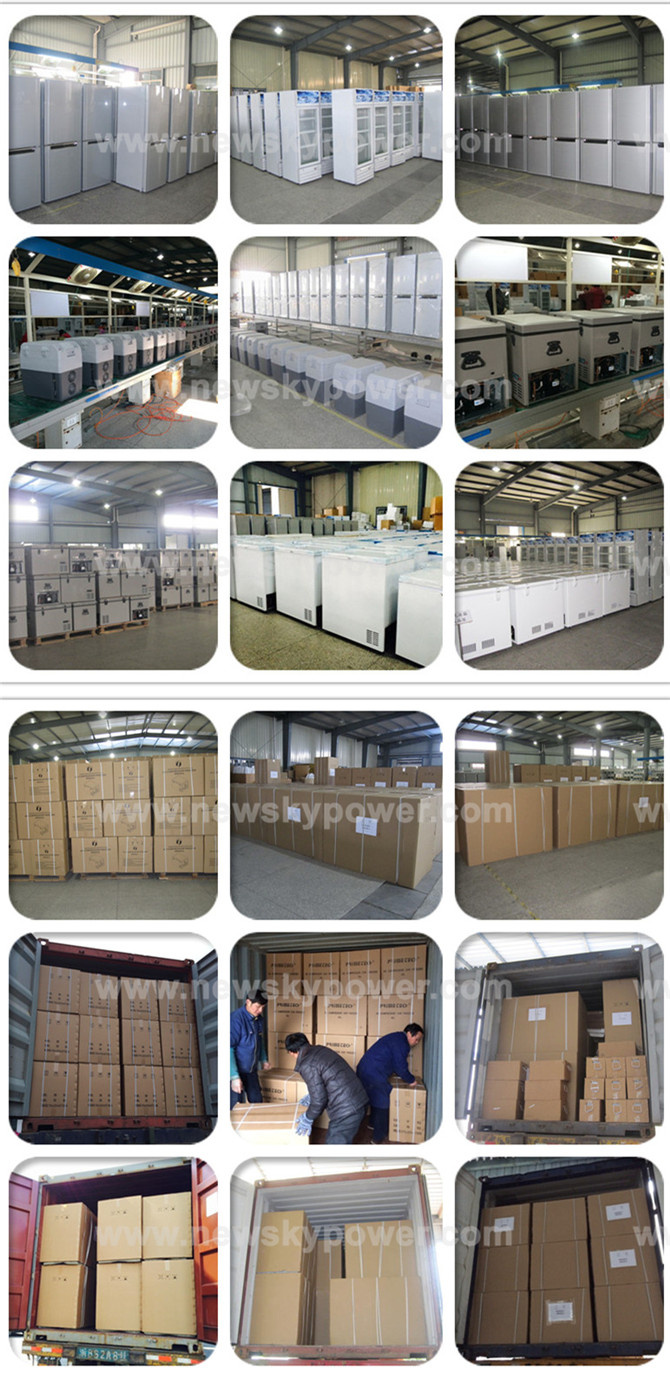

Factory and Package:

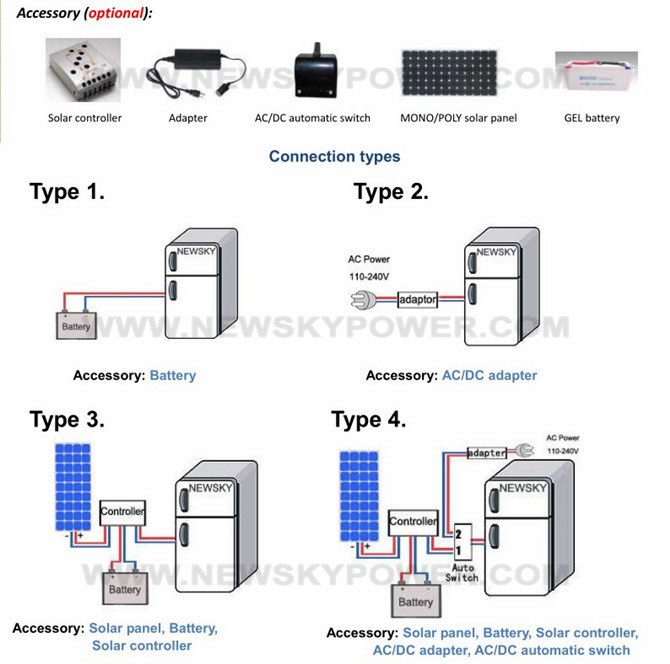

Asscessories and connection type:1. Basket (excludes 20L): free of charge.
2. Cable with Cigarette Plug (for each freezer): free of charge.
3. Adaptors (optional): for AC Power using.
4.Travel bag(optional,excludes BR20C4,BR70AC4,BR90AC4):
there are two layers on the bag,inners is PVC with coated aluminium,outside is PE.
Quality guarantee:
1. Warranty: three years for compressor, one year for other parts.
2. Provide 2% spare for 20GP/40GP quantity order, it's free of charge.
3. The validity of quotation is 30 days from the date of quotation.
4.CE,ROHS
---------------------------------------------------------------------
Why choose us as your long-terms partner?
1. Over 10 years professional experience of producing and exporting solar refrigerator&freezer.
2. Partner of F.A.O. (Food and Agriculture Organization)
3. Own technical team
4. High standard quality control program
5. Excellent speed service always
---------------------------------------------------------------------
Company Introduction:COMMERCIAL ENERGY GROUP LIMITED
is an energy-saving technology pioneer company, engaged in develop and apply wind power generator and solar system. Located in the QINGDAO Development Zone nearby Qingdao port, the company enjoys an excellent traffic convenience.
In response the call of government concerning on energy-saving & emissions reduction, we majorly focus on the development of wind solar power system. Based on radical innovatory design concept and high-tech application, make fully use of the green, clean energy to achieve zero power consumption, zero emissions, zero pollution.
Guided by the principle of "advanced technology,exquisite product and competent manufacturing",the company is proceeding with the mission of energy saving and green planet building based on the spirit of credit,innovation,hard working and social responsibility.
CONTACT US:
Una Liu
COMMERCIAL ENERGY GROUP LIMITED
Tel : +86-532-86943160
Fax: +86-532-86936604
Mobile: +86-13969-820087
www.newskypower.com
---------------------------------------------------------------------
About Solar refrigerators and solar freezers
Solar refrigerators and solar freezers have surged in popularity because these solar appliances are particularly useful on RV and boating trips as well as for isolated locations such as cabins and are very good for aid work or emergency relief.
We carry several practical solar refrigerators and solar freezers of varying sizes to suit your needs. Due to remote locations and inaccessible energy supply, researchers and aid workers are faced with storage challenges in safely storing food supplies, agricultural products, medical supplies and freezing products.
Even if you are not going to Africa on aid work, solar appliances can be used here at home. They are particularly useful on RV, boating trips, recreational storage and as well as for isolated locations such as camping trips and cabins, you can even use it to longer the life of battery and kill the worms in books.
We have sold several solar refrigerators that have been used in foreign countries in which an electrical outlet may be many miles away. Solar fridges and solar freezers give you the convenience of home without the trouble of a noisy generator. The solar fridges and solar feezers that we carry are sold either separately as can be configured in a system.
Qingdao commercial energy electronics Co., Ltd is subsidiary corporation of Commercial energy group limited, We are manufacturer of solar and wind products over 7years with well-equipped testing facilities and strong technical force. Our main products are all in one solar street light, MPPT solar charge controller, Phocos solar charge controller, solar refrigerator & freezer, wind turbine.
"NEWSKY POWER" is our brand which is one of the famous trademarks of China. With world advanced quality and technology, the products enjoy high reputation and wide influence in the domestic and overseas markets. It occupies most of the consumption market with its high product quality and sincere service
Thanks to its strong professional technical strength, strict quality management system, measuring and inspection system, standardization system, informatization system and modernized scientific management means, it exerts the potential advantages of sustainable development and undisputedly ranks the leading position in the same industry, becoming an acknowledged leading enterprise and excellent representative in China renewable industry.
We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success.
