| Prod Model: |
RFM-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certification: |
CE |
| Type: |
Card Write-Reader |
| Design: |
Industry |
| Voltage: |
DC5v |
Product Description

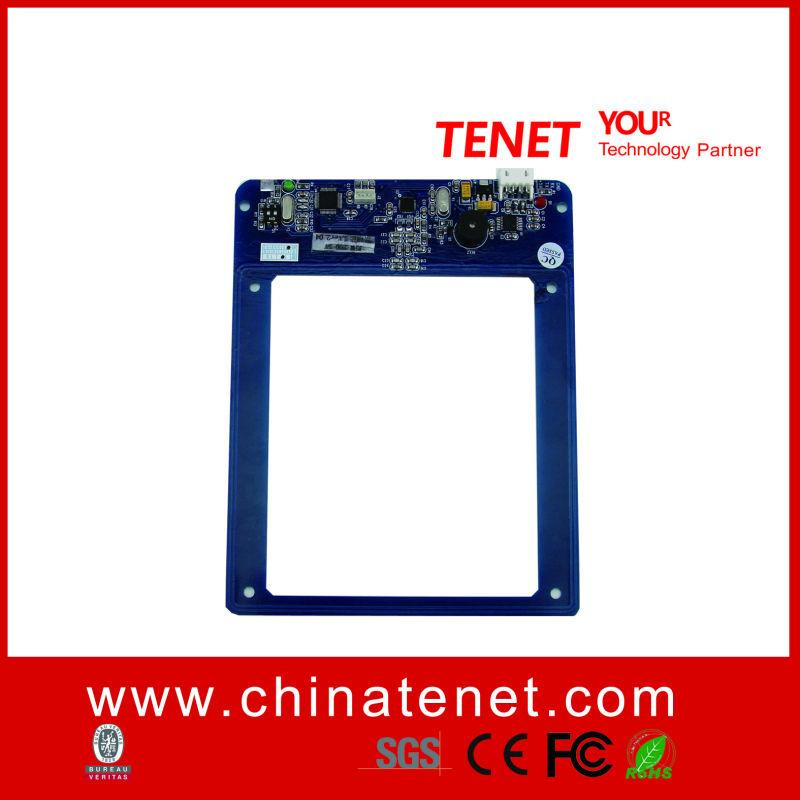

13.56MHz Mifare RFID Card
1 Overview
RFM Series non-contact reader with 13.56MHz RF technology embedded low power radio station MFRC522. Users do not have the complexity of control RF base station, just a simple UART interface to send the selected command to achieve full operation of the card. The series of reader support for Mifare one S50, S70 and compatible cards.
1.1 Model and differences
Model
Difference
FRM100
USB interface, connect directly with the PC
RFM200
UART interface, 5V power supply
RFM300
UART interfaces, 5V power supply
1.2 Electrical Characteristics
Typical Power Supply: 5V
Reader Current: 100mA
Operating temperature: -25 ~ 85 ° C
1.3 Interface definition:
Name
Definition
VCC(V)
Power supply positive of the input reader.
OV(G)
Negative power supply of the input reader.
Rx(R)
RS232 communication data receiver terminal
Tx(T)
RS232 communication data transmit terminal
2 Data Communication Protocol
2.1 Asynchronous half-duplex UART protocol
UART interface, a data format as a start bit, 8 data bits, no parity, 1 stop bit.
Baud Rate: 19200
Send data packet format:
