Product Description

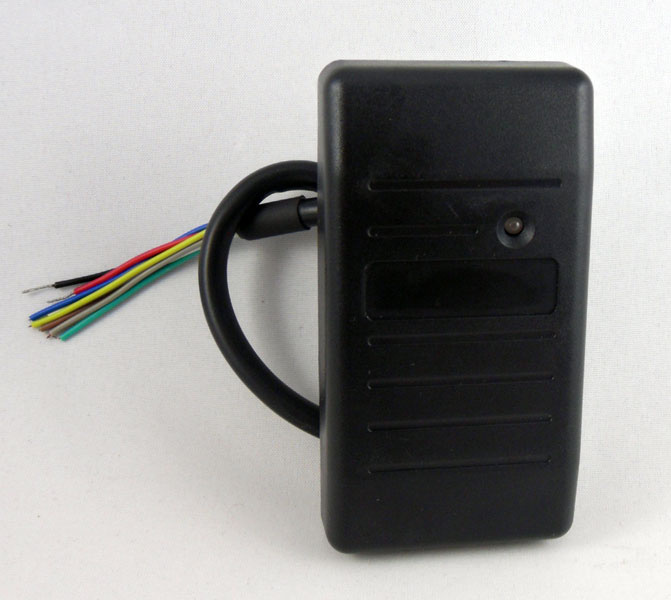

Mifare 1k mifare 4k ISO 14443a card reader
This reader is a contactless smart card reader. It can be made to read/write, or read-only card serial number or customize read-only data. This reader communicates with the controller through the Wiegand, ABA, RS232 or RS485 interface, and it is special design for access control, time attendance and other applications. This reader adopts powerful eight microprocessor, advance watch-dog and voltage monitoring circuit design. Set high security and economical efficiency, not only has the characteristics of high integration, strong anti-jamming capability but also small size and more stable performance.
Standard
ISO/IEC14443A
Support card
Mifare One S70, Mifare One UltraLight, Mifare One S50
Frequency
13.56MHz
Baud Rate
9600/19200(RS232/RS485)
Power Supply
DC 9V ~ 12V(± 5%)
Current
<60mA
Operating Range
30-100mm(depending on card/tag)
Interface
RS232/RS485/Wiegand26/Wiegand34/ABA
Indication Light
1 LED, 1BUZ
Working Temperature
-10º C to +70º C
Storage Temperature
-20º C to +80º C
Humidity
0~95%
Size
80*42*11mm
Shanghai Zangtian Electronic Co., Ltd is a RFID Electronic products developing, producing and marketing enterprise. Based on nearly 10 years of professional research and mature technologies, Zangtian is rising rapidly in the RFID field. Relying on scientific and technological development to provide users with high-tech products, is our consistent pursuit.
In the full introducing of foreign advanced technology and integrating the needs of customers, we now have more than 50 sorts of products which have been widely used in access control, telecommunications, financial services, logistics, machinery and equipment etc. Company has become into a production, research and development and trade enterprise form a small production base.
Zangtian has the ability to produce various types of cards. Contactless chip card such as: Hitag 1, hitag2, Legic card, Mifare cards, ID cards; Electronic tags can be customized according to the provided specifications of our clients. Products are exported to the Middle East, Europe and the United States and many other countries and regions.
Zangtian has accumulated rich experience in producing various contactless high-frequency and low-frequency chip products. We have many solutions in personalized products for customers and have a number of successful cases in Sensor IC cards, contactless IC card portfolio and in the application of the dual interface smart cards, has a number of successful cases.
The stability and durability of products, has affirmed by many research and development, application, system integrators companies.
The company has produced various types of special-shaped molds, can make a variety of models and specifications of the IC card, ID card, and the various types of special-shaped tags with personalized logo.
