| Prod Model: |
USB cable |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Color: |
Blue/Optional |
| Length: |
0.5m-10m |
| Use: |
MP3 / MP4 Player, Video Game Player, Mobile Phone, |
| Conductor Material: |
Bare Copper |
| Inner Contact: |
Gold Plated |
| Jacket: |
PVC |
| Interface Type: |
USB3.0 |
| Connector: |
USB |
| Switch: |
Without Switch |
| Retractable: |
Not Scalable |
| Charging Function: |
Charging Function |
Product Description

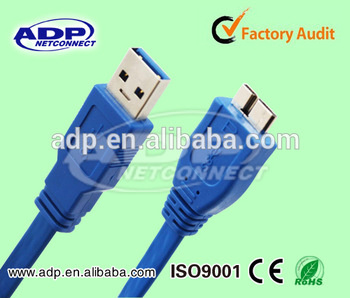

Micro USB Cable With CE And ROHS certificates
Specifications
USB Cable 3.0 /USB Data Cable/USB 2.0 USB3.0
USB Cable 2.0 /USB Data Cable/USB 2.0 USB3.0
Highest quality USB cables allow for transfer rates up to 480 Mbps. These cables allow for simple "plug & play" connections for devices such as printers, keyboards/mice, digital cameras and other USB peripherals. Twisted pair data lines help reduce crosstalk while power conductors enable maximum power transfer from host to peripheral.
*Standard USB cable assembly, Type A male to Type B male Connectors with golden plating.
*Simple plug and play connections from USB hosts and peripherals
*Molded backshells provide durability and increased strength at cable entry point
*Foil plus braid shield provides maximum protection against EMI/RFI
*USB Revision 1.0, 1.1, and 2.0 /3.0compliant
*Various of Length, Color available
| Connector plating | Gold-plated ,Nickel-plated |
| Contact | Copper Alloy |
| Shielding | Foil and Braid |
| Jacket Color | BLUE,BLACK,WHITE or optional |
| Conductor | Bare copper ,Tinned copper or optional |
| Over mold | PVC 80Pa ,UL94V-0 Black |
| Pre mold | PE Low Density |
| Withdraw Force | 10N Min |
| Insertion Force | 35N Max |
| Contact Resistance | 0.01 OHM Max |
| Insulation Resistance | 10M OHM /300V Min |
| Hi-Pot | DC 300V 10ms |
| Working Temperature | -25 °C ~ +85 °C |
| Compatibility | USB 1.0 & USB 3.0 |
