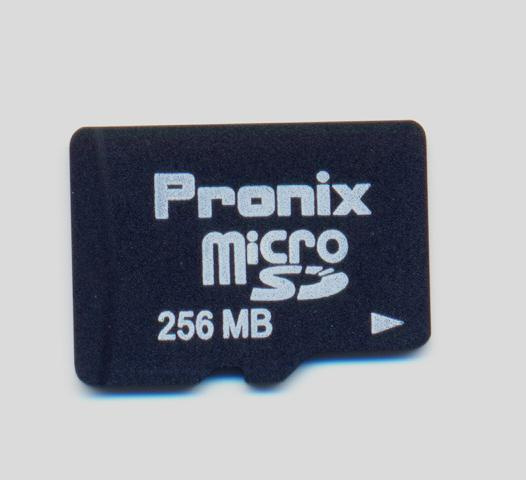

Micro SD Card (SD1)

Prod Model:	SD1

Product Description

Flash memory card capacity support 256MB up to 2GB
Compliant SDA Specification 1.1.
Error correction code ( ECC ) Embedded.
Variable clock rate: 0~50MHz
Voltage range: Operating: 2.7~3.6V
Low power consumption: Au
Tomatic power down and automatic wake up, smart power management
Damage free powered card insertion and removal
Supports Copy Protection for Recorded Media (CPRM) for music and other commercial media
Targeted for portable and stationary applications for secured (copyrights protected) and non-secured data shortage.
Copyrights protection mechanism: Complies with highest security of SDMI standard.
Dimension: 11.0 mm (W) x 15.0 mm (L) x 1.0 mm (H)

Performance:
Capacity Read (KB/s) Write (KB/s)
256MB 12118 8974
512MB 12132 6822
1GB 11893 6679
2GB 10916 6965

Note: The performance depends on different test platform with different result.
