Metering LCD Displays
| Price: |
Negotiable/Piece |
| Trade Terms: |
FOB,EXW,CIF |
| Min Order: |
100/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
| Prod Model: |
Blaze display 002 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Mid East,Eastern Asia,Western Europe |
| Type: |
Graphic |
| Display Technology: |
STN |
| Viewing Angle: |
TN＋FILM |
Product Description

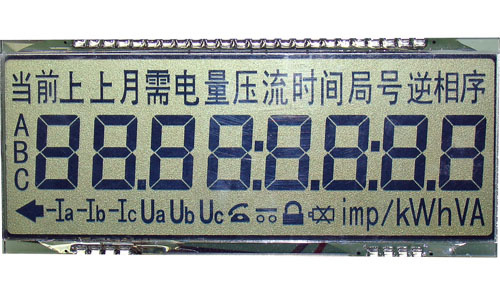

So far, Blaze Display supplied around 10 billion high quality and reliability LCD displays with long life time (around 15 years), super wide operating temperature(from -40 to +90), and anti UV function for metering industry. Our Metering LCD Displays (LCD Panels, LCD Modules) are widly used for Kwh Meter, Smart meter, Single phase meter, 3-phase meter, Prepayment energy meter, Electric energy meter, Multi-function energy meter, Water meter, Gas meter, Power meter.
|
Operating Temperature Range(°C) |
Operating Voltage Range(V) |
Duty Rato |
Response Time Range(ms) |
Glass Thickness(mm) |
Lifetime(Hours) |
|
TN/HTN Module |
- 40°C _ + 90°C |
1.5 _ 12.5 |
up to 1/32 |
125 _ 8500 |
0.4,0.55,0.7,1.1 |
135,000 |
|
STN/FSTN Module |
- 40°C _ + 85°C |
2.5 _ 26.0 |
up to 1/240 |
300 _ 6000 |
0.4,0.55,0.7,1.1 |
110,000 |
Blaze Display Tehcnology Co., Ltd., since 1982, a professional LCD Displays Researcher, Designer, Manufacturer and the subsidiary of Blaze Group. Being one of the leading High-tech enterprises engaged in LCD Displays field and one of the earliest LCD Displays manufacturers in China, it has more than 20 years' display technology experience.
We offer Monochrome and Colored LCD Displays: LCD Panels (TN, HTN, STN, FSTN, DSTN, CSTN Type), LCD Modules (COB, COG, COF, SMT, TAB Type), Character LCD Modules, Graphic LCD Modules, Alphanumeric LCD Modules, Segment LCD Modules, DOT Matrix LCD Modules, STN-LCD Modules, FSTN-LCD Mdoules, Standard LCD Modules, Customized LCD Modules, TFT LCD Modules, Active Matrix OLED, Passive Matrix OLED Display Modules, Touchscreen Displays, Backlight for application in instrument (especially in LGP Dispenser, Fuel Dispenser, Oil Dispenser, Gas Dispenser, Flow Meter, KWH Meter, Energy Meter, Water Meter, Gas Meter, Smart Meter), Clock & Watch, Telecommunications, Home Appliance, Industrial Controller, Car Audio, Color Display Systems and the other industries.
As proven to be a reliable supplier, we sell high quality LCD Display products to some large-scale electronic manufacturers from all over the world, such as GE, Motorola, Philips, Itron. Nowadays, Blaze Display is providing LCD Displays with the metering and cordless phone products for GE and Motorola OEM Manufacturers. Our products are throughout the world and most of them are sold to Japan, America, Eruope, South Korea, Taiwan, Mainland of China, Southeast Asia, Hong Kong, etc.
All total 73 engineers (9 of them from lading research institutes) in Blaze Display are equipped with much experience in display field to support us in researching, developing, designing and producing from time to time, which enables us to meet our customers ever changing needs as well as insuring us to supply high quality LCD Display products at lowest cost.
With the manufacturing resources and the depth of technology, Blaze Display is well prepared to service every customer for LCD Display products and fully satisfy their requirements for reliability, quality an competitiveness. A quality assurance program is also carried out at Blaze Display in which acquired certificate of ISO 9001: 2000.
Through its Shenzhen office, Blaze Display is able to keep in close contact with its customers and to react quickly to their changing requirements for product specifications and delivery schedules. We can also dispatch shipments on whaterver basis to well fulfill the customer's inventory management program.
Through strong and long term relationships with customers, and other partners in our supply chain, we plan and execute customized products, and cost effective solutions in today's fast-paced worldwide business environment.
