| Prod Model: |
MB15X351 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Nominal Impedance: |
8ohm |
| Noise: |
<95dB |
| Hi-Fi: |
Not Hi-Fi |
| Application: |
Commercial |
| Certification: |
CCC |
| Speaker Material: |
Cu |
Product Description
Product Information:

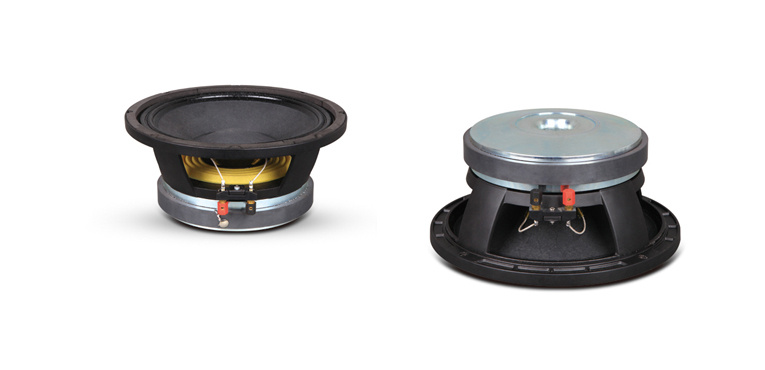

| APPLICATION | Subwoofer |
| Nominal impedance | Ohm | 8 |
| Continuous pink noise | W | 500 |
| The maximum peak power | W | 1000 |
| Sensitivity(1W/1m) | dB | 96 |
| Frequency response | Hz | 35-3.5KHZ |
| Voive coil diameter | mm | 87(3.5in) |
| Voive coil material |
| Cu |
| Voice coil winding depth | mm | 19 |
| Magnet gap depth | mm | 20 |
| THIELE-SMALLPARAMETERS |
|
|
|
| Resonance frequency | Fs | Hz | 52 |
| DC resistance | Re | Ohm | 5.8 |
| Mechanical Q factor | Qms |
| 4.2 |
| Electrical Q factor | Qes |
| 0.52 |
| Total Quality factor | Qts |
| 0.46 |
| Equivalent volume | VAS | L | 100.7 |
| Moving mass | Mms | kg | 94.17 |
| Mechanical complience | Cms | mm/N | 0.0987 |
| BL factor | BL | Tesa m | 18.52 |
| Effective piston area | Sd | m² | 0.0855 |
| Max.linear escursion | Xmax | mm | ±4.5 |
| MOUNTING INFORMATION |
|
|
| Overall diameter | mm | 393 |
| Mounting holes diameter | mm | 375 |
| Bolt circle diameter | mm | 8x(8-12) |
| Baffle cut-out diameter | mm | 355 |
| Overall depth | mm | 170 |
| Net weight | kg | 8.2 |
