| Item No.: |
Sh-MP002 |
| Input: |
4.8~5.2V 1000mA |
| Output: |
DC 5V 1000mA/2100mA |
| Dimension: |
153mm*73mm*12.5mm |
| Weight: |
310g |
| Wireless Distance: |
1-10mm |
| Charging Frequency: |
100~200kHz |
| Wireless Charging Power: |
5W |
| Efficiency: |
More Than 70% |
| Type: |
for Mobile Phone or iPad Ect. |
| Capacity: |
8001-12000mAh |
| Charging Type: |
Electric |
| Applicable Models: |
Mobile Phone |
| Cell Type: |
Li-Polymer |
| Display: |
Without Display |
| LED Lighting: |
Without LED Lighting |
| Recyclable: |
Recyclable |
| Compatible Brand: |
Smartphone |
| Carrying Way: |
Normal |
| Socket Type: |
Universal |
Product Description
Manual Power Bank Wireless Charger
Thanks you for using this product of our company.In order to let you experience the product swimmingly, detailed instruction is provided which you can find the product's introduction. Usage and other information.Before using this product please read the manual carefully,so that you can correctly use it ,in case of any printing or translation error ,we apologized for the inconvenience .As for the content change ,we are sorry for further notice.1.General information
This product is a well-designed portable aggregation battery with high capacity transmitting terminal of wireless charge &power bank which applies to household, outdoor travel ,office and other place ,it offers you a chance to indulge yourself in wireless charging at any time and place and provides perfect charging service to your IPAD,mobile phones ,digital camera ,MP4 and other electronic product.2.Function overview
- power bank
- Wireless charging
- Rechargeable battery included
- Intellective charging

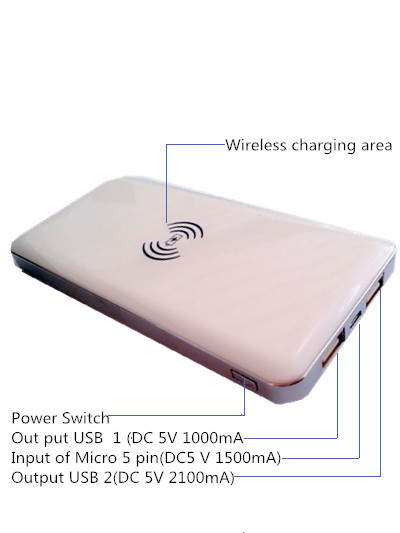

3.introduction of button and indicator light
1.input of Micro 5Pin(DC 5V 1000mA)
2.output of USB1(DC 5V 1000mA)
3.Output of USB2(DC 5V 2100mA)
4.Power switch
5.Indicator Light
6.Center area of wireless charging.4.Operation
1.Turn on/off
Light press the power switch to turn on the machine.Then the blue light is on.
Long press the power switch three second to turn on/turn off wireless charging functions.Then the red light is on/off.2.charing oneself
One end of wiring be inserted in Micro 5 PIN jack,another end with adapter in electric socket ,blue LED light is twinkling under charging and all blue LED lights are on after fully charged.3.charging for other electronic products
3.1wired charing
Turn on the power switch ,blue indicators light is on ,one end of wiring be inserted in USB jack another end be inserted in electric jack of products that need recharging, The blue LED light is twinkling.
3.2wireless charging
Turn on the wireless charging power switch red indicators light is on,pit mobile phpne on it exactly and blue LED light is twinkling.5.FAQS.
- turn on the power switch ,if only one blue LED light is twinkling battery will be run down soon,please recharge.
- This product can automatically identify equipment that need to charge ,if there is not equipment on it,the machine will be power off after 5 min.
- If the center point of the receiving terminal is deflected over 20mm from the center point of transmitting terminal ,the machine power will be off automatically ,The more deflected the more inefficiency.
- If the transmitting terminal detect that the current of load is over,it will disconnect connection automatically ,the transmitting and receiving terminal will be kept standby status automatically.Reset receiving terminal and then restart.
- The correct of load with wire and wireless charging is over ,the transmitting terminal will disconnect connection automatically. You must remove some receiver,s o that the current of load reach rated current.
- The battery will be not charge fully and machine will be damaged if you use mismatched adapter.
6.Specification
- input:4.8-5.2V 1000mA.
- Output :DC 5V 1000mA/2100mA.
- 3.Dimension:Product (L153mm*W73mm*H12.5mm)
- Weight:310g
- Carry tape:put it into traveling bag laptop bag or car
- Display capacity: Display electricity capacity with four blue LED,when wireless charging red light is on.
- Charging type: charging with wire and wireless in the same time
- Sphere of application :Applies for all the product of Samhals Standard.
- Charging frequency :100~200KHZ.
- Wireless distance::1-10mm
- Efficiency:more than 70%
- Wireless charging power:5W
