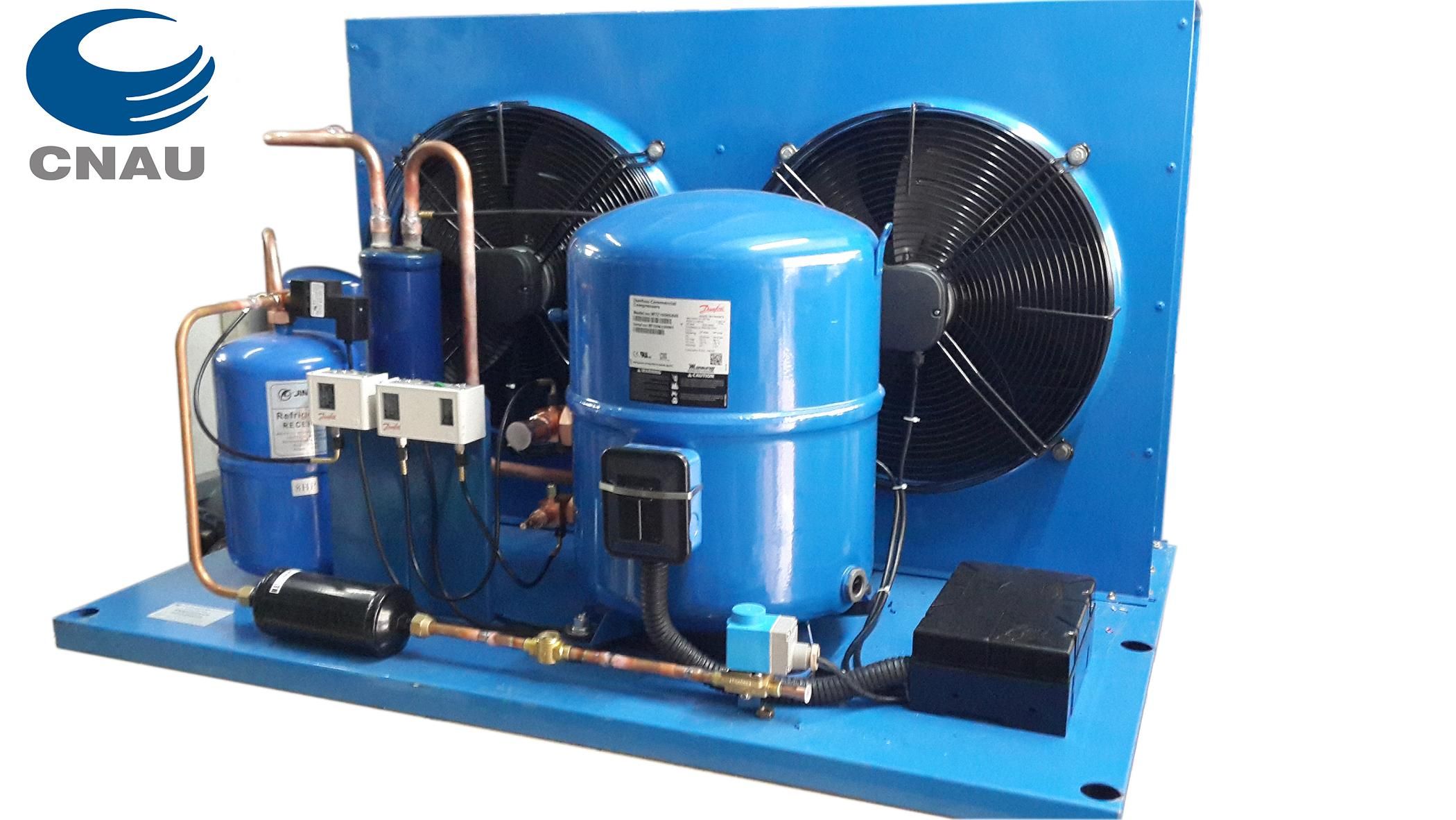

Maneurop Condensing Unit, Maneurop Cdu

Name: Maneurop Condensing Unit, Maneurop Cdu
Brand: ec-portal.com
SKU: 781271585
Availability: InStock
Rating: 5 (86 reviews)

Price:	US $ 1500/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	L/C,T/T

Send Inquiry

Showroom Product Company Profile

Prod Model:	HGM/HGZ 144 (R407C)
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Medium And High Temperature:	Cold Storage / Blast Freezer Used
Usage:	Refrigerator
Certification:	CCC
Control Type:	Mechanical
Type:	Piston
Material:	Steel
Brand:	Danfoss

Product Description

Maneurop condensing units MGM Series 5ºC to -20ºC
Can be used for R407C,R22
Medium and High Temperature

M o d els	T E	5ºC		0ºC		-5ºC		-10ºC		-15ºC		-20ºC
M o d els	T A	P .F .	P .A .	P .F .	P .A .	P .F .	P .A .	P .F .	P .A .	P .F .	P .A .	P .F .	P .A .
M G M 0 1 6	2 7	3 4 9 0	1.3	2 8 9 0	1 . 2	2 3 3 0	1 . 1	1 8 4 0	0 . 9	1 4 1 0	0 . 8	1 0 4 0	0 . 7
	3 2	3 2 1 0	1 . 4	2 6 6 0	1 . 2	2 1 4 0	1 . 1	1 6 8 0	1	1 2 8 0	0 . 8	9 3 0	0 . 7
	3 8	2 8 9 0	1 . 5	2 3 9 0	1 . 3	1 9 2 0	1 . 2	1 5 0 0	1	1 1 4 0	0 . 9
M G M 0 1 8	2 7	3 9 4 0	1 . 2	3 2 0 0	1 . 1	2 5 5 0	1	1 9 9 0	0 . 9	1 5 0 0	0 . 8	1 0 9 0	0 . 7
	3 2	3 6 5 0	1 . 3	2 9 6 0	1 . 2	2 3 6 0	1	1 8 3 0	0 . 9	1 3 7 0	0 . 8	9 9 0	0 . 7
	3 8	3 2 9 0	1 . 4	2 6 7 0	1 . 2	2 1 2 0	1 . 1	1 6 3 0	1	1 2 1 0	0 . 9	8 7 0	0 . 7
M G M 0 2 2	2 7	5 0 3 0	1 . 7	4 2 1 0	1 . 5	3 4 6 0	1 . 4	2 7 6 0	1 . 2	2 1 5 0	1	1 5 9 0	0 . 9
	3 2	4 6 6 0	1 . 8	3 9 0 0	1 . 6	3 1 8 0	1 . 4	2 5 3 0	1 . 3	1 9 4 0	1 . 1	1 4 2 0	0 . 9
	3 8	4 2 2 0	1 . 9	3 5 1 0	1 . 7	2 8 5 0	1 . 5	2 2 4 0	1 . 3	1 7 0 0	1 . 1	1 2 0 0	0 . 9
M G M 0 2 8	2 7	6 5 5 0	2 . 4	5 6 0 0	2 . 2	4 7 1 0	2	3 8 7 0	1 . 8	3 1 0 0	1 . 6	2 4 1 0	1 . 4
	3 2	3 1 2 0	2 . 5	5 2 2 0	2 . 3	4 3 8 0	2	3 5 8 0	1 . 8	2 8 5 0	1 . 6	2 1 9 0	1 . 4
	3 8	5 5 8 0	2 . 7	4 7 6 0	2 . 4	3 9 8 0	2 . 1	3 2 3 0	1 . 9	2 5 5 0	1 . 6
M G M 0 3 2	2 7	7 6 1 0	2 . 7	6 4 1 0	2 . 4	5 3 2 0	2 . 2	4 3 3 0	2	3 4 6 0	1 . 8	2 6 9 0	1 . 6
	3 2	7 1 3 0	2 . 8	6 0 0 0	2 . 6	4 9 5 0	2 . 3	4 0 1 0	2	3 1 7 0	1 . 9	2 4 3 0	1 . 6
	3 8	6 5 6 0	3	5 5 1 0	2 . 7	4 5 3 0	2 . 4	3 6 4 0	2 . 2	2 8 4 0	1 . 9
M G M 0 3 6	2 7	8 4 8 0	3 . 1	7 2 7 0	2 . 8	6 1 3 0	2 . 5	5 0 7 0	2 . 3	4 1 0 0	2	3 2 2 0	1 . 8
	3 2	7 9 5 0	3 . 3	6 8 0 0	3	5 7 2 0	2 . 6	4 7 0 0	2 . 4	3 7 7 0	2 . 1	2 9 3 0	1 . 9
	3 8	7 3 0 0	3 . 4	6 2 3 0	3 . 1	5 2 0 0	2 . 8	4 2 5 0	2 . 5	3 3 7 0	2 . 2
M G M 0 4 0	2 7	9 6 7 0	3 . 5	8 2 0 0	3 . 1	6 8 5 0	2..8	5 6 3 0	2 . 5	4 5 4 0	2 . 2	3 5 6 0	1 . 9
	3 2	9 1 7 0	3 . 7	7 7 4 0	3 . 3	6 4 3 0	3	5 2 4 0	2 . 7	4 1 8 0	2 . 3	3 2 2 0	2
	3 8	8 5 5 0	3 . 9	7 1 9 0	3 . 5	5 9 3 0	3 . 1	4 7 7 0	2 . 8	3 7 4 0	2 . 4
M G M 0 5 0	2 7	1 1 6 8 0	3 . 9	9 7 1 0	3 . 5	7 9 8 0	3 . 1	6 4 6 0	2 . 8	5 1 6 0	2 . 4	4 0 8 0	2 . 1
	3 2	1 0 9 4 0	4 . 1	9 0 9 0	3 . 7	7 4 3 0	3 . 3	5 9 9 0	2 . 9	4 7 6 0	2 . 5	3 7 2 0	2 . 2
	3 8	1 0 0 6 0	4 . 3	8 3 2 0	3 . 8	6 7 8 0	3 . 4	5 4 3 0	3	4 2 7 0	2 . 7	3 3 0 0	2 . 3
M G M 0 6 4	2 7	1 5 1 1 0	5	1 2 6 7 0	4 . 5	1 0 4 5 0	4 . 1	8 4 6 0	3 . 6	6 7 0 0	3 . 2	5 1 6 0	2 . 7
	3 2	1 4 1 8 0	5 . 3	1 1 8 8 0	4 . 8	9 7 7 0	4 . 3	7 8 7 0	3 . 8	6 1 8 0	3 . 3	4 7 1 0	2 . 9
	3 8	1 3 0 8 0	5 . 6	1 0 9 4 0	5 . 1	8 9 7 0	4 . 5	7 1 9 0	4	5 6 0 0	3 . 5	4 2 2 0	3
M G M 0 8 0	2 7	1 8 8 9 0	6 . 2	1 5 9 5 0	5 . 6	1 3 2 2 0	5 . 1	1 0 7 5 0	4 . 5	8 5 3 0	4	6 5 6 0	3 . 5
	3 2	1 7 7 6 0	6 . 6	1 4 9 7 0	5 . 9	1 2 3 8 0	5 . 3	1 0 0 3 0	4 . 7	7 9 0 0	4 . 2	6 0 2 0	3 . 7
	3 8	1 6 4 2 0	7	1 3 8 4 0	6 . 3	1 1 4 2 0	5 . 7	9 2 1 0	5	7 2 0 0	4 . 5	5 4 2 0	3 . 9
M G M 1 0 0	2 7	2 3 3 3 0	6 . 9	1 9 5 2 0	6 . 5	1 6 1 1 0	6	1 3 0 8 0	5 . 5	1 0 4 6 0	5	8 1 9 0	4 . 5
	3 2	2 1 7 7 0	7.3	1 8 1 5 0	6 . 8	1 4 8 8 0	6 . 2	1 2 0 0 0	5 . 7	9 4 7 0	5 . 1	7 3 1 0	4 . 6
	3 8	1 9 9 4 0	7 . 8	1 6 5 6 0	7 . 1	1 3 4 9 0	6 . 5	1 0 7 6 0	5 . 9	8 3 9 0	5 . 3	6 3 4 0	4 . 7
M G M 1 2 5	2 7	2 9 6 1 0	9 . 4	2 4 9 5 0	8 . 6	2 0 7 1 0	7 . 9	1 6 9 1 0	7 . 1	1 3 5 5 0	6 . 4	1 0 6 3 0	5 . 7
	3 2	2 7 6 2 0	9.9	2 3 2 8 0	9 . 1	1 9 2 8 0	8 . 2	1 5 6 8 0	7 . 5	1 2 4 9 0	6 . 7	9 7 2 0	5 . 9
	3 8	2 5 2 6 0	1 0 . 6	2 1 2 4 0	9 . 6	1 7 5 6 0	8 . 7	1 4 2 3 0	7 . 8	1 1 2 8 0	7	8 6 9 0	6 . 2
M G M 1 4 4	2 7	3 2 4 8 0	1 0 . 8	2 7 4 8 0	9 . 9	2 2 9 0 0	9	1 8 7 7 0	8 . 1	1 5 1 2 0	7 . 3	1 1 9 3 0	6 . 5
	3 2	3 0 1 8 0	11.4	2 5 5 3 0	1 0 . 4	2 1 2 5 0	9 . 4	1 7 3 6 0	8 . 5	1 3 9 1 0	7 . 6	1 0 9 0 0	6 . 7
	3 8	2 7 4 8 0	1 2 . 1	2 3 2 3 0	1 0 . 9	1 9 3 0 0	9 . 8	1 5 7 1 0	8 . 8	1 2 6 2 0	7 . 9	9 7 2 0	7
M G M 1 6 0	2 7	3 5 9 5 0	1 2 . 2	3 0 4 4 0	1 1 . 1	2 5 3 5 0	1 0 . 1	2 0 7 8 0	9 . 1	1 6 7 4 0	8 . 2	1 3 2 4 0	7 . 3
	3 2	3 3 5 2 0	12.8	2 8 3 3 0	1 1 . 6	2 3 5 6 0	1 0 . 5	1 9 2 5 0	9 . 5	1 5 4 5 0	8 . 5	1 2 1 2 0	7 . 6
	3 8	3 0 5 5 0	1 3 . 6	2 5 8 1 0	1 2 . 3	2 1 4 4 0	1 1	1 7 4 8 0	9 . 9	1 3 9 5 0	8 . 9	1 0 8 5 0	7 . 9

Models	Dimensions			Mounting dimensions		Congealed machine(mm)
Models	W(mm)	D(mm)	H(mm)	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)
MGM/MGZ 016	700	500	392	660	300	130	647	367	105
MGM/MGZ 018	700	500	392	660	300	130	647	367	105
MGM/MGZ 022	700	500	392	660	300	130	647	367	105
MGM/MGZ 028	700	500	392	660	300	130	647	367	105
MGM/MGZ 032	800	600	442	760	400	145	747	417	75
MGM/MGZ 036	800	600	442	760	400	145	747	417	75
MGM/MGZ 040	800	600	442	760	400	145	747	417	75
MGM/MGZ 050	1000	700	555	960	460	200	937	520	70
MGM/MGZ 064	1000	700	555	960	460	200	937	520	70
MGM/MGZ 080	1000	700	555	960	460	200	937	520	95
MGM/MGZ 100	1200	800	671	1160	500	225	1132	621	100/150
MGM/MGZ 125	1200	800	671	1160	500	225	1132	621	100/150
MGM/MGZ 144	1200	800	671	1160	500	225	1132	621	100/150
MGM/MGZ 160	1200	800	671	1160	500	225	1132	621	100/150

HGM/HGZ 018	700	500	392	660	300	130	647	367	105
HGM/HGZ 022	800	600	442	760	400	145	747	417	75
HGM/HGZ 028	800	600	442	760	400	145	747	417	75
HGM/HGZ 032	800	600	442	760	400	145	747	417	75
HGM 036	800	600	442	760	400	145	747	417	75
HGZ 036	1000	700	555	960	460	200	937	520	70
HGM/HGZ 040	1000	700	555	960	460	200	937	520	70
HGM/HGZ 050	1000	700	555	960	460	200	937	520	95
HGM/HGZ 064	1200	800	671	1160	500	225	1132	621	100/150
HGM/HGZ 080	1200	800	671	1160	500	225	1132	621	100/150
HGM/HGZ 100	1200	800	671	1160	500	225	1132	621	100/150
HGM/HGZ 125	1500	870	975	1460	500	225	1432	925	240
HGM/HGZ 144	1500	870	975	1460	500	225	1432	925	240
HGM/HGZ 160	1500	870	975	1460	500	225	1432	925	240

LGZ 022	700	500	392	660	300	130	647	367	105
LGZ 028	800	600	442	760	400	145	747	417	75
LGZ 040	800	600	442	760	400	145	747	417	75
LGZ 044	1000	700	555	960	460	200	937	520	70
LGZ 050	1000	700	555	960	460	200	937	520	70
LGZ 088	12000	800	671	1160	500	225	1132	621	100/150
LGZ 100	12000	800	671	1160	500	225	1132	621	100/150

CNAU is a shareholding system company specialized in trade of refrigeration compressors, freezing and air conditioning components. We have abundant technology with excellent service working team.

We have various products, now representing and selling more than 10 brands refrigeration products such as L'UNITE HERMETIQUE Compressors, COPELAND Compressors, BITZER Compressors, DANFOSS Controls and Valves, ROLLER Air Cooler, CASTEL Valves etc. And we are general agent for ROLLER in the south of China.

Meanwhile, we have researched and developed our own brand CNAU. Now we produce Relief Safety Valves, Moisture Indicators, Refrigeration Oil Separators, Suction Line Accumulators, Liquid Line Filter Driers, Fans and Motors, Condensers, and Air Coolers with their own brand CNAU. Our products have passed ISO9001-2000 approval, having Quality Certification for Export. They have been exporting to lots of regions and countries such as Australia, USA, Eastern Europe, Southeast Asia, Hong Kong etc.

CNAU has won good word-of-mouth for her great strength, abundant experience and perfect reputation at home and abroad. We promise to provide high quality products with perfect after-sale service.

We hope to create a splendent future with you by our first-class products and pure-hearted services.
