| Prod Model: |
NS-SAC05 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type Of Product: |
Split Wall Air Conditioner |
| Capacity Of AC: |
9000-36000BTU |
| Usage Of AC: |
Room |
| Indoor Set Noise: |
(50/47/44)/57 |
| China Energy Efficiency: |
Level 1 |
| Cooling/Heating For AC: |
Cooling/Heating |
| Power Source Of AC: |
Electrical |
| Power Type Of AC: |
AC |
| Condition Of AC: |
New |
| Type: |
Window Mounted Air Conditioners |
| Usage: |
Room |
| Certification: |
CE |
| Cooling/Heating: |
Cooling/Heating |
| Power Source: |
Electrical |
| Power Type: |
AC |
| Condition: |
New |
| Capacity: |
24000BTU |
| Indoor Machine Noise: |
47/45/43 |
Product Description

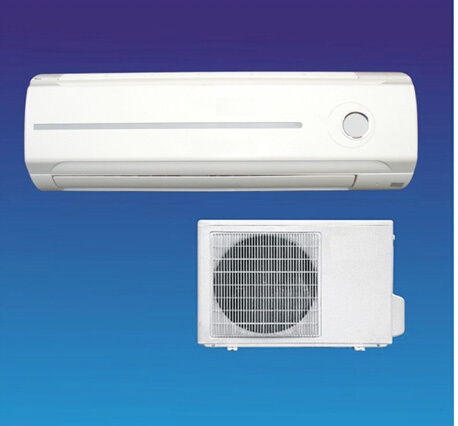

Split Wall Type electric air conditioner 220-240V/50-60HZ
R22 with 3 meter copper pipe
Model number: NS-SAC05
Product details
Cooling/heating Cooling/heating Capacity: 30000BTU
Cooling/heating power input: 2430/2450W
Cooling/heating current input: 12.5/11.3A
EER/COP 9.09/10.2 BTU/W
Noise Level Indoor(Hi/med/Lo)/Outdoor(50/47/44)/57dB(A)
Indoor:
Indoor Air circulation: 1300m3/h
Dimension(L*D*H): 1100*270*370mm
Packing(L*D*H): 1110*280*385 mm
Net/Gross weight: 18/23kg
Outdoor:
Dimension(L*D*H): 960*385*760mm
Packing(L*D*H): 970*395*780mm
Net/Gross weight: 58/62kg
Applicable Area: 35-50m2
Refrigerant piping Liquid side 9.52(3/8")mm/(inch)
Gas side 16(5/8")mm/(inch)
40HQ: 170SETS
| Cooling/heating | Cooling/heating Capacity | 30000BTU |
| Cooling/heating power input | 2430/2450 | W |
| Cooling/heating current input | 12.5/11.3 | A |
| EER/COP | 9.09/10.2 | BTU/w |
| Noise Level | Indoor(Hi/med/Lo)/Outdoor | (50/47/44)/57 | dB(A) |
| Indoor | Indoor Air circulation | 1300 | m3/h |
| Dimension(L*D*H) | 1100*270*370 | mm |
| Packing(L*D*H) | 1110*280*385 | mm |
| Net/Gross weight | 18/23 | kg |
| Outdoor | Dimension(L*D*H) | 960*385*760 | mm |
| Packing(L*D*H) | 970*395*780 | mm |
| Net/Gross weight | 58/62 | kg |
| Applicable Area | 35-50 | m2 |
| Refrigerant piping | Liquid side | 9.52(3/8") | mm/(inch) |
| Gas side | 16(5/8") | mm/(inch) |
| Loading Capacity(40'HQ) | 170 | sets |
