| Prod Model: |
Msr308 |
| Type: |
SD Card |
Product Description

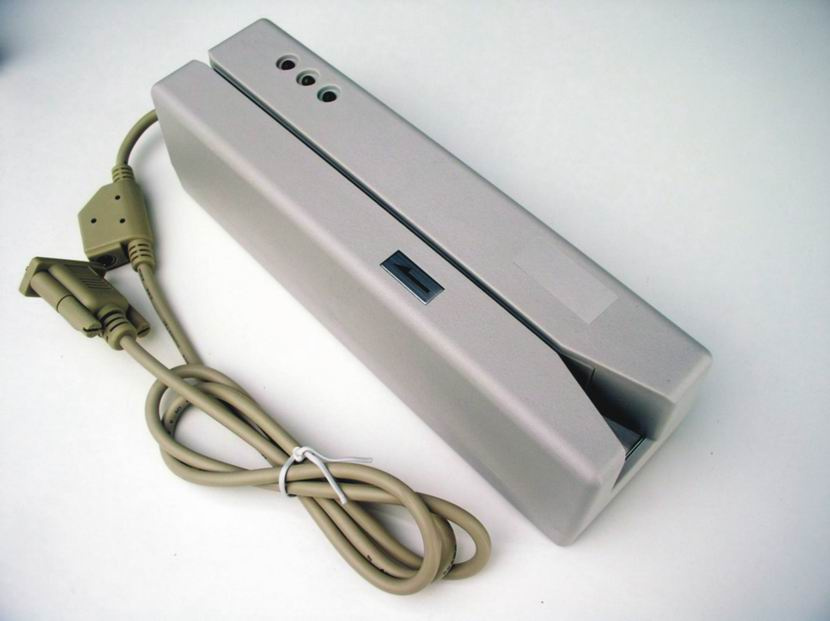

Msr308 is designed to offer a card reading/writing solution for ISO formats. It reads and writes up to 3 tracks of data, decoding, encoding and verifying up to 3 tracks of data simultaneously. Msr308 provides a standard RS-232/USB interface to communicate with host system or other terminal computers.
Msr308 reads and writes magnetic stripe cards with coercivity ranging from 300 through 4000 Oersted. It is intended for use with a personal computer via the RS232 or USB interface.
Msr308 reads and writes data format as specified by ISO 7811/2 through 5 and ANSI 4.16 1983. Any ISO/ANSI standard track format can be read/written from/to any track location (1, 2, or 3). It also offers custom data format and a selectable writing density (75/210 BPI) through the host commands.
Standard package comes equipped with the following:
Msr308 reader/writer hardwired with RS-232 serial cable
Switching power supply (100~240VAC input/+24VDC 2.5A output)
USB adapter cable
User's Manual/Utility/driver CD
Blank magnetic cards (one hi-co and one lo-co)
Features
Reading/Writing magnetic stripe card complied with ISO formats
Both High & Low Coercive (300~4000Oe)
High/Low Coercivity encoding circuitry selectable on screen
Program software for Windows 98/Me/XP
Programming software for various read/write performance
Manual Swipe to read and/or write card with RS-232 /USB output
Writing and verifying data on single, dual, or triple track in one swipe
+24VDC, 2.5A Max external power adapter attached
Dimensions of 210(L) x 60(W) x 65(H) mm
Compatible msr206 and msr505c
