| Prod Model: |
PM606 |
| Markets: |
North America,South America,Southeast Asia |
| Capacity: |
500vdc for 1 Minute |
| Type: |
Card with Track 1/2/3 |
| Interface: |
RS232/USB |
| Card Slots: |
All in 1 & Multi in 1 |
| Installation: |
Internal |
Product Description

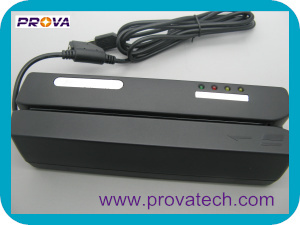

Magnetic card reader with USB interface
Series is designed to offer a card reading/writing Solution
For ISO 7811-6 formats. It is ideal for credit card
Verification and various card related applications. It reads
And writes up to 3 tracks of data, e. G. Decoding or
Encoding and verifying up to 3 tracks of data
Simultaneously. Provide a standard RS-232 interface
To communication with a host system or other terminal
Computers.
Multiple Applications
. Manual Swipe Magnetic Card Reader/Writer PM606
. Series is ideal for credit card verification and
Various card related applications.
Features:
. Reading/writing magnetic stripe cards complies with ISO 7811 / 1~6 formats
. Manual Swipe to read and/or write cards with PC standard RS-232 interface
. Read/Write High and Low Coercive force of magnetic stripe (300~4000Oe)
. 5~35IPS operational swipe speed of writing data
. 5~55IPS operational swipe speed of reading data
. +24VDC+/-10%, 2.0A Max., external power adapter attached
. Writing and verifying data on single, dual, or triple track in one swipe
. Programming software included for various read/write applications
. Program software for DOS and Windows 98/Me
. High/Low Coercivity encoding circuitry selectable on screen
. Programmable leading bit, raw data, DMV/AAMVA, and user defined format
. Compact size
Interconnection
. Cable: 5 feet, dB9
. Pin Assignment: Pin 1 Shield
. Pin 2 TXD (SC-206 data transmit)
. Pin 3 RXD (SC-206 data receive)
. Pin 4 ---
. Pin 5 Circuit ground
. Pin 6 ---
. Pin 7 ---
. Pin 8 ---
. Pin 9 ---
. Default: 9600 baud, 8 bit/character, no parity, 1 stop bit
Specifications:
Operating voltage:
24VDC +/- 5%
Consumption:
Typical 350mA Max. And 600mA plus for each writing track
Power Supply:
External Power Adapter 24 V/2.2A
Communication:
Standard RS232 signal levels
Ripple:
50MVP-p or less
Dielectric strength:
500VDC for 1 minute
Swipe:
Manual, single direction
Read card:
Track 1/2/3
Bit density:
210 bpi 75/210 bpi 210 bpi
Coercive force:
Read/Write 300-4000 Oe Mag. Card
Card thickness:
0.76-1.2mm
Read speed:
STD card Jitter +/- 15% AMP. 60%
5~55IPS 5~50IPS 5~50IPS
Write speed:
5~30IPS
Write jitter:
Interval < +/-10%, Sub-interval < +/-12%
Head life:
Min. 500K swipes for both read/write head
Operation:
0° To 50° C, 15 to 85% humidity
Storage:
-30° To 70° C, 10 to 90% humidity
Weight:
Approx. 1.5kg
Dimensions
210(L) x 62(W) x65(H) mm
