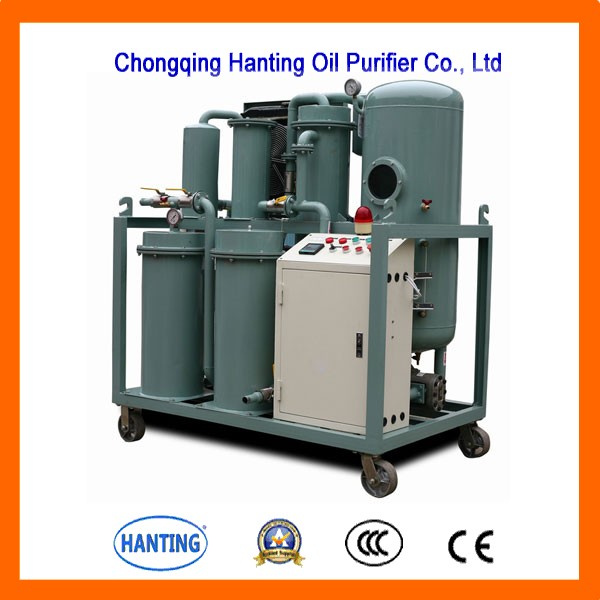

LP Lubricating Oil Purifier with Strong Demulsifying Capability

Prod Model:	LP
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Performance:	Automatic
Structure:	Mobile
Mechanical Principle:	Vacuum
Usage:	Degas, Dewater and Remove Impurities in Oil
Type:	Vacuum Distillation
Capacity:	300-18000L/Hour
Working Principle:	High Vacuum + Polymer Filter
Fuction:	Dewater, Degas, Remove Particles in Oil
Purpose:	Restore Oil Property
Machien Color:	Blue, Grey, Green, Yellow or at User's Option
Application:	Lubricant Oil, Hydraulic Oil, Gear Oil...etc

Product Description

Application:

To remove moisture, gas and particles in lubricant oil, hydraulic oil, gear oil, vacuum pump oil, engine oil...etc, and restore property of insulating oil.

This Oil filter machine is Widely applied to purify various contaminated industrial lubricating oils, such as hydraulic oil, freezing machine oil, solute press oil, gear oil, vacuum pump oil, engine oil and heat treatment oil.

Technical Features of oil filtert Machine:

1. The oil filter could effectively remove the iron flake, dust, impurities, water and organic substance contained in waste oil, as well as organic and inorganic acid, enabling the recovery of performance of lubricant oil.

2. It has a strong demulsifying capability, which could separate the large amount of water from oil and the minimal amount of water from oil.

3. It has a strong impurity removing capability due to special filtration materials applications which increase filtration area and accuracy. Its large area and intensive precision filtration materials can remove the tiny particles in the oil while the backwash function automatically cleans the large amount of dirt in the filter, serving as a cleaning device to the system, thus the seriously contaminated oil can be brought back to a specification under control.

4. Special filter-aid reagent is applied, especially fit to high viscosity lubricant oil, freezing machine oil, hydraulic oil and gear oil.

Items			Unit	LP-10	LP -20	LP -30	LP-50	LP-100	LP -150	LP -200	LP -300
Flow rate			L/min	10	20	30	50	100	150	200	300
VacuumRange			Mpa	-0.06 to -0.095
Working Pressure			Mpa	≤0.4
TemperatureRange				20 to 80
Power Supply				380V 50HZ (or at user's option )
Noise			dB(A)	≤65 to 80
Fault-Free Working Hours			h	≥4000
Continuous Running Hours			h	≥150
Heating Power			Kw	36	40	45	60	90	120	180	240
Total Power			Kw	38	42	47	65	96	127	197	248
Inlet(Outlet) Diameter			mm	Φ25	Φ25	Φ25	Φ32	Φ42	Φ50	Φ50	Φ60
Total weight of equipment			kg	350	380	400	450	550	650	700	750
Dimension		L	mm	1500	1500	1500	1600	1750	1900	1950	2100
		W	mm	1000	1050	1050	1150	1150	1600	1600	1600
		H	mm	1600	1600	1650	1700	1750	1950	1950	2000
Indexes After filtration	demulsifying value		min	≤15/min(GB/F7035)
	Water content		ppm	≤100
	Gas content		%	≤0.1
	cleanliness			≤NAS 6
