Prod Model: |
FT- SS - LP- 470-58/1800-24 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Low Pressure: |
0.4mm SUS304 2b Stainless Steel |
Anti-Corrosion: |
Seamless Welding |
72 Hours Heat Reservation: |
55mm Polyurathane Foam Insulation |
5 Years Warantee: |
15 Years Life |
Max. Capacity: |
>200L |
Structure: |
Compact Type |
Pressure: |
Unpressurized |
Interior Material: |
Stainless Steel |
Collector Components: |
Glass Vacuum Tube |
Composition: |
Collector |
Certification: |
CCC |

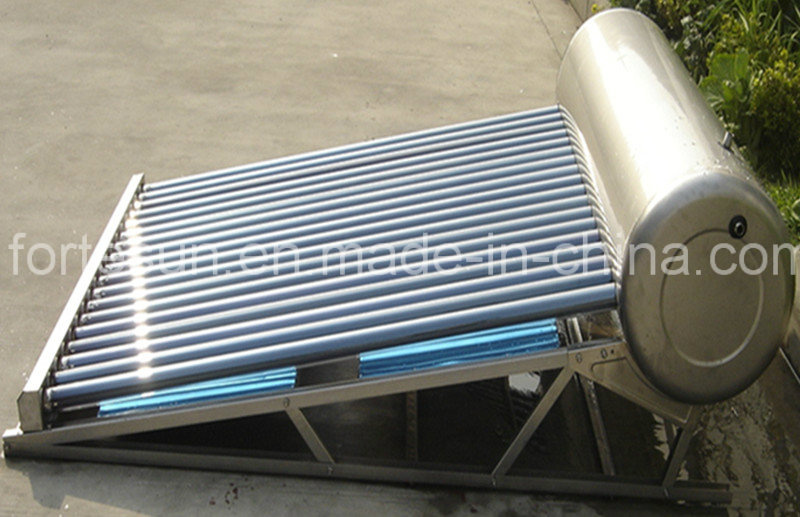

Product Description
Main Features :
Low pressure
High efficient over 93%
Anti-corrosion
Frame 20-40 degree
100% Solar , no extra energy cost
Low Maitainence
Solar Water Heater Specifications:
Vacuum tube Non pressure(stainless steel, color steel )
Inner tank: 0.4mm-1.0mm SUS304 2B food grade stainless steel,automatic seamless welding
non gap, anti-cossorion
Outer tank: 0.4mm SUS304 2B or BA food grade stainless steel or 0.5mm galvanized steel
Frame: 1.2mm stainless steel or 1.5mm galvanized steel or anodized aluminum (for coast area with corrosion problem )
Tubes: High birosiligate glass tube with AL-N-AL coating or AL-N-AL-CU-SS Three target coating
Insulation : 55mm density polyurathane foam , 72 hours heat reservation efficient
100% Solar working , no extra energy cost
Garantee : 5 years Life : 15 years
Magnesium is included in each tank to protect tank from corrosion of Mg 2+ and Ca 2+
Alternatic electric heater : 220V/ 110V , 60/50Hz, 1500W to 3000W
MODEL | Tank capacity (L) | Tube quantity | Absorber area (m2) | Loading quantity 20GP/40HQ (set) |
FT-SS-LP-420--45/1500-15 | 84 | 15 | 0.80 | 63/146 |
FT-SS-LP-420--47/1500-18-C | 100 | 18 | 0.96 | 56/130 |
FT-SS-LP-420--47/1500-20-C | 111 | 20 | 1.06 | 48/111 |
FT-SS-LP-420--47/1500-22-C | 121 | 22 | 1.17 | 15/100 |
FT-SS-LP-420--47/1500-24-C | 133 | 24 | 1.28 | 41/88 |
FT-SS-LP-420--47/1500-25-C | 138 | 25 | 1.33 | 38/84 |
FT-SS-LP-420--47/1500-28-C | 154 | 28 | 1.49 | 35/75 |
FT-SS-LP-420--47/1500-30-C | 166 | 30 | 1.60 | 32/70 |
MODEL | Tank capacity (L) | Tube quantity | Absorber area (m2) | Loading quantity 20GP/40HQ (set) |
FT-SS-LP-500--58/2000-10-C | 100 | 10 | 1 | 55/120 |
FT-SS-LP-500--58/2000-12-C | 120 | 12 | 1.2 | 50/105 |
FT-SS-LP-500--58/2000-15-C | 150 | 15 | 1.5 | 45/100 |
FT-SS-LP-500--58/2000-18-C | 180 | 18 | 1.8 | 40/90 |
FT-SS-LP-500--58/2000-25-C | 250 | 25 | 2.5 | 35/75 |
FT-SS-LP-500--58/2000-28-C | 280 | 28 | 2.8 | 25/60 |
FT-SS-LP-500--58/2000-30-C | 300 | 30 | 3.0 | 22/50 |
FT-CS-LP-470-58/1800-10 | 85 | 10 | 0.82 | 60/140 |
FT-CS-LP-470-58/1800-12 | 100 | 12 | 0.98 | 55/130 |
FT-CS-LP-470-58/1800-15 | 125 | 15 | 1.22 | 50/115 |
FT-CS-LP-470--58/1800-18 | 150 | 18 | 1.46 | 41/95 |
FT-CS-LP-470-58/1800-20 | 167 | 20 | 1.62 | 37/86 |
FT-CS-LP-470-58/1800-22 | 185 | 22 | 1.79 | 35/80 |
FT-CS-LP-470-58/1800-24 | 200 | 24 | 1.96 | 32/74 |
FT-CS-LP-470-58/1800-25 | 210 | 25 | 2.05 | 30/72 |
FT-CS-LP-470-58/1800-28 | 235 | 28 | 2.30 | 28/68 |
FT-CS-LP-470-58/1800-30 | 250 | 30 | 2.47 | 25/58 |
