| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pressure: |
Pressurized |
Product Description
Technical Characteristics

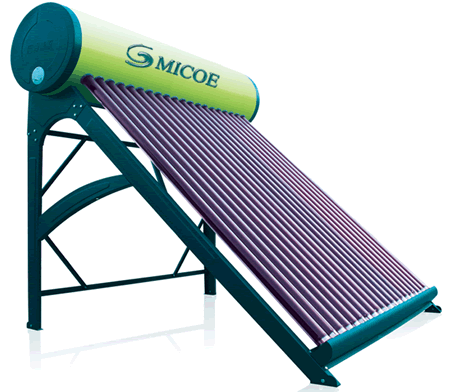

This type uses the all-glass evacuated solar collector tubes as the heat-absorbing element. The high vacuum degree of the clearance between the outer and inner tube reduces the heat emission which is caused by convection and conduction. The layer films (coating) of the all-glass evacuated tubes transfer the sun energy into heat energy. The high absorption and low emittance rate of film is unique.
Using thermosiphon system- Depending on the different density between hot water and cold water, a water flowing cycle is created in the tubes. Hot water flows antomatically upwards while the cold water flows down. The water in the storage tank will be heated from this nautal circulation.
Inner tank: Stainless steel SUS304-0.5mm
Vacuum tube: 58/1800
Outer tank: Painted steel -0.4mm
Fame: Coated galvanized steel-1.5mm
The material of insulation- Polyurethane
Tank diameter: 375mm/475mm
Thickness of insulation: 50mm
Collector Angle: 45°
Micoe, as an international company, is specialized in researching and providing the solar thermal systems for families, factories and industries around the world. Founded in 1999, Micoe has grown to be the most professional company in China solar thermal industry.
Today, with the climate and environment quality deteriorating and the fuel cost increasing due to the fewer and fewer regular energy, the world calls for a new, clean and sustainable energy. The application of Micoe system not only helps in reducing the overall electricity and fuel expenditure but also gives you the opportunity to participate in activities of the environmental protection.
For customers, they could be rest assured the quality of Micoe's products as Micoe supplies standard testing equipments of perfect performance for solar thermal products. Moreover, Micoe has attained many significant certificates, such as ISO 9001, ISO 14001and CCC. Besides, Micoe is one of the only two members of international solar academy in China solar thermal industry.
At present, Micoe's main products are Solar Thermal Systems composed by DMG(Double Vacuum Metal Glass) Solar Heat Collector, Flat Plate Collector, Heat Pipe Collector, as well as compact solar water heater, etc. Micoe's solar thermal systems are widely applied in both residential and commercial projects, providing hot water for swimming pool and space heating systems as well as industrial hot water systems, even for the air-conditioning, and the sea water desalination.
Micoe would like to joint together with customers all over the world to create a cleaner and brighter future for the mankind.
