| Prod Model: |
JJLSS-20 |
| Product: |
Stainless Steel Solar Water Heaters |
| Tube Qty: |
20 |
| Tube Size: |
58*1800mm/47*1500mm |
| Certificate: |
Ce CCC ISO SGS |
| Warranty: |
5 Years |
| Max. Capacity: |
100-200L |
| Structure: |
Compact Type |
| Pressure: |
Unpressurized |
| Interior Material: |
Stainless Steel |
| Collector Components: |
Glass Vacuum Tube |
| Composition: |
Tank Insulation |
| Certification: |
CCC |
Product Description

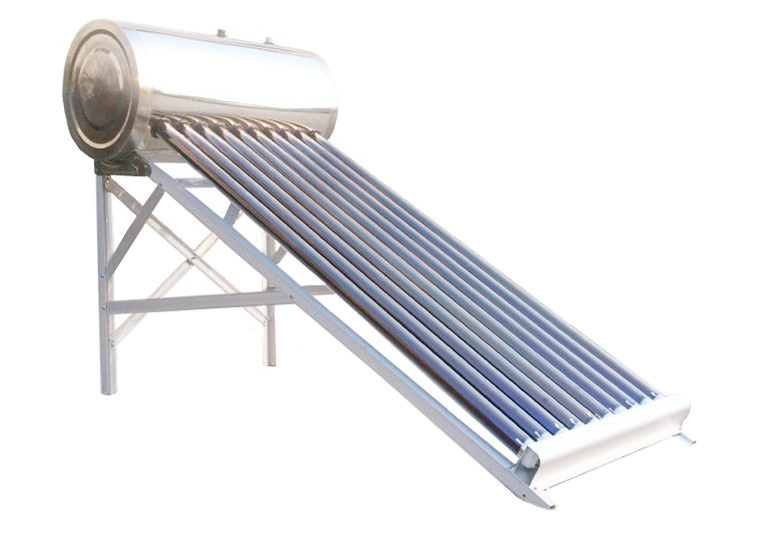

Compact non pressurized solar water heater
Details:
| Descripition | Non-pressure solar water heater |
| Material of out tank | 0.4mm stainless steel |
| Material of inner tank | Food grade 0.4mm SUS304 Stainless Steel |
| Tank insulating layer | 55mm high-density polyurethane foamed |
| Inlet and outlet hole | Male G 1/2, 3/4 |
| Max pressure | 0.05 Mpa |
| Solar collector tube | 3.3 Borosilicate glass with N/Al coating |
| Thickness of glass tube | 1.6mm |
| Vacuum tube tightness | P< =0.005 Pa |
| Absorption | as=0.93-0.96(AM1.5) |
| Emission ratio | 0.04-0.06(80C+-5C) |
| Idle sunning property parameters | Y=220~260m2. C/KW |
| Average heat loss coefficient | ULT=0.6~0.7W/(m2. C) |
| Bracket: | 1.4mm thickness Stainless Steel |
| Structure of tank: | 5 holes for air vent, overflow, water inlet and outlet, electric heater |
| Welding: | Argon arc welding |
| Fastening pieces: | Made of stainless steel screw |
| Tube quantity | 20 tube 58x1, 800mm |
| Tank capacity | 200L |
Accessories:
1. Assistant tank: 5L
2. Controller
3. Electrical heater: 1.5/2/2.5kw
Features:
1. Cheap and reliable solution, Simple structure, Easy installation
2. High efficiency
3. Withstands water pressure no more than 0.1MPa
4. Operated without any power supplying
5. Electric heater can be used as back up in rainy days
6. Hot water can be used directly, or can be used as a pre-heated
