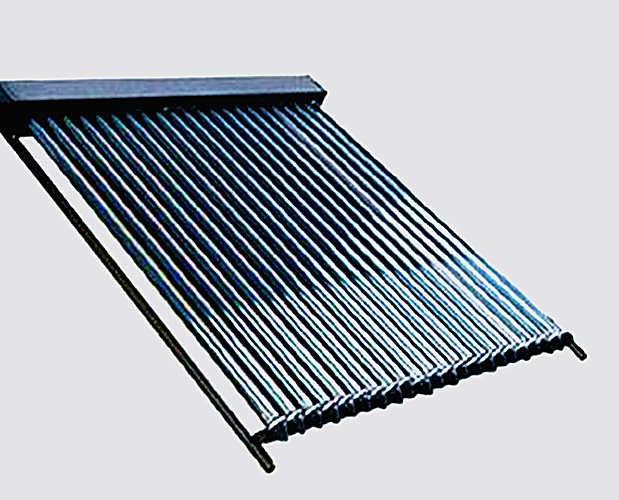

Low Pressure Compact Solar Water Heater

Name: Low Pressure Compact Solar Water Heater
Brand: ec-portal.com
SKU: 759794595
Availability: InStock
Rating: 4.7 (93 reviews)

Price:	US $ 100-130/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	2/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram,Western Union

Send Inquiry

Showroom Product Company Profile

Prod Model:	FT-L-HP-58/1800
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
0.4mm SUS304 Inner Tank:	Life 15 Years
Anti-Corrosion:	Automatic Welding
Stainless Steel:	Warranty 7 Years
Automatic Seamless Welding:	Polyurathan Insulation 36kg/M3
365mm Inner Tank:	470mm Outer Tank
Collector Components:	Glass Vacuum Tube
Pressure:	Unpressurized
Max. Capacity:	>200L
Structure:	Compact Type
Interior Material:	Stainless Steel
Certification:	CCC
Composition:	Tank Insulation

Product Description

Solar Water heater(100L to 300L)
MAIN FEATURES :
HIGH EFFICIENT : OVER 85% HEAT EFFICIENT
DIRECT FLOW :     WATER FLOWS IN THE TUBES
ANTI-CORROSION : INNER TANK , PIPES CONNECTION SUS304 2B GOOD GRADE STAINLESS STEEL , AUTOMATIC WELDING
GARANTEE : 5 YEARS

China high quality Glass vacuum tube Solar Water heater
100% solar working system
Vacuum tube Non pressure(stainless steel, color steel)
Inner tank: 0.4mm-1.0mm SUS304 2B food grade stainless steel
Outer tank: 0.4mm SUS304 2B or BA food grade stainless steel or 0.5mm galvanized steel
Frame: 1.2mm stainless steel or 1.5mm galvanized steel or anodized aluminum (for coast area with corrosion problem)
Tubes: High birosiligate glass tube with AL-N-AL coating or AL-N-AL-CU-SS Three target coating
Suggesteds parts: Magnesium 1 PC, TP valve 1 PC, Electric heating 1 PC automatic valve 1 PC
MODEL Tank capacity
(L) Tube quantity Absorber area
(m2) Loading quantity

                                                                      20GP/40HQ(set)
FT-SS-LP-420-45/1500-15 84 15 0.80 63/146
FT-SS-LP-420--47/1500-18-C 100 18 0.96 56/130
FT-SS-LP-420-47/1500-20-C 111 20 1.06 48/111
FT-SS-LP-420-47/1500-22-C 121 22 1.17 15/100
FT-SS-LP-420-47/1500-24-C 133 24 1.28 41/88
FT-SS-LP-420-47/1500-25-C 138 25 1.33 38/84
FT-SS-LP-420-47/1500-28-C 154 28 1.49 35/75
                                   MODEL Tank capacity
(L) Tube quantity Absorber area
(m2) Loading quantity
20GP/40HQ(set)
FT-SS-LP-470-45/1500-15 113 15 0.80 63/146
FT-SS-LP-470--47/1500-18 139 18 0.96 56/130
FT-SS-LP-470-47/1500-20 155 20 1.06 48/111
FT-SS-LP-470-47/1500-22 170 22 1.17 45/100
FT-SS-LP-470-47/1500-24 186 24 1.28 41/95
FT-SS-LP-470-47/1500-25 194 25 1.33 40/93
FT-SS-LP-470-47/1500-28 218 28 1.49 38/88
FT-SS-LP-470-45/1500-30 234 30 1.60 34/79.

MODEL	Tank capacity (L)	Tube quantity	Absorber area (m 2 )	Loading quantity 20GP/40HQ (set)
FT-SS-LP-470--58/1800-10	85	10	0.82	60/140
FT-SS-LP-470--58/1800-12	100	12	0.98	55/130
FT-SS-LP-470--58/1800-15	125	15	1.22	50/115
FT-SS-LP-470--58/1800-18	150	18	1.46	41/95
FT-SS-LP-470--58/1800-20	167	20	1.62	37/86
FT-SS-LP-470--58/1800-22	185	22	1.79	35/80
FT-SS-LP-470--58/1800-24-C	200	24	1.96	32/74
FT-SS-LP-470--58/1800-25-C	210	25	2.05	30/72
FT-SS-LP-470--58/1800-28-C	235	28	2.30	28/68
FT-SS-LP-470--58/1800-30-C	250	30	2.47	25/58

OUR MISSION:

SUPPLY YOU MOST COMPORTABLE & ECONOMIC&INTELLIGENT SOLUTION FOR DOMESTIC AND PROJECT WATER HEATING

OUTLINE:

The Forte Group is one of the leading international manufacturers of water heating systems. Founded in 2003, our company maintains a staff of over 120 employees and generates roughly 50 millions USD in annual turnover.

Forte is an internationally orientated company. With 90% of total Forte value exports to Germany, Italy, Spain, Mexico, Vietnam, Mauritius, Korea and other 80 countries.

Comprehensive product range for all types and areas of application

Whether for single or two-family homes, large residential complexes, commercial and industrial buildings or local heating networks, Forte has the right system solution with Solar heating

Forte's comprehensive product portfolio includes single domestic vacuum tube and flat plate solar water heaters from 100L to 300L, 500L and even 750L and 1000L, but also big project systems for schools hospitals and swimming pools

Comprehensive range of services

Forte offers its trade partners a comprehensive range of services to considerably simplify their daily work. The diverse range includes assistance from its Technical Service department, demand-driven software for instance for planning heating systems, support in the form of advertising and sales promotions, and a user-friendly information and ordering system available around the clock on the internet.

Our Advantage

Technical support: Experience of over 10 years experience in designing, researching, producing and exporting solar water heating systems, always supply you customer oriented solutions.

QC&QA

All main parts 100% checked and tested before delivery

Every water tnk, manifold loop, were strictly tested against leakage and corrosion

After sale service

Upon delivery, main parts will carry a trackable number, customer only need to report convincable proofs so that we will carry the service

Guarantee priod:

All the tanks we delivered will have 7 years guarantee period

OUR ADVANTAGE

TECHNICAL SUPPORT: EXPERIENCE OF MORE THAN 10 YEARS DESIGNING, RESEARCHING, PRODUCING AND EXPORTING OF WATER HEATING SYSTEMS, ALWAYS SUPPLY YOU CUSTOMER ORIENTED HEATING SOLUTIONS

QC & QA

ALL THE MAIN PARTS 100% TESTED AND CHECKED.

EVERY WATER TANK, MANIFOLD LOOP, WERE STRICTLY TESTED AGAINST LEAKAGE AND CORROSION

AFTER SALE SERVICE

UPON DELIVERY, MAIN PARTS WILL CARRY A TRACKABLE NUMBER, CUSTOMER ONLY NEED TO REPORT CONVINCIBLE PROOFS SO THAT WE WILL CARRY THE SERVICE

GARANTEE PERIOD:

ALL THE TANKS WILL HAVE A 7 YEARS GARANTEE PERIOD

We would be pleased to work with all the distributers on a win-win base to grow up together.

With Forte Energy, we go for further journey!
