A. Brightness ≥ 8000 nit.
B. IP65 scale, 100% water proof.
C. High resolution, ideal for outdoor advertising with short viewing distance.
D. DIP 346 LED high brightness LED lamp, high reliability and low lumens depreciation speed.
Advertising P8 Outdoor Full Color LED Large Digital Display
Outdoor Advertising LED Sign can be mounted on wall or pillar, P16 is 3906 pixels/sqm. It's one of the most widely used LED sign for outdoor advertising application due to its high brightness, reliable quality and economic cost.
Application:

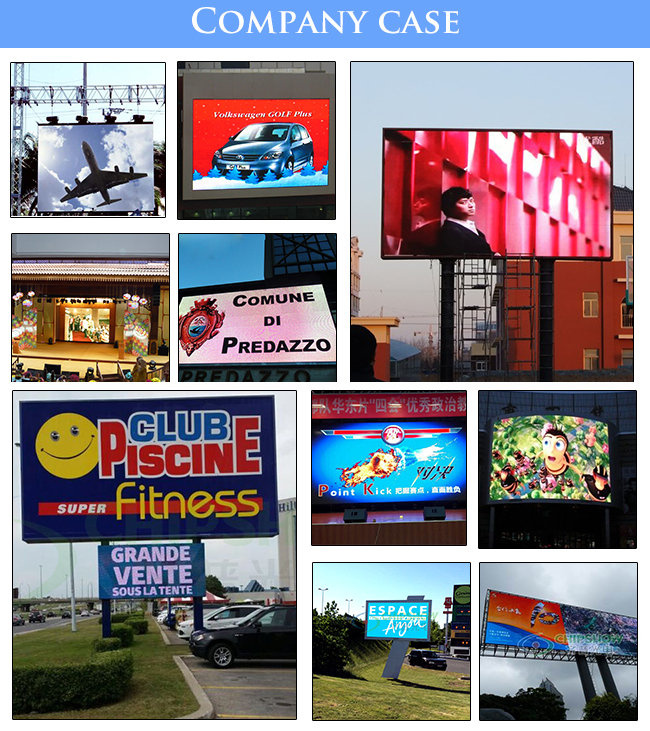

Can be used in outdoor environment such as airport, highway, cultural or relax square, commercial walking street, residential sub-district, downtown, with various real-time signal sources and the speciality of waterproof, dustproof, staticproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program etc.
Features:
1) Waterproof, IP67 front and IP65 at the rear side.
2) High and adjustable brightness can meet the demands of the changing requirement of Customer in different environments.
3) No mosaic due to excellent flatness and nice uniformity of light-emitting.
4) Wide viewing angles and the horizontal angle can reach 110° The images effect will not Change largely in the range.
5) Aluminum cabinet can be used for lower weight.
6) Single-lamp maintenance with low cost.
7) Good heat dissipation capability because of the unique design of vent fan (liking shutter).
8) Environmental-friendly and energy-saving.
Item | Module Specification Parameter |
Pixel type | Real full color |
Pixel color | RGB |
Module size | 320*320mm |
Pixel led | SMD3528 |
Resolution rate | 40*40 |
Driving way | 1/8 |
Driving IC | SUM2016 |
Working voltage | DC5V |
Power | 40W |
Working temperature | -10 - +40 |
Item | Cabinet Specification |
Material | Iron/Steel |
Color | Black |
Size | 640*640mm |
Resolution rate | 80*80 |
Module quantity | 2*2 |
Density | 15625dots/m2 |
White balance luminance | 1000-1200cd/m2 |
Color temperature | 6500 |
Horizontal view angel | 120 |
Vertical view angel | 120 |
Protection grade | Before/after: IP43/IP43 |
Non-Flatness | < 1mm |
Module interval | < 1mm |
Weight | 17kg |
Maximal power/m2 | 500W/m2 |
Frame frequency | ≥ 60Hz/s |
Refresh frequency | 1000-1500Hz |
Gray grade | 1073741824 |
Luminance adjusted | 256 grade by auto-optic/color & 8 grade by hand |
Input signal | RF, S-video, RGB, RGBHV, YUV, YC& Composition, etc |
Control system | PCTV non-linear editing card + DVI display card + main controller card + optic fiber transmisson(Optional) |
MTBF | > 5000h |
Life-span | > 100000h |
Speckles rate | < 0.0001 |
