| Prod Model: |
SMS1020A2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Content: |
10 Numbers +1 Decimal Point +1 DOS Prompts |
| External Size: |
42*34 Mm |
| Type: |
LCM |
| Usage: |
Small-sized LCM |
| Display Technology: |
Used in The Odograph |
| Viewing Angle: |
6 O'clock View Angle |
Product Description

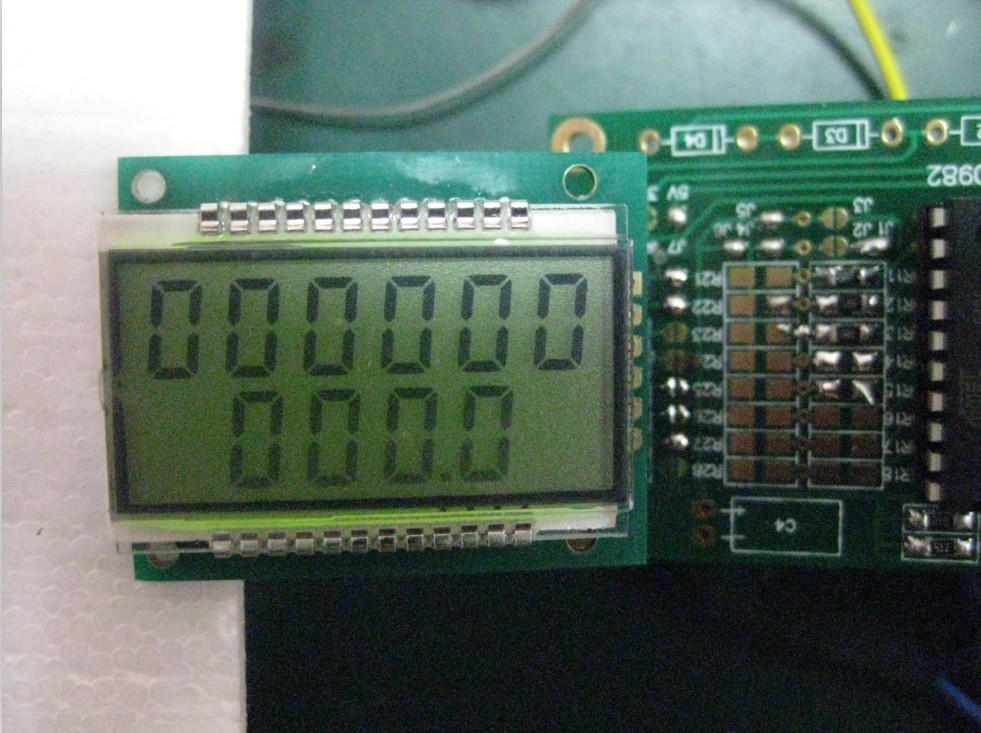

Little LCD display used in odograph SMS1020A2
Main technical data;
Display capacity: 10 numbers +1 decimal point +1 DOS prompts
Operation voltage: 4.8~5.2V
Operation voltage of backlight: 8.0V
Static current: 2mA(5.0V)
Static current of backlight: 30mA
Character high: 6.0mm
Environment relative humidity: <85%
View angle: 6: 00
Operation temperature: -20~+70° C
Display pattern: Transflective(anode display)
Storage temperature: -30~+80° C
Welcome customers to sample custom production.
Factory direct sales LCD display in varietydisplay color and size.
We can also design and manufacture the LCD panel of TN, STN,
FSTN, color STN and some other special types, as well as the LCD
Module of COB, COF, TAB and COG.
Changsha Sunman Electronics Co., Ltd was established in 1995, specializes in the Design, Manufacture and Sale of LCD(Liquid Crystal Display), LCM(Liquid Crystal Display Module). It is a company approved as high-tech enterprise by Hunan Science and Technology Bureau and a star company in Changsha High and New Technology Industrial Development Zone. It is also one of the first ten members as Hunan university students start-up enterprise century activity in high-tech development zone, launched by Changsha High and New Technology Industrial Development Zone and Hunan university. There are a large number of self-developed standard LCD and LCM available in our company. Customers can use them directly. Also, we can customize LCD modules according to customer's request. For example, re-design the display content, the size of the PCB and the MCU solution of measure, control and display.
