| Prod Model: |
CFS |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Viscosity: |
1-500 |
| Housing Material: |
304,316L,CS |
| Design Pressure: |
0.6, 1.0MPa |
| Filter Cartridge Length: |
10,20,30,40 ,60 |
| Usage: |
Chemical Industry |
| Motive Force: |
Pressure |
| Type: |
Liquid Cartridge Filter |
| Certification: |
ISO9000 |
Product Description

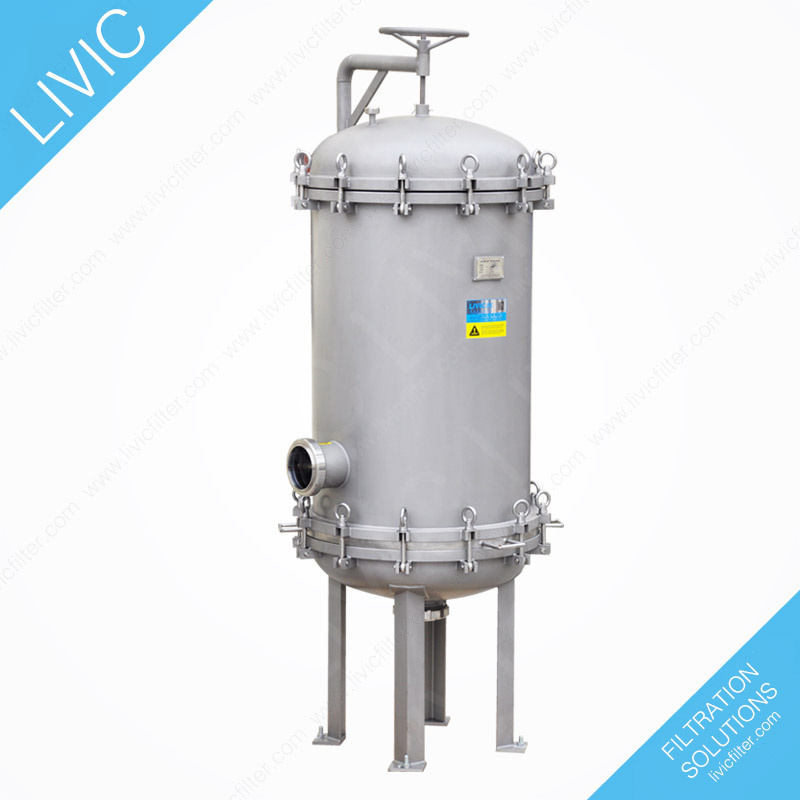

CF series Cartridge Filter (CF filter for short), with filter cartridges as filter elements, is capable of liquid precision filtration. It can remove tiny impurities and bacterium. CF filter has the advantages of high filtration rating and high dirt holding capacity.It has various high performance filter cartridges developed by LIVIC, and can meet various conventional and special filtering requirements. The following 4 sub-series are available:
CFK SERIES filter, is an economical filter, it has tri-clamp lid and is easy to operate, suitable for conventional filtration of low flowrate and low pressure.
Series CFV filter, is a type of high-end filter, competent to the most demanding applications. It's reliable and durable with flange sealing lid and has quick open design and assistant davit.
Series CFM filter, with MaxSEP series cartridge, especially designed for applications of high flowrate, high filtration rating and high dirt holding capacity. It has both horizontal and vertical design, high flowrate, compact structure and easy cartridge replacement. Other design features are the same as the CFV series.
Main Specification
Optional filter cartridge: MaxSEP, PolySEP, PesSEP, PtSEP, MeshSEP, FiberSEP, PorSEP, V-SEP, FineSEP, MicroSEP
Rating (μm): 0.05-200
Cartridge size (inch): 10,20,30,40
Capacity of cartridge: 1-200
Housing Material: 304,316L,CS
Applicable Viscosity (cp): 1-500
Design pressure (MPa): 0.6, 1.0
Applicable industries and liquid
Applicable industries: Fine chemicals, water treatment systems, plup and paper, automobile manufacturing, petro-chemical, machining, coatings, electronics etc.
Applicable liquids: Wide applicability, all liquids contained micro-impurities.
Filtration function: Remove small particles, purify liquids, protection of critical equipment
Filtration type: One-time intercept filtering, the filter bag need to be replaced manually regularly
Packaging & Delivery
Packaging Details:Delivery Detail:
| Plywood Case: professinal packing to ensure no break down of the products during long distance delivery. |
| About 40 days, according to the order quantity |
Specifications
Pleated Cartridge Filter
1.For high precision filtration
2.High filtration ratings
3. Meet different needs for flow capabili
CF Cartridge Filter
CF Series Cartridge Filter (CF Filter for short), with filter cartridges as filter elements, is capable of liquid precision filtration. It can remove tiny impurities and bacterium. CF filter has the advantages of high filtration rating and high dirt holding capacity.It has various high performance filter cartridges developed by LIVIC, and can meet various conventional and special filtering requirements. The following 4 sub-series are available:
K Series CF filter, is an economical filter, it has tri-clamp lid and is easy to operate, suitable for conventional filtration of low flowrate and low pressure.
V Series CF filter, is a type of high-end filter, competent to the most demanding applications. It's reliable and durable with flange sealing lid and has quick open design and assistant davit.
M Series CF filter, with MaxSEP series cartridge, especially designed for applications of high flowrate, high filtration rating and high dirt holding capacity. It has both horizontal and vertical design, high flowrate, compact structure and easy cartridge replacement. Other design features are the same as the V series.
P Series CF filter, with PowerSEP series cartridge, especially designed for applications of high flowrate, high filtration rating and high dirt holding capacity. Its design features are the same as the M series.
For more information on LIVIC products and company,please check :www.livicfilter.com
LIVIC is the China leading comprehensive industrial filtration company with over 10 years of industrial filtration experience. We are specialized at self-cleaning filtration technologies and process filtration technologies. We serve the industries such as petro-chemical, fine chemical, water treatment, auto industry, marine, food and beverage, metal working, etc...Our various self-cleaning filtration technologies apply to the raw waters circulating cooling waters, oils, chemicals and polymers.
We supply high standard filtration products and offer professional services to many international large companies and China industry-leading companies. We are experienced in the project cooperation with engineering companies. We can design and manufacture filtration systems per international universal and specific industry standards and upon the customer´ S filtration process requirement. We deliver worldclass quality filtration products. If you request filtration products with higher standard performance, quality, safety and service, LIVIC can be your trust-worth partner.
Our enginering compay customers include Worley Parsons, DURR, Lurgi, Tetrapak, Bayer Technology Service, Foster Wheeler, SEI(Sinopec Engineering Incorporation), HUALU, Desmet Ballestra, ABB, etc...Our end user customers include BASF, Sinopec, Wacker, CNOOC, Akzo Nobel, Invista, DSM, LANXESS, Honeywell, Nalco, etc...LIVIC´ S exellent reputation, high performance filtration products and professional design capaility and service win wide appreciation.

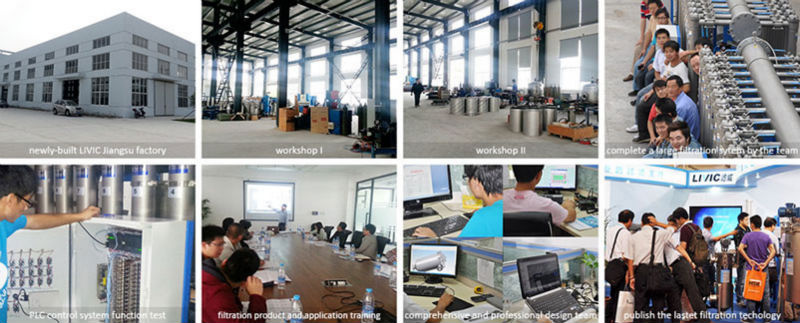

LIVIC was set up in 2009 with 10 million CNY registered capital and has about 110 employees. LIVIC´ S marketing center and technology center are located in Shanghai. We have two manufacturing bases, one in Shanghai and the other one in Jiangsu Province. LIVIC has passed the ISO9001: 2008 certification, comprehensively implements ISO9001 quality management system and the ASME/GB150 design, fabrication and inspection standard, produces filter equipments and precision elements according to the standardized process. LIVIC consistantly invents the research and development of filtration technology and gets a number of patents. Due to the excellent market transformation of R&D achievements, LIVIC was approved as Shanghai High-tech Enterprise by Shanghai Government in November, 2015.
LIVIC is a professional filtration company with the globalized business and the sales and service network around the world. We have branches in China main cities such as Beijing, Guangzhou, Chengdu, Xi´ An. We also have agencies in Belgium, Norway, USA, Canada, Korea, Indonesia, Australia, South Africa etc. Our network will respond to your request quickly and offer you the local filtration support service.
