| Prod Model: |
CSW4301 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
4.3inch |
| Sensor: |
1/3 CMOS |
| Tvl: |
700tvl |
| Brand: |
Brvision |
| Market Range: |
Global |
| Interface: |
RCA |
| Definition: |
420TVL |
| Chip: |
CCD |
| Waterproof Grade: |
IP68 |
| Probe Number: |
1 |

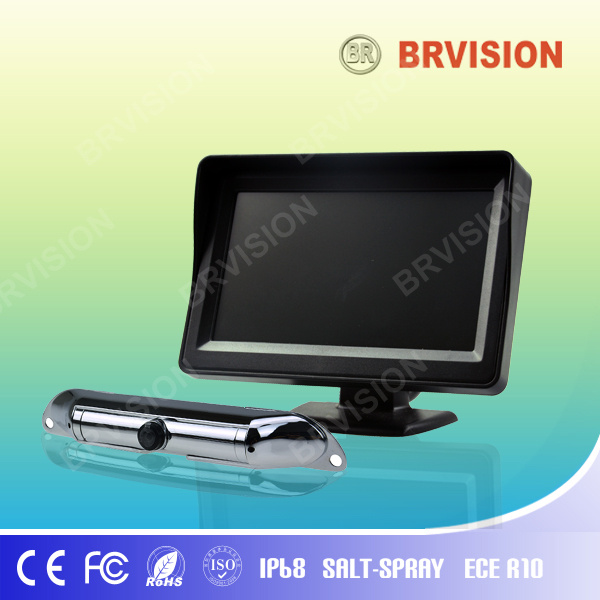

Product Description
Monitor Specification:
-4.3" digital Monitor
- 1camera input
-12-24V power input
Camera Specification:.
- 1/3 Sony CCD, 700TVL
- Night vision
- Audio input
- 120 degree view angle
- Heater function(Optional)
- 24V power input
| Size | 4.3inch |
| Resolution | 800*480*RGB |
| System | PAL/NTSC automatically |
| Audio and video | 4video/1audio input Quad images,2/3/4 image optional |
| OSD menu | Language,brightness, contrast, trigger priority delay display setting |
| Luminance | 250cd/SM |
| Working temperature | -20°C-+70°C |
| Storage temperature | -30°C-+80°C |
| Voltage | 12V-24V DC |
| Connector | 4pin or RCA |
| Accessories | user manual/remote controller/powr calbe/sunshade/scre
|
Description for camera:
Butterfly car camera suitable for rearview
Image sensor PC1030 420TV lines in default
Other kinds of image sensor optional :PC3030 480TV lines CMOS, MT9V136 480TV lines analog CCD (price different)
Camera degree:170 degree
TV system:PAL/NTSC (PAL in default)
Specification for camera:
Image device: PC1030
TV system: PAL/NTSC
Resolution: 420 TV lines
Effective pixels: 648*488 pixels
Sensing area: 4.08 mm *3.12 mm
Shutter speed: 1/60-1/5000
Video output: 1.0 VP-P, 75 OHM
Gamma consumption: 0.45
White balance: Auto
Scanning system: 2: 1 interlace
Lens angle: 170 degree
Waterproof: IP67/68
Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)
Power supply: DC 12V
BRVISION TECHNOLOGY Co., Ltd is a professional Mobile Electronics and Surveillance developer & supplier in China. We specializing in OEM and ODM vehicle rear view system and surveillance products
Our vehicle system department products include the heavy duty and car reversing system, TFT LCD monitor, License plate camera, wireless Module, DVR recorder camera and etc.
Our surveillance system department products line have PTZ camera, dome camera, box camera, and so on.
It is our mission statement to bring convenience to your life while protecting your safety and property. Above all, BRVISION strives to offer products for all our customer's unique requirements both in China and on the international market. Currently, our products are exported to North America, Europe, the Middle East and all over Asia.
BRVISION has decades of experience of safety and surveillance in the international market place. We can quickly respond to your feedback and are well equipped to meet any and all your requirements.
We specialize in:
. Vehicle Rearview Camera(CCD or CMOS)
. Vehicle TFT LCD Monitor
. Wireless Transmitter and Receiver
. Surveillance Camera
. OEM and ODM Project
BRVISION Certificats: CE, FCC, Emark, ISO9001-2008
