| Prod Model: |
F3 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Bluetooth Version: |
4.1 |
| Wireless Range: |
10m |
| New Function: |
Wireless Charging |
| Speaker: |
5W X 1 |
| Battery: |
Built in |
| Thd: |
<0.5 |
| Product N.W: |
925g |
| Inner Packing: |
Carton Box |
| Magnetic Base Diameter: |
150mm |
| Magnetic Base Height: |
25mm |
| Type: |
Bluetooth Wireless Speaker |
| Amplification Type: |
Active |
| Speaker Material: |
Plastic |
| Usage: |
Karaoke |
| Interface: |
ATAPI/EIDE |
| Sound Channel: |
2.0 |
| SNR: |
70-80dB |
| Color: |
White |
| Compatible Product: |
Universal |
| Special Function: |
Magnetic Levitating |
Product Description

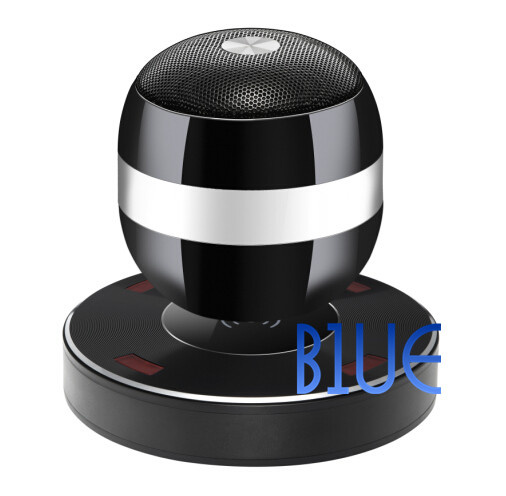

2016 Levitating Wireless Bluetooth Speaker with NFC Function
Specification:
Item name | Magnetic Levitation Bluetooth speakers |
| Bluetooth version | Bluetooh4.1 |
| Built in battery | 1500mAh + Speaker: 5W |
| SNR-Signal-noise ratio | ≥85dB |
| Distortion | <0.05% |
| Frequency response | 40Hz ~ 20KHz |
| Working time | Up to 8-10hours(depends on volume) |
| Charging time | About 2-3hours |
| Sound | Special sound guide cone designed to increase surround 3D Stereo |
| Working range | Up to 10 meters |
| Working voltage | 3.7V |
| Charge Voltage | Speaker ball 5V 1A, Base 12V 1A |
| Speaker orb dimensions | 85mm diameter |
| Base dimensions | 150mm Diameter, 25mm Height |
| G/W | 150mm*25mm/Ball 280g+Plate Weight: 648g |
Accessories:
1 X Speaker(ball and ball base)
1 X AUX cable
1 X USB charging cable
How to use the magnetic floating bluetooth speaker
1.Press and hold the speaker power key"C"for 3 second to turn on the speaker orb.
2.Search bluetooth device on smart phone / tablet, when find bluetooth device "CXF01" , pair smart phone/tablet with this device.If smart phone/ Tablet are with NFC function, put the smart phone/ tablet close to the NFC point "F" on the top of speaker for 3second. Bluetooth speaker will pair with smart phone/tablet automatically.
3. Play music on smart phone/tablet, music comes out from the bluetooth speaker orb.
4.Press and hold the bluetooth pair key "D" for 3 second, the speaker will stop pairing with current smart phone/ tablet, and be waiting for new device to pair.
5.Connect charging cable with USB port on the base and speaker orb for battery charging. And this also can work as for "reset" function for speaker orb. When battery charging, can turn on the power and play during battery charging.
How to float the speaker orb
1.Please place the base on an absolutely horizontal surface. If the surface is not flat and horizontal, the speaker orb can not levitate normally
2.Connect the power adapter to the base power port "A"
3.Turn on the speaker orb and pair with smart phone/tablet.
4.Hold the orb with your two hands and put your fingers under the orb to hold tight the orb, move the orb vertically downwards the center of the base.
5.Make the orb approach the center of the base slowly, and please move it towards left and right, or front and back to try to get the levitating point.
6.When you feel a strong force which is holding the orb from the base, this position is the levitation place. At this moment, the four "Levitating position Indicator Light G" all turn on and without flashing. Release the orb gently.
7.If you cannot success to posit the orb 3 times, you can take away the speaker orb from base and take off the adapter from the base for few second, and then re-connect adapter with the base to try again positing.
How to turn off the magnetic floating bluetooth speaker
1.Take away the speaker orb from the base, press and hold the speaker power key "C" for 5 second. The bluetooth speaker turns off.
2.Take away the adapter from the base to shut down the base.
3.Keep the speaker orb and base separated, do not stick together.
Shenzhen 1Blue Technology Co., Ltd is a set design, development, production, and sales of Bluetooth Speakers into an integrated enterprise.
We have strong R&D and design teams and strict quality control system, we are experienced in OEM and ODM project. We are committed to supplying you with the highest quality bluetooth speakers at the most competitive prices.
Through our unremitting efforts and progress, now, we have 2 our owns brands: 1BLUE, FUNYE. Our products got high reputation in abroad owe to reliability quality and creative design. Our designs gained a lot of famous awards in these years. "1Blue" has been known well in national and international.
Meanwhile, we also seriously care about the the environment and promise that where possible all of bluetooth speakers are made from recycle materials. All of our speakers passed the Germany TUV strict testing, compliant with CE and RoHS.
Welcome new and old customers inquiries, we will try our best to serve you!
