| Prod Model: |
DHOF-PH20 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Certification: |
RoHS |
| Pixel Pitch: |
20mm |
| Display Function: |
Video Display |
| Scanning Mode: |
1/4 Scan |
| Average Power Consumption: |
350W / m² |
| Pixel Density: |
2500 |
Product Description

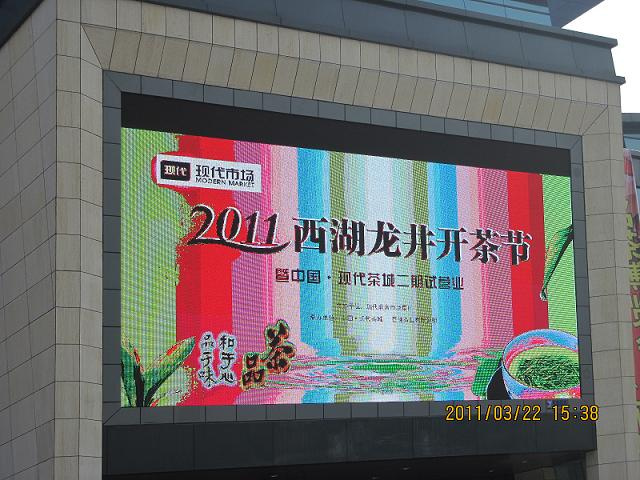

LED video display, as well as video display, outdoor display, LED display, LED giant display, Outdoor LED display, outdoor LED screen, advertising display, LED display screen, are used in outdoor environment such as airport, plaza, highway, commercial walking street, residential sub-district. With various real-time signal sources and the speciality of waterproof, dustproof, staticproof, The purpose of outdoor full color LED display is to propagandize outdoor advertising or play the important news or events or TV program etc.
Technical Parameter:
P20 full color display (Real pixel)
1. LED lamp
Encapsulation Form: R: DIP 546 G: DIP 546 B: DIP 546
Brightness: R: 600mcd G: 1800mcd B: 400mcd
2. LED module
Pixel pitch: 20mm
Pixel configuration: 1R1G1B
Resolution: 16dots(W)*8dots(H)
Size: 320mm(W)*160mm(H)
Weight: 0.8KG
3. LED Cabinet (Standard)
Resolution: 64dots(W)*48dots(H)
Size: 1280mm(W)*960mm(H)*180mm(T)
Module quantity: 4PCS(W)*6PCS(H)
4. LED display
Pixel density: 2500dots/m2
Brightness: 7500CD/m2
Driving mode: Constant current
Scanning mode: Static
Max power consumption: 650W
Average power consumption: 250W
Grey grade: 16bits
Colors: 1024 levels per color
Frame frequency: 60Hz
Refresh frequency: 400Hz
Brightness adjustment: 256 levels automatic
Color temperature: 6500K~9300K adjustable
Environmental temperature: Storing: -35deg~+85deg working: -20deg~+50deg
Input voltage: AC 110V/220V+-10%
Horizontal view angle: 120deg;
Vertical view angle: 60deg;
Ingress protection: Front: IP65 Rear: IP43
File format supported: TXT, JPEG, MPEG, BMP, SWF, GIF, DAT etc.
Hub type: HUB12/08/40
Best view distance: 20m~200m
Control distance: LAN wire: 100m multi-model fiber: 500m single-model fiber: 15km
MTBF: 10, 000 hours
Life span: 100, 000 hours
