| Prod Model: |
P10 HR Outdoor SMD LED Display |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model No: |
P10 Surface Mounted |
| Module Size: |
320*160mm |
| Module Thickness: |
2.5cm |
| Lifespan: |
100,000hours |
| Driving Method: |
Constant Current Driving |
| Module Weight: |
0.55kg |
| Delivery Time: |
7-10 Working Days |
| Waranty: |
24 Months |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP67 |
| Pixel Pitch: |
10mm |
| Display Function: |
Video Display |
| Pixel Density: |
10000 dot / m² |
| Scanning Mode: |
1/4 Scan |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
FCC, EMC, ISO9001: 2008 |
| Pixel Configuration: |
P10 Surface Mounted Module |
| Average Power Consumption: |
400W/H |
Product Description
Product Description
P10 Outdoor full- Color LED display
This Outdoor LED Screen's Key benefits:
P10 outdoor LED Display uses state-of-art LED, which has the brightness for indoor and outdoor application.
The LED display has the advantage of excellent flatness, super uniform color and brightness.
The LED Display has long viewing distance.
The outdoor LED display cabinet of the rental LED display use aluminum which make the weight very light and easy to assemble.
Utra-high refresh rate, support the camera recorder, to ensure a clear picture quality
Quick editing of assembly ,disassembly system, saving unloading time
Application :

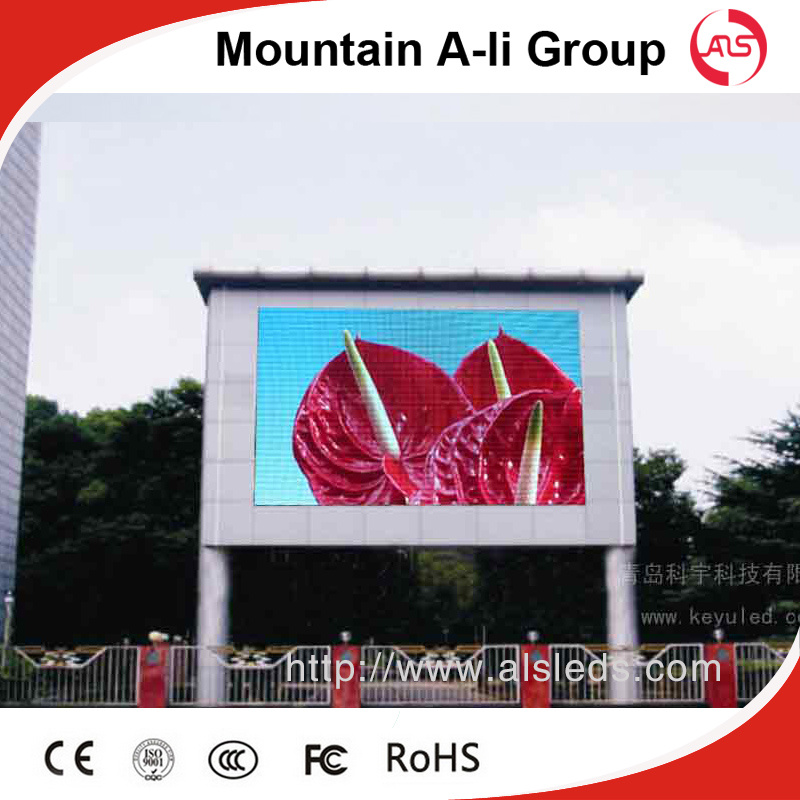

P10 Outdoor LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, banking, railway stations the stock market and other trading market etc. Place, with the speciality of dampproof, windproof, sunproof, staticproof, antifreezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
Our servives
If you have any questions about our product, you can inform us by mail or call, and we will reply you in 24 hours when we get you E-mail or call, and offer you a good solution for your problem.
The specifications of modules |
|
| Items | Parameter |
| Product Model | P10 surface mounted Module |
| Module size | 320mm*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Module resolution | 32dots(W)*16dots(H) |
| Module maximum power consumption | 20W |
| Module Thickness | 25CM |
| Module Weight | 0.55kg |
| Driving method | Constant Current Driving |
| Scanning method | 1/4 scan |
| Interface | HUB75 |
| Brightness | ≥5000cd/m2 |
| The specifications of cabinets |
|
| Cabinet size | 960mm*960mm |
| Module quantity | 18pcs |
| Power supply | 5V/40A 5V/60A |
| Cabinet resolution | 96*96dots |
| Optimal viewing distance | 10M~100M |
| Optimal viewing angle | 160°(W) 120°(H) |
| RHWorking temperature | (Work :-20°C~+60°C) |
| System operating humility | 10%-95% |
| The specifications of power supplier |
|
| Operating Voltage | AC220V±10% |
| Average power consumption | 400W/H |
| Maximum power consumption | ≤600W/m2 |
| Electric current | ≤20mA(single LED) |
| The specifications of control card |
| Control Panels | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control model | Synchronization with PC |
| The specifications of the main technical parameters |
|
| Driving device | Constant Current Driving |
| Refresh rate | ≥600HZ |
| Grey scale | RGB Each 256, can display 16.7M colors) |
| MTBF | ≥9000hours |
| Power switch | Automatic Switch |
| Display Mode | 800*600/1024*768/1280*900 |
HongKong Mountain A-Li Group Electronic Technology Co., Ltd Major In LED Modules and LED Display. Indoor LED Display have P3 P4 P5 P6 P7.62 P10 (Have difference cabinets types ). Outdoor have P6 P7 P8 P10 P16 (Have difference cabinets types ), LED Modules have single color, double color and full color, LED Display Have Indoor LED display, Outdoor LED display, Outdoor LED screen. Indoor LED screen, LED video display, LED Video screen, LED Advertising screen, LED Advertising Screen.
Features:
1) With good lightening accordance and no mosaic
2) LED advertising board can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
Applications:
LED advertising board wide applied in stadiums, advertising, banks, securities exchange, stations, shopping malls, postal offices, schools, monitoring, restaurants, entertainment, enterprises etc
