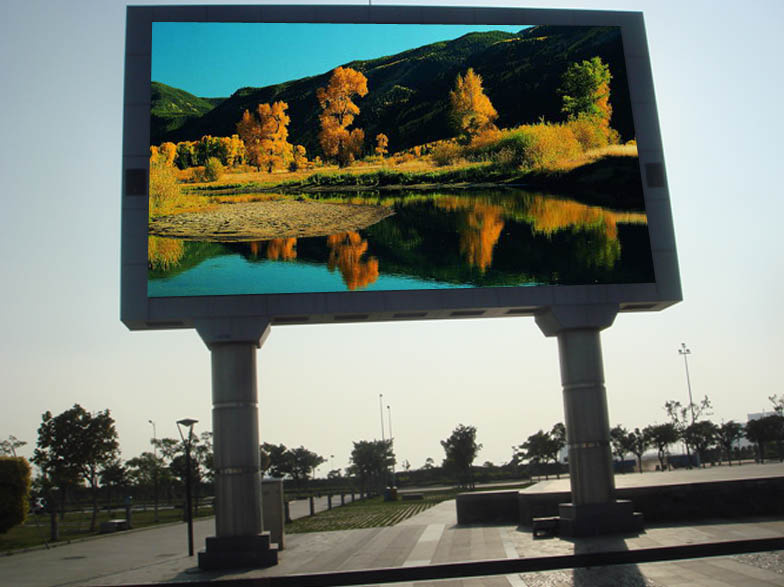

LED Screen Manufacture P20 Outdoor LED Display

Prod Model:	p20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Waterproof:	IP65front, IP45 Back
Mtbf:	More Than 10, 000hours
Life Span:	More Than 100, 000hours
Power Consumption:	About 500W/Sqm
Tube Chip Color:	Full Color
IP Rating:	IP67
Pixel Pitch:	20mm
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	300W / m²
Scanning Mode:	1/4 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	FCC
Pixel Density:	25000

Product Description

FOXGOLDEN is one of the most impressing Hi-tech enterprises in China. We have specialized in this business line for 11 years.

Full Color LED Display Advantages:
Adopt imported high-quality LED chip (COTCO/CREE/AXT/SILAN/TAI WAN LED lamps) to manufacture full color LED display, with a large perspective, uniform color and immortality lights, low failure rate, easy to maintain etc...Standard products, production line, International quality, ultra-low prices.
1. Price Advantage of LED Display: Most competitive price for the same model in the market, at the same time, with the same or even better quality;
2. Performance Advantage of LED Displays: Good, even, higher conformity, large view angle, each single color lamp can be repaired;
3. Quality Advantage of LED Display: The whole process controllability from material to finished products, from R&D to production, becomes the guarantee of product quality dependability;
4. Service Advantage of Indoor Full Color LED Display: Much more sound service based on the same terms, and more deep cooperation based on the same service.

Trade terms:
1. Hardware: LED display and video controlling system
2. Technical material: English version user manual, installation manual and maintenance manual
3. Service:
Provide free technology support by phone and e-mail
7 years guarantee
4. Delivery: Approx 3-12 working days
5. Packing: Anti-shaking wooden package or Air Flight Case
6. Transportation: By sea or air or Express
Currently, FOXGOLDEN LED display is already exported to Asia, Europe, South America, North America, Africa and Middle East and other regions. We attained ISO9001: 2000, CCC. CE, FCC, RoHS etc.

For more details, please feel free to contact us. We will give you best service and timely reply.

Description	Technical parameter
Unit module	Module size	320*160mm
	Pixel pitch	20mm
	Pixel density	2500dots/m2
	Pixel configuration	1R1G1B
	Led specification	Φ 5ellipse
	Pixel resolution	W: 16dots*H: 8dots
Cabinet	Dimension	960mm*960mm*170mm
	Quantities of module	18pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	55kg
	Best viewing angle	16-300m
	Temperature	Storage: -35° C~+85° C
		Working: -35° C~+85° C
	Thickness	17cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	250-500W
	Max. Power consumption	≤ 560W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	Static scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 400Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 8000cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
		Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software	LED media player

The company overview:
Foxgolden Group Ltd is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high  quality products, and have been well integrated with R & D, production, project, capital and marketing.

As a professional and market-oriented LED display manufacturer ,FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness , but also makes breakthrough progresses on special usgaes. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and oveerseas market.

FOXGOLDEN provides a full series of LED display products involving various single and dual color , text & image display; indoor single & dual color , full color screen; outdoor single & dual color , full color display; dot matrix module display; traffic applied product;and series of indoor & outdoor module

With cultivation for high-quality production management team and project team , high quality products and local maintenance service; we only achieved 0.001% complaint in product quality for 7 constant years. that's why Foxgolden has received comprehensive attention form LED industrial experts these years!

    Welcome to Foxgolden........
