| Prod Model: |
P16 Outdoor Full Colors LED Display-01 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
16mm |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
2R, 1G, 1B |
| Pixel Pitch: |
16mm |
| Display Function: |
Video Display |
| Certification: |
RoHS |
Product Description

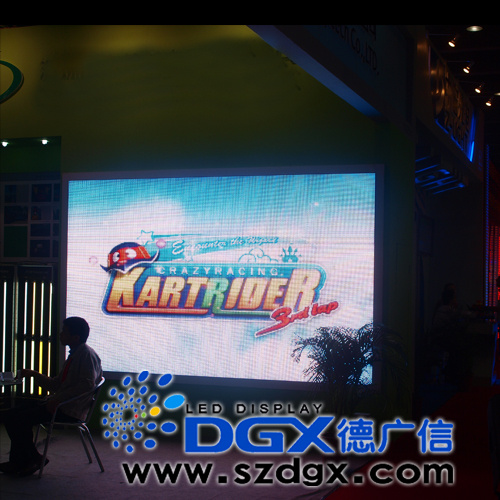

P16 Outdoor Full Colors LED Display -01
1. Pixel Pitch: 16mm
2. Configuration: 2R1G1B
3. Screen Resolutio: 3906 pixels *4/Sq. M. (Virtual Pixel)
4. LED Drive/Scan Method: Static constant current
5. Optimum Viewing Distance: 15m, and can be seen from 200-300m Away.
6. Grade Level: Red, Green and Blue 4096 Grade/Each
7. IV: ≥ 6400CD
8. Viewing Angle: Horizontal 110° /Vertical 60°
9. Changing frameFrequency: 60Hz
10. Refresh frequency: ≥ 400Hz
11. Max. Power consumption: 1150W/m2
12. Average power consumption: 550W/m2
13. Screen lifetime: ≥ 100, 000 hours
14. Out-of-control point: <1/100009(scatter)
15. Assembly precision between PCB: ≤ 1 mm
16. Driving IC: Toshiba TB5026
17. Working environment temperature: -20 C--50 C
18. Input Voltage: AC220V± 10%, 50Hz
19. Screen weight: ≤ 65kg/ m2
20. Average no failure time: ≥ 10, 000hours
21. Hi-pot test: 50Hz/1500V(AC valid value)/1min
(It means outer frame of product can resist discharging Strike)
22. Current leakage to grounding: < 3mA
23. Controlling method: Computer---Synchronous system---LED Display
24. Protective grade: IP65
25. Intelligent control: Remote control by computer
26. System Function: Synchronous display kinds of text, graphics, pictures, Signs, flashes, and any signal from TV, VCD, DVD, Camera, and scanner. And so on, support PAL, NTSC.
25. Video display function: (1)Synchronous software
(2)Complete with all cables necessary for Instillation
Shenzhen DGX TECHNOLOGY Co., Ltd. is a high -tech enterprise which specialize in LED RD, design, production, assembly and so on, DGX locate in Bao'an district of Shenzhen China which is established in 2008 and has got 150 employees.
Our major products are full color LED outdoor/indoor display screen, LED tube light, LED indoor decorating lighting, scenery lighting and building lighting.
DGX 's culture soul is "morals, development and promise", all of our employees echnics management, quality and service are based on this culture soul.
DGX' s LED display and lighting products apply to night club, KTV, disco, theatre, building, plaza, square, TV station, all the lighting, entertainment, and advertisement field, we have got high reputation in these industry.
DGX apply Taiwan and CREE LED chip to ensure the vivid video effect and Technicolor, we have got many successful project, in every China province, Australia, EU, America, Africa and so on.
DGX is famous for high quality, fast response after service.
DGX develop all the business by international eyesight and developing policy to push LED industry in China and all the world, we are looking forward to wining the future with all global customers.
