| Working Voltage: |
AC100-264V |
| Display: |
488mm×122mm/Area/Three Areas |
| Communication Interface: |
Ethernet,RS485 and RS232 Optional |
| Working Temperature: |
-10 ºC-55ºC |
| Tube Chip Color: |
Dual-color |
| IP Rating: |
IP67 |
| Display Function: |
Text Display |
| Average Power Consumption: |
350W / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Pixel Pitch: |
7.62mm |
| Pixel Configuration: |
1r,1g |
| Pixel Density: |
17200 DOT/M2 |
| Application: |
Parking Lot, Underground Garage, Shopping Mall, Et |
| Certification: |
SGS |
Product Description
| Specification parameter |
| Working voltage | AC100-264V |
| Display | LED display area:488mm×122mm/ area,three areas |
| Display mode | Direction arrow(3 directions)+available parking lots(3 digits), maximum number of available parking lots:999 |
| Communication interface | Ethernet,RS485 and RS232 optional |
| Working temperature | -10 ºC~55ºC |
| Working humidity | 10%~95% No condensation |
| Overall size | H1055mm×W350mm×T65mm Aluminum Alloy mold frame |
Can be customized according to customer requirements
Product Features:
1.Display different content according to the instructions issued by the host computer.
2.Built-in national standard secondary character, simplified and traditional Chinese and English optional

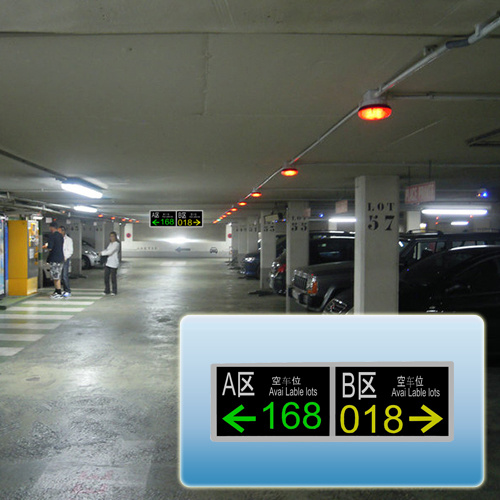

3.With High-flux and single row LED dot matrix display, it can show Chinese, English, digitals and other combined content. Parking guidance screen have two parts of fuctions: indication of direction & available parking lots display, which installed on the reasonable position of parking entrance or intra-area. The drivers are easy to get the information about the available parking lots, and to find available parking position fastly.
4.Display standard English, Chinese,and digital characters, communication mode RS232, RS485 and Ethernet optional, can be used by a single or a plurality of combination.
Trade Terms:
1. Payment: 30% before production ,full payment before shipping by TT or Paypal.
2. Delivery Time:2-5 days for sample, mass production depends on the QTY.
3. MOQ: 500PC.
4. Customers can freely choose the shipping way, TNT, DHL, FedEx, by air or by sea etc. We have professional freight forwarders, on the transportation we will not earn customers one penny of profit. Of course customers also could use your own freight forwarders, we will to fully cooperate with you.
5. Shipping port: Shenzhen Port
Our service:
1.Your inquiry related to our products or prices will be replied in 24hours.
2. Professional service will surely be offered by the well-trained and experienced staffs
3. Protection of your sales area, ideas of design and all your private information.
Creative Galaxy Greative (Shenzhen) Co., Ltd, a wholly foreign-owned enterprise was founded in 2002, with the registered capital of 5.08 million. Our company is an integrated high-tech enterprise which engaged in intelligent display and intelligent lighting. After years of development, we have been successfully developed and produced various intelligent display products and intelligent lights. Intelligent display products include single and online version LED screen displaya, multi-screen display, transparent display cabinets, touch query machine, indoor and outdoor LED message display; Intelligent lights include LED tube light, LED spot light, LED ceiling light, LED bulb, track light and other accessories such as power supply, support, sensors.
