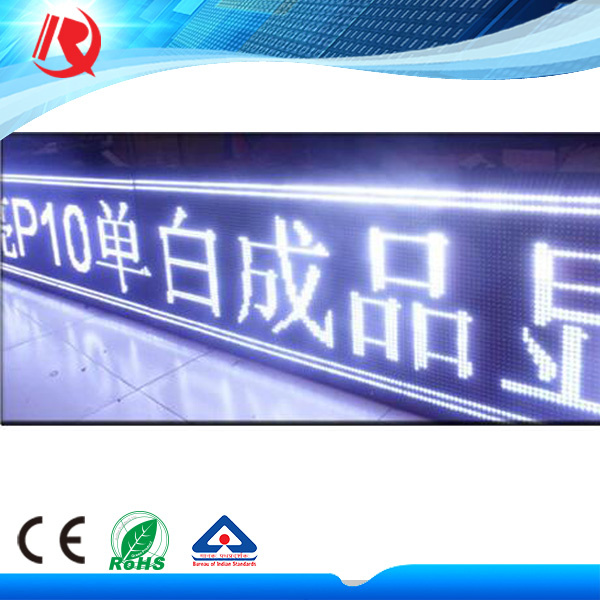

LED Panel LED Sign P10 White Color DIP Module Display
| Price: |
US $ 4.5-5/Piece |
| Min Order: |
1000/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal,Money Gram |
| Prod Model: |
P10 |
| LED Color: |
Red |
| Pixel Pitch: |
10mmm |
| Brightness: |
2500CD/Square Meter |
| Scan Mode: |
1/4 |
| Module Size: |
320mm*160mm |
| LED Encapsulation: |
32*16 Dots |
| LED Light Source: |
Piranha |
| Emitting Color: |
Red |
| 1 LED Power: |
0.3-0.5W |
| Power: |
15W |
| LED Chips: |
Epistar |
| IP Rating: |
IP65 |
| Waterproof: |
Waterproof |
Product Description
LED panel LED sign P10 white color DIP module display, specification as following | Product | Outdoor P10 single color RED Module |
| Pixel Pitch(mm) | 10 |
| Pixel composite | DIP 346 |
Pixel density
(dots/sqm) | 10000 |
| Drive model | 1/4 scan |
| Module resolution | 32*16 |
Module size
W*H(mm) | 320*160 |
| Cabinet resolution | 96*96 |
Cabinet size
W*H(mm) | 960*960 |
| Brightness (nits) | ≥2400 |
Average consumption
(W/sqm) | 280 |
Max consumption
(W/sqm) | 550 |
| Cabinet weight( kg ) | 45 |
| Power supply mode | constant current |
| Refresh rate | 1000HZ |
| Frame Frequency | 60HZ |
| Gray scale | 12 bit for each color(R,G,B). |
| Colors | 36bit |
| Color temperature | Color temperature can be adjusted as well. |
| IP grade | Rear IP54 |
| View angle | 140°/140° |
| Uniformity of luminance | <3% |
| Control method | Synchronization control by PC |
| Effective communication distance | Network Cable, 100 m;
Multimode optical fiber, 1000 m;
Single mode fiber, 10 km. |
| Pixel failure ratio | <1/100000(industrial standard<1/10000) |
| Mean time between failures | >10000 hours |
| Life span | >100000 hours |
| Earth Leakage Current | <2mA |
| Power supply | AC220V/50HZ OR AC110V/60HZ |
| Operating temperature | -20~60ºC |
| Operating humidity | 10%~90% |
we are the manufacturers of LED module, screen, panel for more than 10 years,we have profetional technicals and working stuff to make sure every single proudct quality.
if you want to know more details or need good price, you can contact us with the following informaiton:
Monica Hu
Tel:+86-374-3118358
Our company supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of " Quality first, service first, continuous improvement and innovation to meet the customers" For the management and " Zero defect, zero complaints" As the quality objective.

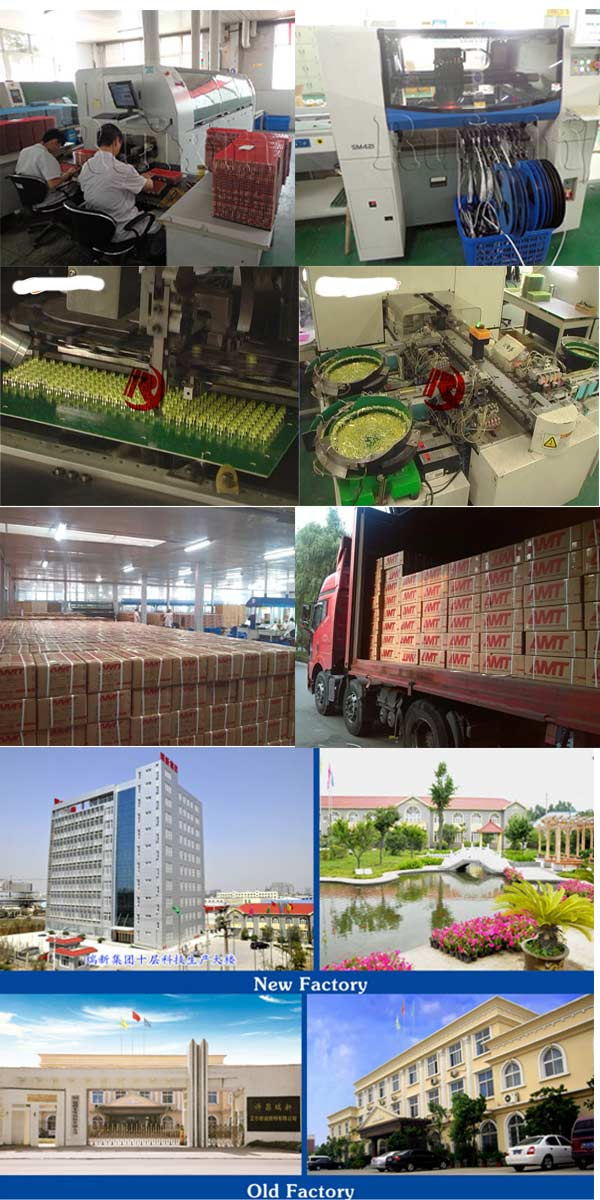

Xuchang ETDZ People Electronic Technology Co., Ltd is a comprehensive high and new technology enterprise. Its main products include LED components, LED lights, electronic display screens, 3G intelligent electronic bulletin board and smart advertisement player, It integrates development of such products with its R&D, producing, sales and engineering service into together.
Xuchang ETDZ People Electronic Technology Co., Ltd is located in the state-level Economic and Technological Development Zone in Xuchang. It totally covers 80000 square meters, among which over 40, 000 square meters are producing and facilities area. The registered capital stands at RMB 50 miillion and the total assets amounts to RMB 0.8 billion.
There is a high-quality employee team, of which middle & senior management staff and technicians account for over 70%. Currently, the Group has passed ISO9001: 2008 Quality Management System Authentication, ISO14001 Environmental Management System Authentication. And products have also passed CE Safety Authentication, CQC Safety Authentication, 3C Authentication, and other international certifications
The main products of Xuchang ETDZ People Electronic Technology Co., Ltd include different kinds of LED indoor lamps, LED display screen modules, Such products reach more than 20 series and nearly 200 varieties. Ruixin LED street lamps have won six national patents, and currently it is one of the major manufacturers of LED series products.
We are Xuchang ETDZ People Electronic Technology Co., Ltd!
Xuchang ETDZ People Electronic Technology Co., Ltd products are very popular in Southeast Asia, Europe, U. S. A., Japan, Korea and Africa. In China we have 18 offices. We have formed a nationwide sale service system including distribution, technology and after-sale service.
Xuchang ETDZ People Electronic Technology Co., Ltd, Refresh your life!
