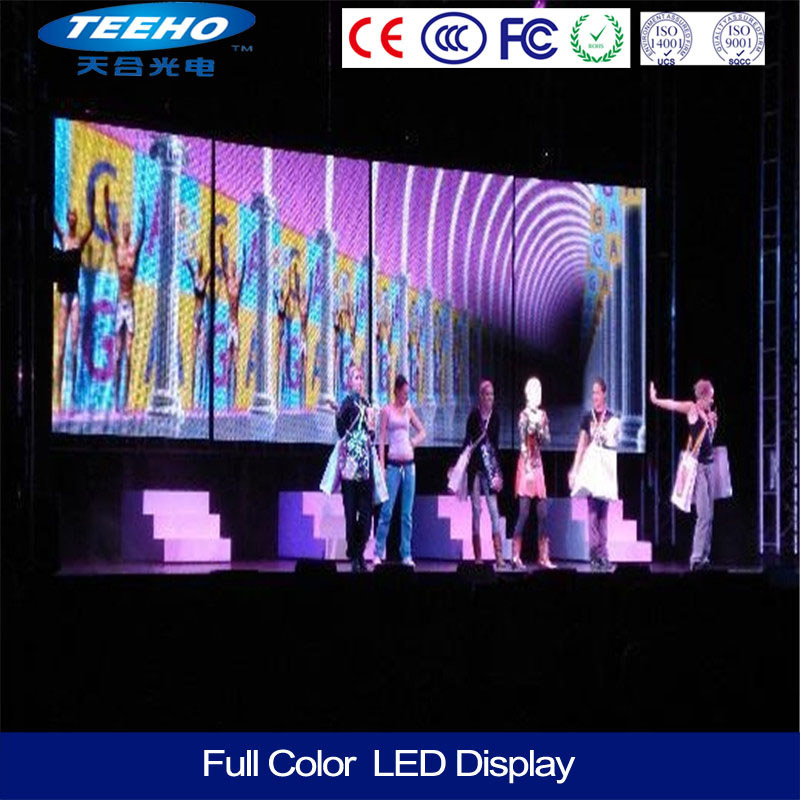

LED P5 Outdoor Display
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
P5-8S |
| Moduel Size: |
160mm × 160mm |
| Moduel Resolution: |
32 × 32 |
| Brightness: |
5500 CD/M² |
| Grey Processing: |
14 Bit |
| Contrast: |
1000:1 |
| Frame Frequency: |
65 Hz |
| Working Voltage: |
AC 85-264V |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
5mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
40,000 dots / m² |
| Scanning Mode: |
1/8 Scan |
| Display Type: |
LED Video Display |
| Application: |
Advertising |
| Certification: |
CCC |
| System Operating Platform: |
Winxp,Winvista,Win789 |
| IP Rating: |
IP65 |
Product Description
Production Specifications:LED P5 Outdoor Display
| Model | Product Name | Specification |
| LED | Pixel Configuration | 1R1G1B | Encapsulation | SMD2727 |
| Primary Hue | Wavelength | Brightness |
| Red | 620-623nm | | 560-700 mcd | |
| Green | 525-527nm | 1150-1440mcd |
| Blue | 465-467nm | 156-195 mcd |
| Unit Board | Phisical Characteristics |
| Moduel Size | 160mm×160mm×18mm |
| Moduel Resolution | 32×32=1024dots | Density | 40000Dot/m² |
| Pixel Pitch | 5mm | | |
| |
| Brightness | ≥5500cd/m2 |
| Viewing Angle | Horizontal 120±10°,Verticle 120±10° |
| Driving Method | 1/8S |
| Scanning Frequency | ≥600Hz |
| Frame Frenquency | 60Hz |
| Electrical Propertied |
| Current | 4.7A±0.1A |
| Input Voltage(DC) | 4.8-5.2V |
| Power Consumption | ≤24W |
| Max Power | ≤950w/m2 |
| Environment Requirements |
| Operating Tempurature | -10ºC to +60ºC |
| Humidity Rh | 10% to 70% |
| Safty Performance |
| Life Span | ≥100000 Hours |
| MTBF | ≥5000 Hours |
| | Package | Material :200gCraft+PE Bag |
| | Weight :kg |
| | Moduel Number:1Rank 2tier 80PCS |
CONTACT US.
Add:Building B, Londa Industrial PARK. Liaokeng Village, Shiyan Town, Baoan District, Shenzhen, Guangdong Province, China(Mainland).
Website:www.teeholed.com
TEEHO OPTOELECTRIC is a professional manufacturer in Shenzhen China. We hope you wil join us. Welcome Home!
Shenzhen Teeho Optoelectronics Co. Ltd(short for Teeho Optoelectronics), found in 2009, is a high-tech private enterprise specialized in LED Screens manufacturing with a ¥ 11 million of registered capital and over 300 employees in Shenzhen. It has been dedicating itself to offering one-stop LED display solutions to its customers including R&D, prototyping, assembly, sales and technology support across the globe.
Teeho industrial park is located in Bao'an, Shenzhen, the most populous LED industrial area, with a cover of more than 10, 000 m2 and over 300 million of amount of sales per year, fully equipped with modern automatic assembly lines with the manufacturing capabilities of 8000 m2 per month
Teeho Optoelectronics spans a wide range of products covering: Indoor Full-Color LED Displays, Out Full-Color LED Dislays, LED Television Displays etc, applied to governmental institutions, corporate image projects, business ads, media activities, cultural and entertainmental places, stadiums, stations and airports etc.
Teeho Optoelectronics is focusing all efforts to technology-leading strategies of production by relying on the three-tier talent strategy, gathering high profile professional talents, which makes a foundation of new R&D of products and specially custom-made products. The R&D teams of Teeho electronics have been dedicating themselves to one-stop solutions, and have obtained tens of certifications of products and innovative patents. Moreover, they have outstandingly achieved in high-end indoor full color display solutions.
Teeho electronics has been promoting itself by advanced technology and scientific managements and has the following certifications: ISO9001: 2008 Quality System Certification, ISO1400: 2004 Environment System Certification, CCC, CE, FCC, RoHS etc. With high quality and perfect service, Teeho Optoelectronics has built lots of sales and service networks and its high-quality products has been exported into more than 80 countries and areas such as the United States, India, New Zealand. Japan, Thailand, Taiwan and Hongkong.
Teeho Optoelectronics Co., Ltd has been marching on under core values of Integrity, Pragmatic, Harmony, Creativity to guide our staff members and to devote itself to leading status in this industry, to ensure that our client will be fulfilled with the high-quality products and best service. With the horizontal developments in industrial chain and a variety of for-profit models, we vigorously promote the construction of brand culture, strive to become a world-class brand researched and developed independently, to become the most professional LED screens and one-stop solutions supplier, which makes a contribution to competing of national brands in globe markets.
