| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
8 Inch-36 Inch |
Product Description
Specification:
1 Size: 8" 10" 12" 16" 20" 24" 36"and etc. We can customize the clients' special request.
2 Digital format on the sign: 8.888 (88.88, 888.8) / 8.8888(88.888)/ 8.88 9 / 8.88 9/10
3 Display Color: Red, Amber, Green, Blue, or White.
4 High Brightness (traffic LED)
5 Horizontal Viewing Angle: 100° (traffic LED), generally, people will not see the signs directly.
6 Working Temp: -40 Degrees Celsius ~ + 85 Degrees Celsius
7 Waterproof rate: IP65
8 Wireless control: RF/LCD (enclosed pictures below), wireless control distance for regular one is 100m, and can be customized.
9 Cabinet housing material: Iron/Aluminum
10 Structure: Control box separated from the LED sign (Iron/Aluminum cabinet and transparent PC)
11 Digital height: 5" (127mm), 6" (152.4mm. ), 8" (203.2mm), 10" (254mm), 12" (304.8mm), 16" (406.4mm).
12 Lines format: 5"--(2 lines), 6"--(2 lines), 8"--(2 lines), 10"--(2 lines), 12"--(3 lines), 16"--(3 lines) 20"(red, yellow 5 lines, green 4 lines, 24"(red, yellow 5 lines, green 4 lines)
13 Life span: ≥ 100, 000 hours
14 Aspect Ratio: (height/width)=2/1
15 Segment: 7 segments per digital number "8"
16 Input Voltages: AC120V/220V
Advantages:
1. High brightness, and which can be adjusted automatically and manually in the night by installation light sensor.
2. Waterproof: The LED gas price changers are adopted the cabinet structure.
3. Variety choices of the digital format prepared for your need.
4. Careful and thoughtful services
|

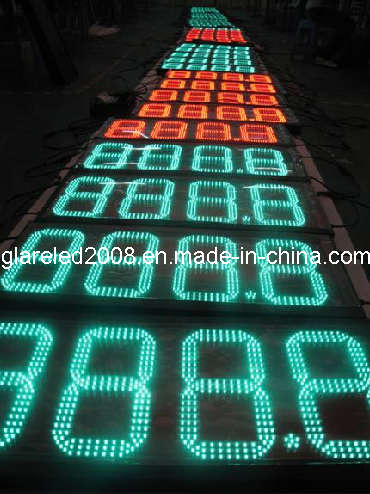

The Parameter Of LED Gas Price Sign(LED Gas Price Changer/LED Gas Price Change Unit/LED Gas Price Display) |
|
LED lamp: |
High Brightness
(traffic led): |
1200 mcd ≤Red ≤1500 mcd(20mA) (TAI) |
|
1800 mcd ≤Green ≤2200 mcd(20mA) (TAI) |
|
800 mcd ≤Yellow ≤1000 mcd(20mA)(TAI) |
|
450 mcd ≤Blue ≤600 mcd(20mA)(TAI) |
|
Wavelength: |
Red traffic Led 620~625mm |
|
Yellow traffic Led 580~585mm |
|
Green traffic Led 502~505mm |
|
Blue traffic Led 462~467mm |
|
Horizontal Viewing Angle: |
100° (traffic led) |
|
Vertical Viewing Angle: |
40° (traffic led) |
|
Digits Features: |
|
Aspect Ratio: |
7 segments per digital number |
|
Drive Mode: |
( height : width)=2:1 |
|
Voltage: |
static constant current |
|
Digital height: |
5”(127mm),6”(152.4mm.),8”(203.2mm),10”(254mm),12”(304.8mm),16”(406.4mm) ... ... |
|
Lines format: |
5”(red, green, yellow,2 lines) |
|
6″(red, green, yellow,2 lines) |
|
8” (red, green, yellow,2 lines) |
|
10” (red, green, yellow,2 lines) |
|
12” (red, green, yellow,3 lines) |
|
16”(red, yellow 4 lines, green 3 lines) |
|
20″(red, yellow 5 lines,green 4 lines) |
|
24"(red, yellow 5 lines,green 4 lines) |
|
PCB board: |
bottom board is black |
|
Gas Price Sign Features: |
|
Display Format: |
8.888, 8.88 9/10, 8.889, 88.888, |
|
Control way: |
remote controller |
|
Remote control range: |
≤120m |
|
Brightness: |
Brightness can be automatic adjustment |
|
Working Temp: |
-40 ~ +85 |
|
Input Voltage: |
AC120V/220V |
|
Waterproof level: |
IP65 |
|
Structure: |
control box seperated from the cabinet, Iron/Aluminum cabinet and transparent PC |
|
Life span: |
≥100,000 hours |
|
Maintenance |
warranty: 1 year, lifetime maintenance |
|
Accessories: |
|
Power: |
MW 12V 12.5A |
|
8 core signal cable: |
160cm |
|
2 core power cable: |
160cm |
