| Prod Model: |
YB-LED-04 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
7.62mm |
| Brightness: |
3000 cd / m² |
| Scanning Mode: |
1/2 Scan |
| Display Function: |
Market Display |
| IP Rating: |
IP55 |
| Certification: |
UL |
| System Operating Platform: |
WIN XP |
| Pixel Density: |
6844 dots/m² |
Product Description
Technical parameters
DOT pitch: 20mm
Brightness: 6500CD/m²
Pixel density: 2500 LED's/m²
Configuration of LED: 546 DIP 2R1G1B
Drive mode: Constant current drive
Scan mode: Static
Module size: 320 mm* 160 mm
Module resolution: 16 dpi*8 dpi
Horizontal view angle: 110°
Vertical view angle: 55°
Resolution ratio: 64 dpi*48 dpi
Lifetime: 50000 hours
Power consumption: 900 W/Casing (Max)
Weight: 65 kg/Casing
Color: 16, 700, 000 colors
Refresh rate: > 800Hz
Operating temperature range: -20° C to -20° C of ambient temperature
Operating humidity range: 0 to 90%
Input voltage: AC 110V± 15% / 220V± 15% 50Hz/60Hz
Insert and draw frequency of connector: 10000 times
Application ranges

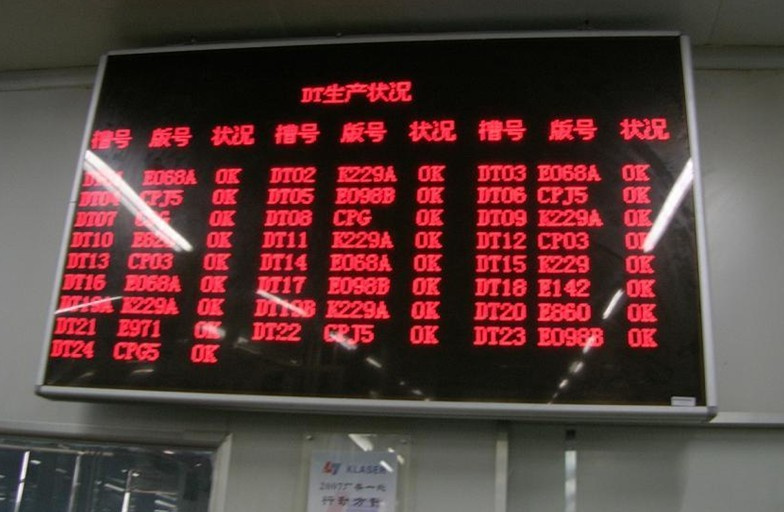

Security exchange, financial information display, dynamic information display of airport flights, introductory information display for the passengers of ports and stations, information display at the stadium and gymnasium. Road traffic information display, information display at dispatch and command center, business promotion and information display in service areas, such as postal service, telecommunications and shopping centers, new products of advertising media, performance, assembly and exhibition.
|
Model number |
YB-LED-04 |
Display color |
True color |
|
Display mode |
Static/Page turning |
Screen size |
Manufacture as per the requirements of buyers |
|
Brightness |
Highlight |
Gray scale |
4092 |
|
OEM |
Ok |
|
|
Changzhou Yunbo Electro-optics Tech Co., Ltd has modern business operation and management system, lead by technology and quality, service and marketing centred. We are a scale company focused on energy industry, electricity industry and intelligent control products with R&D, production, sales and service four in one. With abundant strength and rich experience, we provide our clients with lighting cabinet control, intelligent programmable PLC power management, processing control PCB, LED used for advertising exhibition equipment, automatic parking system, automatic ticket system, medical lighting system and industrial controlling products. And We also provide OEM&ODM services.
In long-term production practice, we are strictly with ISO9001: 2008 management system and our products are approved by CE, RoHS. Also we have developed good business relationship with well-known international enterprises, like THE BRIGHT GROUP who provide gaming products for global gaming industry, and Korean LS original from LG and so on.
We truly believe that, with our continuous effort, we will gain mutual benefit, reach a win-win result and March forward hand in hand with all our partners.
