| Prod Model: |

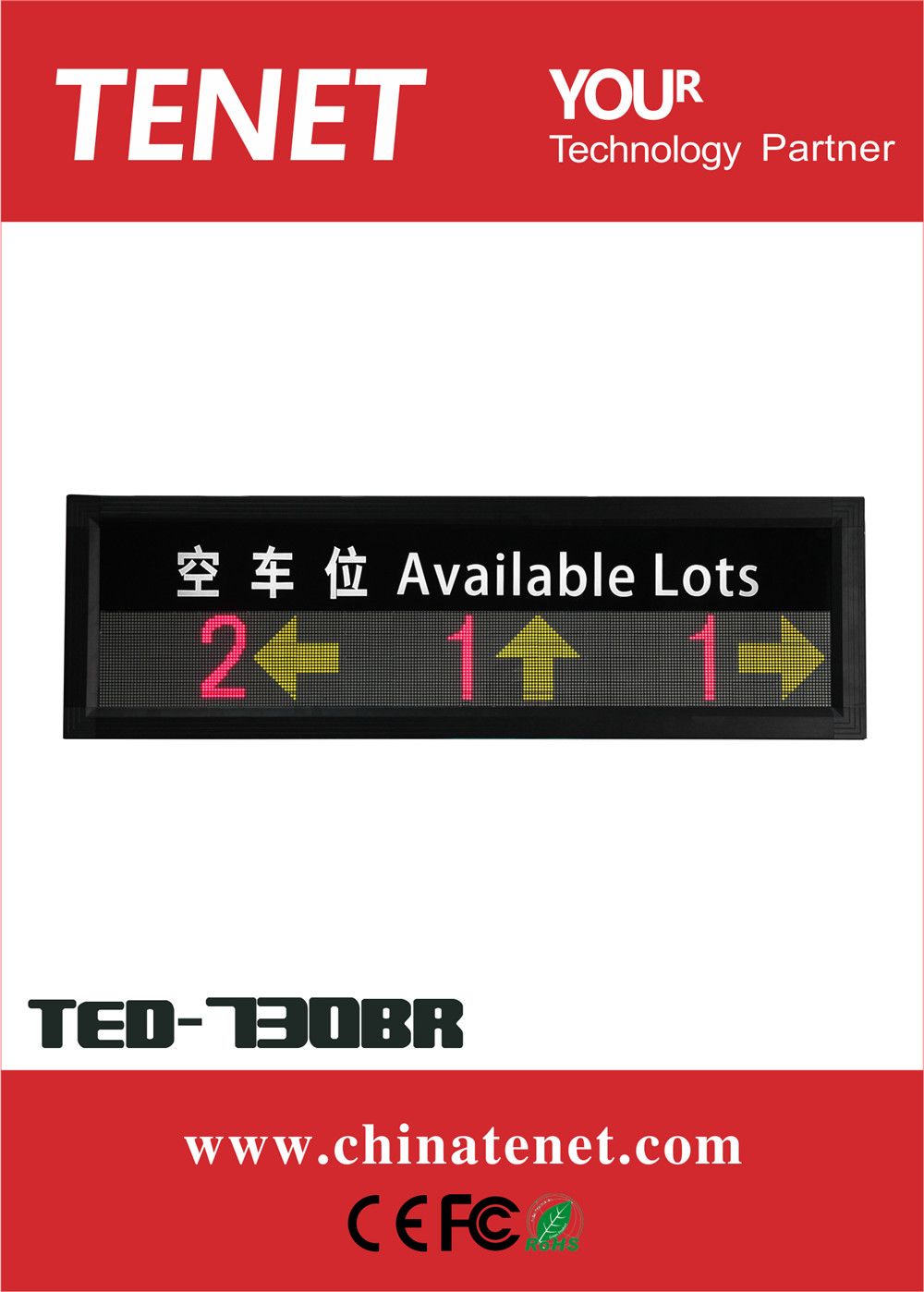

TED-730br |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Work Voltage: |
AC220V |
| Use Scene: |
Space Guidance |
| Display Type: |
One Direction |
| DOT Pitch: |
5mm |
| Color: |
Red, Green |
| Demension: |
380x152 |
| Appearance Size: |
480x380x102 |
| Tube Chip Color: |
Dual-color |
| Display Function: |
Text Display |
| Scanning Mode: |
1/8 Scan |
| Certification: |
CE |
| Application: |
Guide |
Product Description
Key Feature:
1. Function Description:
TED-730br is four inches digital display receiving data in data communications, RS485 communication, setting address through changing DIP, the agreement is the TENET screen agreement.
2. Connection:
J3 to the DC power supply, 5V j4 for connecting RS485 data communications, S1 is to set the set the address, the fourth one is the lowest can set 16 pieces of address, the initial address is 0x31, address values= 0x31 +DIP value.
3. If it is more, to keep one of the screen of the resistance is 120 euro, the other match of the resistance of 120 euro the undesirables;
4. Protocol:
The protocol of four inches Nixie tube:
1.00H is the leading flag of the data stream;
2. Screen number is the display address, ( the address should be consistence with the Nixie tube address that is set by DIP) can set it; .
3. One screen, one speed two second, direct display, four bytes of yellow can be any value but need more than 30h,
4. It is eight characters, because of the screen shows only four numbers, so 4 bytes beforeight bytes can be any byte but also more than 30H, the later four bytes show the car slots, also the screen show the car slots according to the four bytes.
5. The end send 0DH
