| Prod Model: |
P6 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pitch: |
6mm |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Scanning Mode: |
1/8 Scan |
| Application: |
Shopping Guide |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Pitch: |
6mm |
| IP Rating: |
IP40 |
| Certification: |
CE |
| Pixel Density: |
27,777 dots / m² |
Product Description

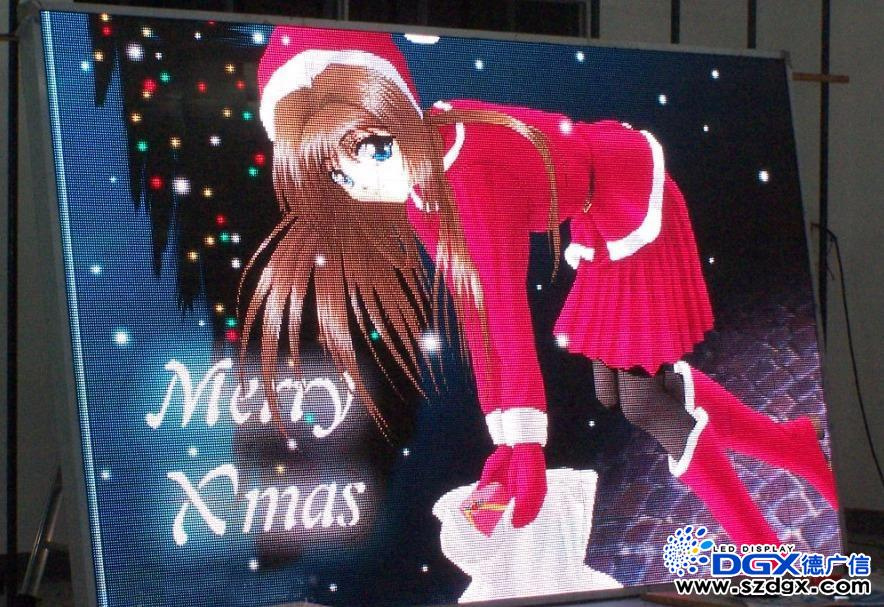

P6 indoor full color LED display
Type: P6
Pitch: 6mm
Module size: 192*96mm
Pixels On Unit Cabinet: 96*96Pixels
Unit Cabinet Dimension: 576mm*576mm
Pixel Density: 27777dots/m²
Brightness: 2500CD/ m²
Visual Angle: 140
Volt: 110v-130v
Maximum Power Consumption: 1400w/m²
Average Power Consumption: 700w/m²
Refresh Rate: 180Hz
Life Time: 100000 hours
Communication Method: UTP: 120m, Optical Fiber: 2km
Best viewing distance: 6-42m
Unit Cabinet Weight: 30Kg
This display can be designed according to clients' specifications.
|
1 |
Module Size |
192mm * 96mm |
|
2 |
Module resolution |
32*16 pixels |
|
3 |
Density |
27777 dot / M2 |
|
4 |
Power consumption |
≤1000w/m2 |
|
5 |
Display Luminance |
≥2000cd/m2(Full Black Light:≥1200cd/m2) |
|
6 |
Drive Mode constant |
1/ 8 scan |
|
7 |
Viewing Angle |
Horizontal :140°,vertical : 140° |
|
8 |
Viewing Distance |
From 5 meters to 60 meters |
|
9 |
Grey Scale |
red\green\blue ,256 gray scales respectively |
|
10 |
Color |
16.7 million |
|
11 |
Change frame |
≥100HZ |
|
12 |
Scanning rate |
180HZ |
|
13 |
Screen life |
50000-80000 hours |
|
14 |
Screen MTBF |
100000 hours |
|
15 |
Blind rate |
≤0.0002 |
|
16 |
Working Voltage |
AC220V±10%,50Hz |
|
17 |
Control distance |
≤100 meter with cat5 cable(MMF 500 m,SMF 20 000m ) |
|
18 |
System working
Environment temperature |
-55 °C~ +85°C |
|
19 |
System working
environment Humidity |
10%_95%RH |
|
20 |
Continuous working time |
24hours /day |
|
21 |
Color temperature |
6000K±500 |
|
22 |
Information source |
Many kinds of signal access ,can input TV signal ,DVD
signal ,Computer signal,internet and other |
|
23 |
Control graphics
technology |
Intellective control technology, test-itself technology ,correct
technology. |
|
24 |
Multimedia control
technology |
Abundant multimedia video picture ,characters manifest function ,and
switch quickly function |
|
25 |
Maintenance |
Pixel by pixel |
|
26 |
Configuration |
Screen composed of the cabinets ,cabinets composed of the modules |
|
27 |
Maintenance manner |
Reservation position is 45cm |
|
28 |
Switch manner |
Computer control switch automatically |
|
29 |
Remote management (extra charge,optional,default is cable control)) |
Remote control display system and operate |
