| Prod Model: |
P10 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Pixel Configuration: |
2r1g1b |
| Best Viewing Distance: |
20-300m |
| Warranty Time: |
5-7years |
| Horizontal Viewing Angle: |
120degree |
| Verticalviewing Angle: |
110degree |
| High Brightness: |
More Than 8000CD/Sqm |
| Life Span: |
100,000hours |
| Tube Chip Color: |
Full Color |
| Display Function: |
Video Display |
| Pixel Pitch: |
10mm |
| Pixel Configuration: |
1R,1G,1B |
| Pixel Density: |
10,000 dots / m² |
| Display Type: |
LED Video Display |
| Application: |
Shopping Guide |
| Certification: |
RoHS |
| Scanning Mode: |
1/8scan or 1/4 Scan |
| IP Rating: |
IP20-IP45 |
Product Description
Warm Tip:
Here is DIP, SMD, and Dotmatrix LED display for customer choosing.
LED display styles: P4, P4.75, P5, P6, P7.62, P8, P10, P12, P12.5, P14, P16, P20, P25, P31.5, P40, P80

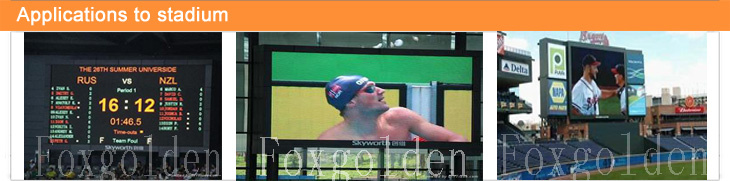

We are devoted to the R&D and production of LED displays and LED Module. Our products range covers full color LED displays, LED module, LED strips screen etc. These fixtures can be applied in indoor & outdoor, such as concerts, entertainment places, advertisements, hotels, and buildings up to your imagination of your projects.
With more than ten-year experience accumulated in the show production and project engineering field, we know exactly what kind of product characters are the most important to the show companies and project companies. Those are convenient and easy setting-up, stability and with the best visual effects. Thus, we can make the right products meeting the requirements of our customers.
Our products have been used in numerous famous tours, concerts, television stations and projects both at home and abroad. We always emphasize on product quality and good service. (Some of our products have passed the evaluation of CE certification). We will still do our best to offer the best products with the best effects as well as the best service for you.
| Description | Technical parameter |
| Unit module | Module size | 320*160mm |
| Pixel pitch | 10mm |
| Pixel density | 10000dots/m2 |
| Pixel configuration | 1R1G1B |
| Led specification | SMD 3 in 1 |
| Pixel resolution | W: 16dots*H: 16dots |
| Cabinet | Dimension | 960mm*960mm*150mm |
| Quantities of module | 25pcs |
| Power supply | 4pcs |
| Thermal discharge | Fan*2pcs |
| Total weight | 50kg |
| Best viewing angle | 10-150m |
| Temperature | Storage: -35° C~+85° C |
| Working: -35° C~+85° C |
| Thickness | 15cm can adjustable |
| Remarks: cabinet size can changed, upon project need. |
| Power | Working voltage | AC220V/110V± 10% |
| Average power consumption | 200-300W |
| Max. Power consumption | ≤ 600W/sqm |
| Current | ≤ 20mA(single LED) |
| Control system | CPU | Pentium4 or above |
| Operating system | WIN98/2000/NT/XP |
| Control method | Synchronization |
| Main technical parameter | Driving device | 1/4scanning |
| Drive type | Constant Current driver IC |
| Refresh frequency | ≥ 400Hz |
| Grey scale/colors | 256 levels of each color(R/G/B)/16.7M color |
| Brightness of white balance | More than 1800cd/sqm |
| Brightness adjustment | 256 levels of each color(R/G/B)by software |
| Operating ambient humidity | 10%--95% |
| Video signal | PAL/NTSC |
| Control system | DVI display card+full color controller card |
| MTBF | ≥ 10, 000hours |
| Life span | ≥ 100, 000hours |
| Flatness | Tolerance of interpixel ≤ 0.3mm |
| Tolerance of modules clearance≤ 0.6mm |
| Power switch | Automatic switch |
| Display mode | 1024*768 |
| Communication distance | Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. |
| Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM |
| Software | LED media player software ect... |
Shenzhen Foxgolden Technology Limited, is one of the most impressing Hi-tech enterprises in China. Since 2004, we have been dedicating to the aim that making high quality products, and have been well integrated with R&D, production, project, capital and marketing.
As a professional and market-oriented LED display manufacturer, FOXGOLDEN not only keeps improving on normal LED display screen, enhances the product's cost-effective and overall market competitiveness, but also makes breakthrough progresses on special usages. Our products, with high quality and competitive prices, spread worldwide and earn excellent public reputation from both domestic and overseas market.
Foxgolden provides a full series of LED display products involving various single and dual color, text & image display; Indoor single & dual color, full color screen; Outdoor single & dual color, full color display; DOT matrix module display; Traffic applied product; And series of indoor & outdoor module.
Our company has provided our indoor & outdoor displays for various kinds of locations and events throughout the world. With high quality and perfect after-sale services, our professional products and solutions are highly complimented by the users, and we also earned high credibility from them.
With cultivation for high-quality production management team and project team, high quality products and local maintenance service; We achieved zero complaint in product quality for 3 constant years. That's why Foxgolden has received comprehensive attentions from LED industrial experts these years.
