| Prod Model: |
HH-ALEDD02 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Certificate: |
CE ISO9001 2004 ISO4001 2008 |
| Advertising Billboard: |
Three Message Sign |
| Motor: |
120W Original Panasonic Motor |
| Usage: |
Outdoor Advertising |
| Common Name: |
Trivision or Trivision Signs or Trivision Board |
| Drive System: |
Double Bevel Gear Driving System |
| Wind Resistance: |
No Less Than 10 Class with Automatic Wind Resistan |
| Driving Component: |
PA66 Industrial Nylon and Cordura (America DuPont) |
| Power: |
220V/50Hz, 0.54A |
| Type: |
LED Billboard |
| Material: |
Aluminum Plate |
| Anti-wind Capability: |
Strong |
| Waterproof: |
Waterproof |
Product Description
Are you tired of ordinary advertising screen? Are you bored with common LED display?
Do you want something different on your wall? Do you need some dynamic elements to decorate your building?
Now, just come here and have a look at our newest product!

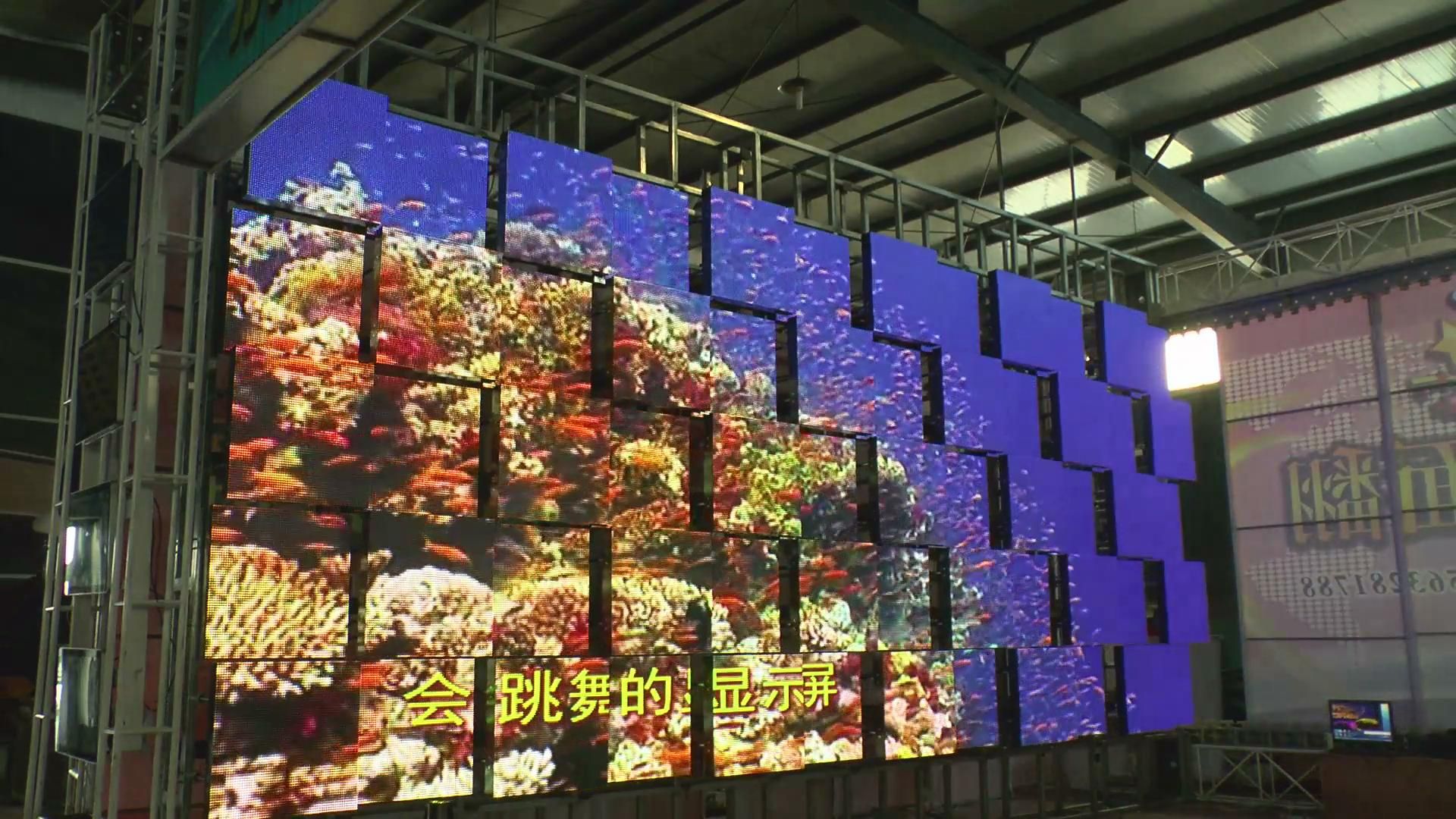

Our new product can dance! Yes! It can dance!
When it pop in and out on your wall, your building will become a landmark!

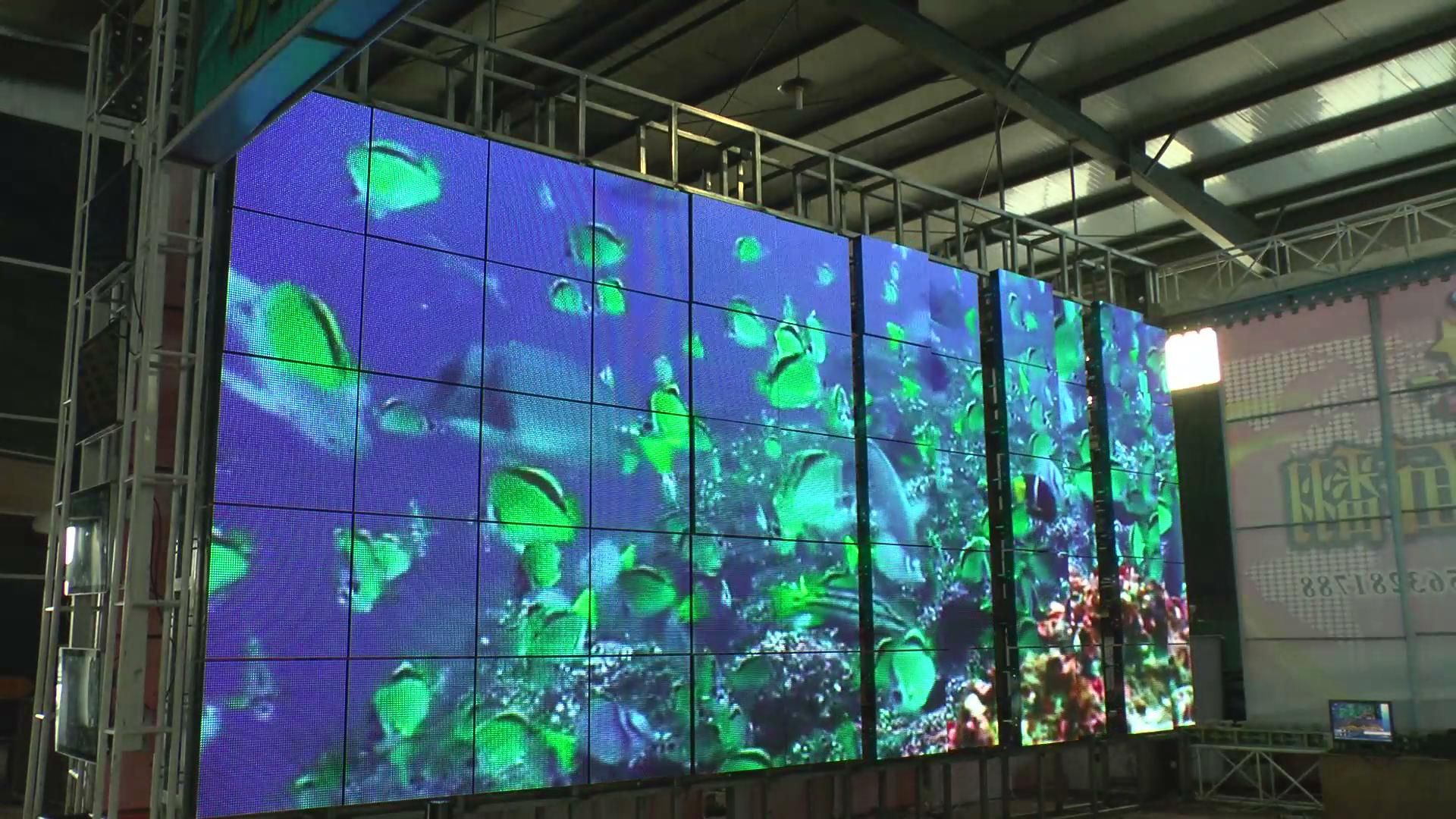

Product Show
Workshop
1. double gear driving to prevent gear running out
2. open-type stepping wheel, easy to be replaced
3. thick driving shaft, big bearing to increase life span
4. triangular cover adopt automatic protection principle to prevent damaging component while collision
5. connection shaft: load-bearing stand; double bearings used in rotating unit with one pressure bearing on top to expand life span
6. automatic bending machine is adopted in producing arc tri-vision display.
7. simple circuit: digital intelligent control; no more wires, socket type, 1 minute to replace
8. multi type of displaying in one machine
9. automatic wind resistance function
10.cold-proof function: the motor warm up automatically in -15'C to protect motor.
Specification
- Primary Material: Environmental aluminum alloy with advantages of firm, not easy to cause
deformation, durable and anti-oxidation.
- Motor: 90W original Panasonic motor, good heat dissipation, low vibration.
- Drive: cam propulsion system/double-gear steps driving system. The drive is steadies more compactness without deviation.
- Drive shaft: hollow aluminum shaft with diameter of 2.5cm, the twisting force is strong and the drive is smooth.
- Specification of external frame:136mm (width) * 136mm (thickness).
- Width of triangle prism:126mm, thickness:1.0mm 1.2mm 1.5mm 2.0mm
- Weight: about 16kg/square meter.
- Image combination: the height is suggested within 8m and the length is no limitation.
- Image flipping time: each face 6-12 seconds (preset ).
- Image resistance time: freely set from 0-900 seconds.
- Power supply: voltage 220v, current 0.54A, frequency 50HZ, power 90W.
- Power consumpt: 100 square meter consumpt 0.2kw per hour
- Wind resistance: no less than 9 Scale.
- Operation service life: qualified installation will ensure normal service life up to 10 years based on 16 hours each day.
- Flipping performance (customer can choose only one type)
A. synchronous B. Wave type C. Curtain opening type
D. Curtain closing type E. Flipping step by step. F. Flipping from part to part. - Available forcommercial blocks, T pattern pole, upper building ads, outside building ads, intersection, overpass, super highway, ect
Our Services
Guarantee and After-Sale ServiceLifetime guarantee for all components and domestic made motor
One year guarantee for Panasonic Motor
24 hours technical support by emails
Calling service
User-friendly installation
Company InformationA Reliable and Solid Partner
More than 20 years experience.
Each part of every product is proof of
SHG's experience and perfectionism.New
Designs are developed to ensure that SHG
Displays always meet the demands of the time.
SarahWang
Mobile:+8613396376322
Honghai Photoelectric Group Co., Ltd. is an outdoor advertising equipments company in China. We specialize in all kinds of Outdoor advertising equipments. Our main products contain: Trivision billboard/LED trivision billboard/LED screen/scrollig light box/rotating equipment/bus shelter etc.
We adopt advanced technology to realized all sets digital control production. Thousands of projects were achieved by our company are all over China and other countries. In 2010, our trivision display was used exclusively in Shanghai World Expo.
