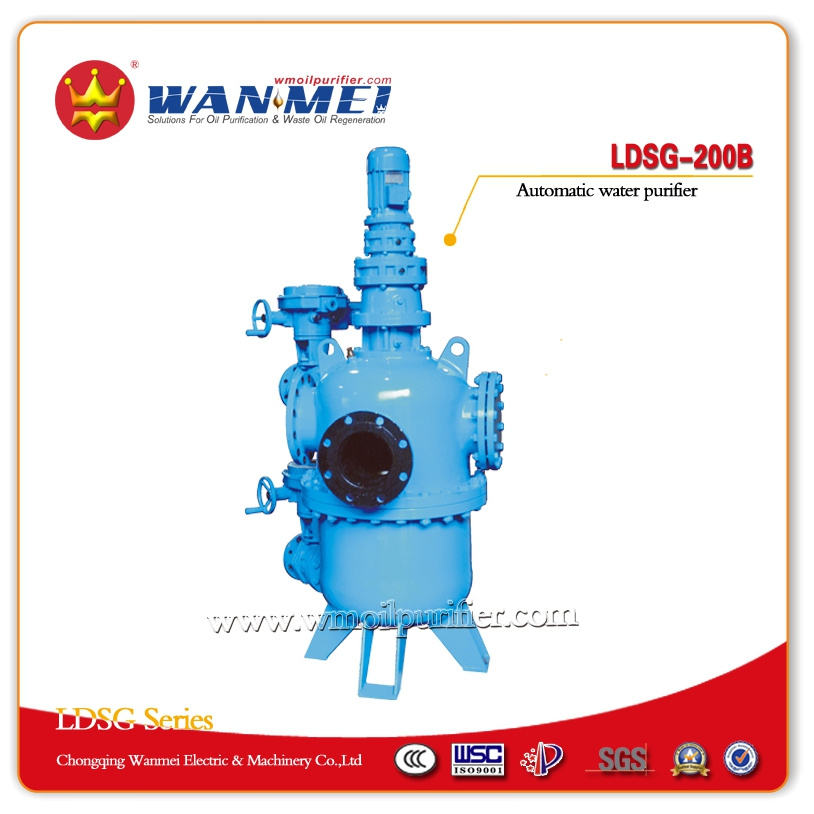

Ldsg Series Automatic Water Purifier
| Price: |
US $ 1000-5000/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
| Prod Model: |
LDSG-200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Ozone Water Purifier |
| Usage: |
Environmental Protection |
| Motive Force: |
Electric power |
| Certification: |
ISO9001 |
Product Description
LDSG series automatic water purifier absorbs the latest water filtration technology from home and abroad, it is an new full automatic water filtration equipment with up and down complex waste drainage designed by Wanmei Company. It is mainly used in water supplying automation of electric station technology of water supplying system. It is specially suitable for the automatic filtration, washing and waste drainage for the water in the river with large amount of floating materials, which is also used to purify the water in metallurgy and electric power, and chemical industry etc.
Characteristic
1. Multiple filter elements are installed in the water purifier evenly, the filtration net area is large, containing pollutant capability is strong, and the working efficiency is high.
2. The water in mode of the machine is reasonable, which make it hard for the floating materials to enter the filtration bucket to avoid the block of filtration net
3. Up and down waste drainage is adopted, which makes it easier for the floating materials and sediment to be drained out completely.
4. It can drain pollutants at regular time according to your set. When the pressure difference of entrance and exit reaches the fixed number, it can drain pollutants automatically or by hand. The amount of water for back- washing is small.
5. The machine is set protection function for trouble, with high-pressure alarm, electric breakdown alarm, waste drainage breakdown alarm.
6. The water purifier uses stainless steel filtration net. The ability of resisting acid and corrosion is strong.
7. Control system use PLC controller, which can communicate with high-position machine through machine group LCV. The high position machine can monitor and control the water purifier.
8. The machine is fit for the water supply system of electric station with nobody on duty.
9. The machine is set two special holes for filter element to be examined and repaired, it is no need to lift the equipment when repairing, the filter element can be taken out from the holes to be washed directly, it is really convenient and time saving. | Model & Technical Indexes: |
| Model | LDSG-50 | LSDG-100 | LSDG-150 | LSDG-200 | LSDG-250 | LSDG-300 | LSDG-400 | LSDG-500 | LSDG-600 |
| Flowrate/m 2 /h | 50 | 100 | 150 | 200 | 250 | 300 | 400 | 500 | 600 |
| Inlet(Outlet) Diameter/mm | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 |
| Waste Outlet Diameter/mm | 40 | 50 | 65 | 80 | 100 | 125 | 125 | 150 | 150 |
| Decelerating machine Power/KW | 0.18 | 0.18 | 0.37 | 0.37 | 0.55 | 0.55 | 0.75 | 1.1 | 1.5 |
| Power Supply | 380V. 50HZ(set as users' requirements) |
| Working pressure/Mpa | 1.0 or 1.6 Mpa(set as users' requirements) |
| Filtration precision (mm ) | 0.01-6mm |
| Timing Set Range | 0~30h |
| Self-Washing Time | 5s~10s |
| pressure loss/Mpa | 0.01~0.03 |
| Control system | PLC Control |
| Higest Working Temperature | 65 °C |
