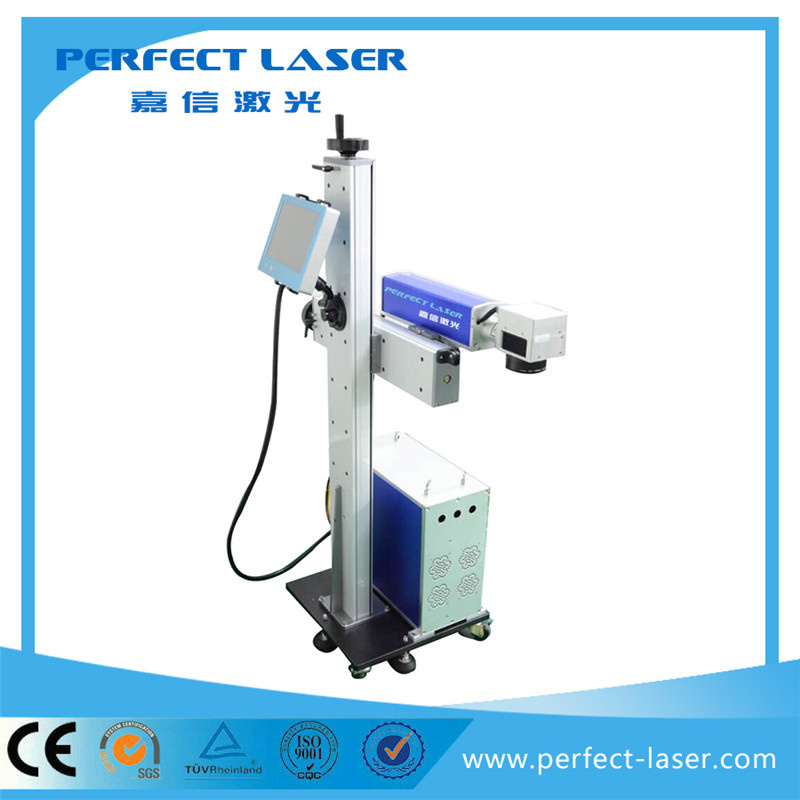

LCD Touch Screen Online Flying for Prodiction Line Cable Laser Marking Machine (PEDB-LCD20W)

Prod Model:	PEDB-LCD20W
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Watt:	20W
Laser Source:	Ipg Raycus Max Mopa
Working Size:	110*110mm
Voltage:	110-220V

Product Description

LCD Touch Screen Online Flying for prodiction line Cable Laser Marking Machine (PEDB-LCD20W)

Industry application
Laser online marking machines are widely used in food, beverage, alcohol, electronic components, handicrafts, chemical and industrial building materials, cables, card printing and other products. They're used to mark expiry date, batch number, shift, bar code, manufacturer's name and logo, etc.. They can mark on metal, plate coating layer on metal surface, PVC, PET, ABS, PP and PS, etc..

Working principle
When the marked product goes through the laser marking machine on the production line, the photoelectric sensor gives a trigger signal. At the same time, the marking software obtains the current speed of production line by high-speed encoder and automatically amends and compensates for the marking pattern. The laser and galvanometer controlled by bus board emit light according to the corrected pattern to mark the online product accurately.

Hardware features:
The marking process is automatic, high-speed and efficient. The marking effect is fabulous;
It uses self R&D fiber laser, which has advantages of high optical conversion efficiency, small size, low cost, no consumables and maintenance-free;
It bears the capability of 7*24 hours continuous working, which can meet the requirements of large-scale online continuous production;
It can achieve the communication without delay between the laser and the bus board. Compared with the product equipped with the same configuration, the marking speed has doubled;
It adopts the special scanning galvanometer system of the marking system, which can not only improve the overall stability of the product, but also guarantee the good quality in high-speed marking.
igh-precision bracket can realize high precision adjustment of the optical system up and down, back and forth and from any angle, which can fully meet the marking requirements of the different production lines.
High-speed encoder bears high reliability, long lifetime, strong anti-interference and high resolution up to 3600 pulse / circle, which can guarantee good quality.
High-precision photoelectric sensor bears high sensitivity detection to the target, which can effectively avoid information omitted and mistaken etc..

Software features:
It uses hardware DSP chip card and can finish calculation in 1us and real-time positioning in 10us, which ensures no omission and no deformation in high-speed flight;
It uses LINUX kernel and its operating system is cleaner and safer, and not easy to be poisoned and suddenly interrupted;
The  optimum graphics optimizes marking path control algorithm. When using the same laser power and galvanometer, it spends less time to mark, and make production line faster and more efficient.
When printing movable words in high speed, it supports double Buffer and mark without delay;
Under the inductive mode of external sensor, it can memorize 16 sets of trigger position, which makes the trigger switch position more flexible and it provides intelligent omission detection to prevent omissions, improving  efficiency;
It can realize not to mark on the intersection of words and graphic, which can effectively avoid overlap. And the words with intersections are specially dealt with, which improves the marking speed;
It supports super long text (it can edit 16-meter text and graphics and control paragraph space of marked content better);
The marking content is more comprehensive which includes common graphs (point, line, circle, rectangle, etc.), fixed text, movable text (serial number, date, shift, random number, txt), vector graphics (dxf, plt, dot), and bar code (one / two-dimensional code, movable text rules);
It can realize high-speed communication marking (RS232 communications, TCP/IP communications), and  real-time alarm on omissions;
It provides intelligent guide set function, which greatly speeds up the installation and setting of laser marking machine on the production line;
It has multilevel password protection to avoid operation error;
It can mark under network remote control;
Its I/O port is open, which makes procedure marking more convenient and connection with external equipment better.

Laser type	Fiber laser	Maximum scanning speed	10000mm/s
Laser wavelength	1064nm	Cooling	Forced  air
Average output power	20W(optional)	Supply requirements	220V 50Hz
Repetition frequency	20kHz-60kHz	Consumption	≤0.5kw
Line width	0.15mm	Environmental temperature	-5ºC-45ºC
Minimum character height	0.5mm	Environmental humility	10%-90%
Marking range	110mm×110mm(differing from the lens)	Maximum speed adapting production line	200m/min(differing from the contents and materials)
Marking lines	Random in range	Software	Special system
Displacement accuracy	±0.001mm	Hand-held display terminal	10.2 inch
