| Prod Model: |
HV55 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frame: |
Aluminum |
| Resolution: |
1920X1080 Full HD |
| Size: |
84, 70, 65, 55 Inch |
| Display Technology: |
LED |
| Overall Size: |
1568 X 993 X 91 / 1315.6 X 835 |
| Contrast: |
4000:1 |
| Viewing Angle: |
178° |
| Interface Type: |
USB |
| Screen Size: |
50-60 Inches |
| Aspect Ratio: |
4:3 |
| Application: |
Education and Training System |
| Screen Type: |
Infrared |
| Customized: |
Non-Customized |
| Resistive Touch Screen Type: |
Infrared |
Product Description
Dong Guan RioTouch Technology Co., Ltd
2nd Floor, No.8 plant, Xing Wu Road, Wusha, Changan Town,
Dongguan City Guangdong province China
Tel:(86) 0769 38805088 Fax:(86) 0769 38805089
web: www.RioTouch.com

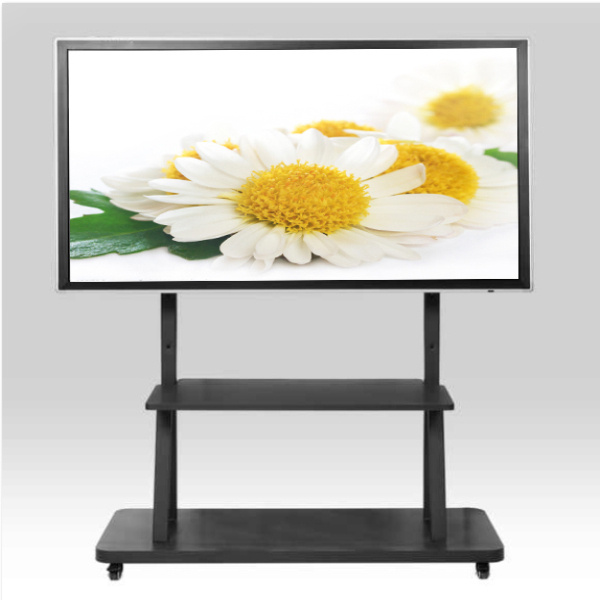

Riotouch 55" LED Touch Monitor Specification
Model Rio-HV55
Image:
LCD
Parameters
Size 54.6"
LCD Brand LG
Packing
Parameters
External Size 1307*777*107mm (without base)
Touch Size 1209.6*680.4mm
Plywood Carton Size 1440*260*1030mm
Net weight 31KG (without wall-mounted)
Gross Weight 55kg
Carton Size with wooden box 1500*330mm*1150mm +/- 50mm
Gross Weight with wooden box 85kg
Power
Parameters
Power < 200W
Standby Power <1W
Display
Parameters
Active Display Area 1209.6(h)x680.4(v)mm
Pixel Pitch 0.630(h)x0.630(v)mm
Display Colors 16.7M/1.06B (8-bit/8-bit +FRC)
Number of Pixels 1920x1080 pixels
Brightness 400cd/m2
Viewing Angle 178 Degree
TV
Parameters
TV Standard NTSC M/N,PAL BG/DK/I/H,SECAM L/L
Multimedia Formats MPEG1,MPEG2,MPEG4,H264,RM,RMVB,MOV,MJPEG
USB2.0 Multimedia Playback Vido/Audio/Picture
USB System Upgrading Online Support USB online upgrading function
Resolution Max. 1080P format
HDMI V1.3, 720P/1080P
HDCP V1.1
3D DNR Support 3D video DNR
Scanning Format Support 1080i 3D Video crisscross DAS (Dynamic Adaptive Scan )
Sound Control
Automatic sound standard detection, support for balance adjustment and
surround Sound
Sound Output 2X10W
Input and
output ports
USB Multimedia Input ports 2-line
Touchscreen port 1-line USB2.0
HDMI Input port 2-line (HDMI1 keep for Inside OPS)
VGA Input port 1-line
PC Audio port 1-line
UPBRP audio and video input port 2-line
AV Input port 2-line
S-VIDEO port 1-line
SPDIF port 1-line
Touch
parameters
Touch Technology Infrared touch technology
Touch mode Single, multipoint,Mouse click
Inductive objects Finger,pen or any other opaque objects
Inductive size Diameter≥5mm
Resolution 32767*32767
Response time
1) First dot(click):8ms, continuously(writing):3ms
2) multipoint click:first dot(click):8ms,continuously(writing):8ms
3) Mouse click:first dot(click):8ms,continuously(writing):8ms
Cursor speed UP to 300 dots/s Multipoint,mouse click:125 dot/s
Operating life ≥60,000,000 times to click
Power USB power supply (4.6-5V, DC)
Power consumption ≤1w
Operation Systerm Windows 8, windows 7, XP, Mac, Linux
Calibration
HID devices standard, accord with Win7 multi-touch protocol, no need special
software to calibrate, just use Table PC setting to finish the calibration.
Anti-light decay function
Anti-light decay circuits to prevent the performance degradation caused by
long working hours
LED Test Software
Supply touch screen LED test software to test the function of each couple of
the LED lights and the drawing functions
Antilight interference function can work properly in direct sunlight condition
Standard
Accessories
without PC
Remote Control TV Remote control
USB cable 1.5m USB cable for touch monitor, USB2.0
VGA cable 1.5m VGA cable
Audio cable 1.5m audio cable
CD 1 pcs
Pens without ink 2 pcs
Teaching Pointer 1 pcs
User manul 1 pcs
Wall brackets Screws, wall mount kits
Standard
Accessories
with PC
Remote Control TV Remote control
CD 1 pcs
Pens without ink 2 pcs
User manul 1 pcs
Teaching pointer 1 pcs
Wall brackets Screws, wall mount kits
Optional
Configuration
Three types of OPS PC for choice
Version 1(Standard PC)
Motherboard Intel NM70
CPU Intel 1037U 1.80GHz
RAM DDR II 2G
Hard Disk 500G
Version 2 (Medium configuration PC)
Motherboard Intel Hm76
CPU Intel i3-3227U
RAM DDR II 4G
Hard Disk 500G
Version 3 (High configuration PC)
Motherboard Intel Hm77
CPU Intel i5-3337U
RAM DDR II 4G
Hard Disk 500G
Other
Accessories
Wireless Mouse Optional
Android Optional
Wifi
