| Prod Model: |
TG240128A-05T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Display Format: |
240X128 Dots |
| Display Mode: |
Stn, Transflective, Positive, Y-G |
| Outline Dimension: |
144.0 X 104.0mm |
| Viewing Area Size: |
114.0 X 64.0mm |
| Certificate: |
RoHS, ISO9001:2008 |
| Warranty: |
12 Months |
| Backlight: |
Yellow-Green/Bottom Lights |
| Type: |
Graphic |
| Usage: |
Small-sized LCM |
| Display Technology: |
STN |
Product Description

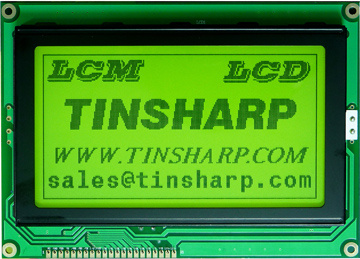

5.0V 240X128 Graphic Transflective Positive lcd display (TG240128A-05T)
FUNCTIONS & FEATURES
1) Construction SMT
2) Display Format 240x128 dots
3) Display Type STN, Transflective, Positive, Y-G
4) Controller T6963C or equivalent controller
5) Interface 8-bit parallel interface
6) Backlight yellow-green/bottom lights
7) Viewing Direction 6 O'clock
8) Driving Scheme 1/128 Duty Cycle, 1/12.2 Bias
9) Power Supply Voltage 5.0 V
10) VLCD Adjustable For Best Contrast 17.8 V (VOP.)
11) Operation temperature -20°C to +70°C
12) Storage temperature -30°C to +80°C
Packaging & Shipping
48pcs/ctn, 10kgs/ctn; carton size:38x28x28cm;0.03CBM
Our Services
Factory direct sales LCD display in variety display color and size
We can also design and manufacture the LCD panel of TN, STN, FSTN, color STN
And some other special types, such as LCD module of COB, COF, TAB and COG.
Customized models are welcome, how to get the customized model?
Step1: Send your original drawing or samples or photos, if you don't have these information, tell us your requirement.
Step2: According to your details, we give you the approximate price send you the draft drawing.
Step3: After you confirm our drawing, and we give exact price.
Step4: Sample will be made after you arrange the tooling charge, samples is ready around 20 days.
Step5: After samples confirmed, mass production is accepted.
Company Information
Established in 1995, Guangzhou Tinsharp Industrial Co., Ltd. is one of the major manufacturers of Liquid Crystal Displaying (LCD) products in China.
Having accumulated precious experience in this field, our production capacity and expertise have been growing sharply along with the market share. With the support of our professional and devoted work team specialized in both R&D and total quality control, we are able to supply high quality products in the LCD and Liquid Crystal Modules (LCM) areas. Moreover, both standard series and customer-tailored products are available.
Specifically, the main products include:
1) TN/STN/FSTN LCD panels
2) Segment LCD modules
3) Character and graphic LCD modules
Our products have been widely used in many fields, such as measuring instruments, electrical appliances, and communication terminals. About one third of our products are selling well in the American, East Asian, and European markets.
Presently, we are looking forward to even greater cooperation with overseas customers based on mutual benefits. Please feel free to contact us for more details.
Established in 1995, Guangzhou Tinsharp Industrial Co., Ltd. is one of the major manufacturers of Liquid Crystal Displaying (LCD) products in China. We specialize in design, manufacture and sale of LCD and LCD modules.
Having accumulated precious experience in this field, our production capacity and expertise have been growing sharply along with the market share. With the support of our professional and devoted work team specialized in both R&D and total quality control, we are able to supply cost-effective and quality guaranteed products in the LCD and Liquid Crystal Modules (LCM) areas. Moreover, both standard series and customer-tailored products are available.
Specifically, the main products include:
1) Character and graphic LCD modules
2) Segment LCD modules
3) TN/STN/FSTN LCD panels
4) Customized LCDs/LCD Modules
Our products have been widely used in many fields, such as measuring instruments, electrical appliances, and communication terminals. About one third of our products are selling well directly and indirectly in the American, East Asian, and European markets.
