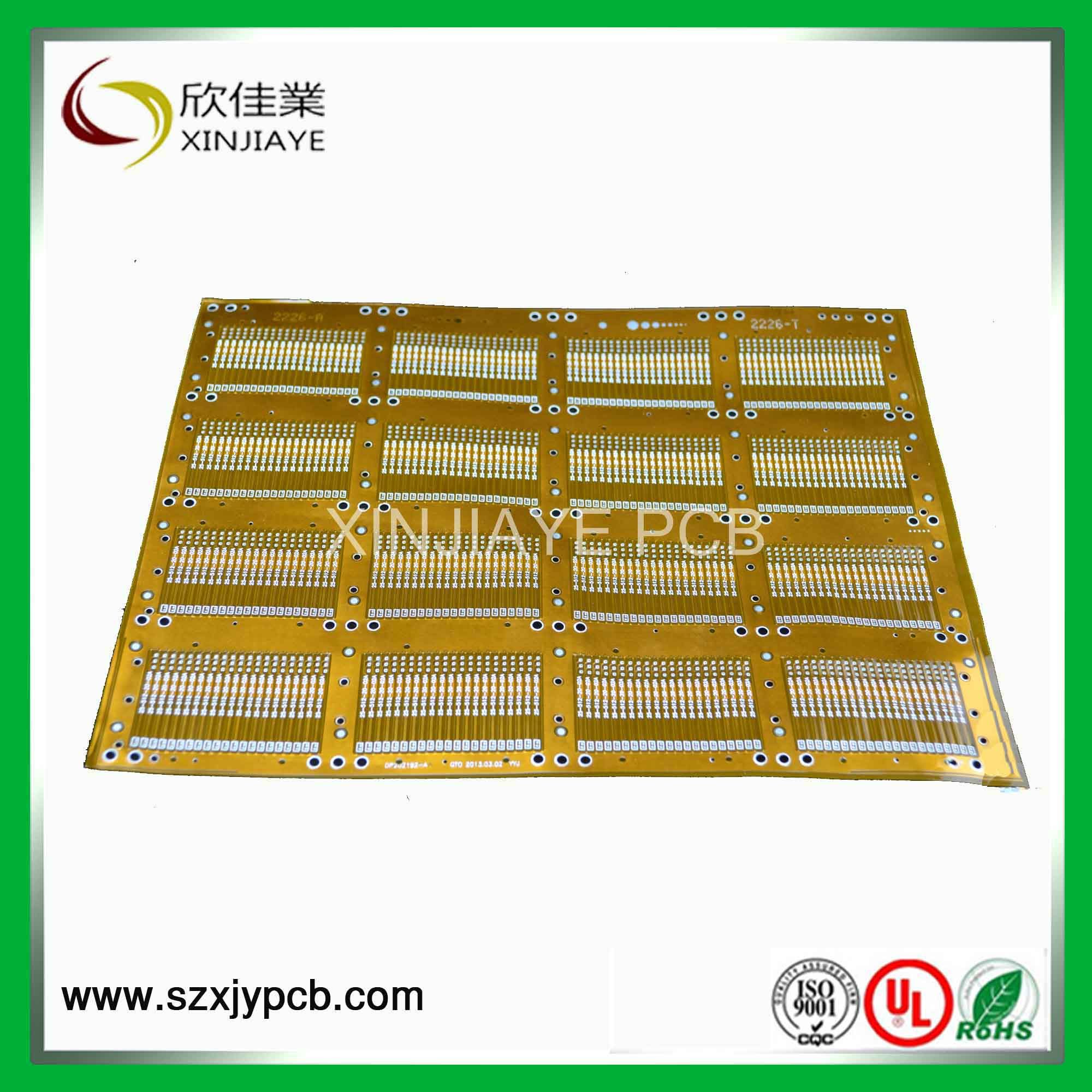

LCD FPC Cable

LCD FPC Cable
Price: US $ 72/Square Meter
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,D/P,Paypal,Money Gram
Prod Model: XJYPCB-13
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Base Material: Membrane
Surface Finishing: Enig
Copper Thickness: 35um
Board Thickness: 0.1mm
Min. Hole Size: 0.15mm
Min. Line Wigth: 0.25mm
Min. Line Spacing: 0.25mm
Material: Polyester Film
Structure: Double-Sided FPC
Application: Display Screen
Combination Mode: Adhesive Flexible Plate
Conductive Adhesive: Conductive Silver Paste

Product Description

PCB details:
1/1 OZ FPC

* 2layer FPC
0.2 mm board thickness FPC

*  Space/Width line :6mil/6mil
* Fast delivery, anti-static package
* RoHS Directive-compliant, lead-fre


Testing Procedures For FCB Board
---We perform multiple quality assuring procedures before shipping out

any PCB board. These include:
* Visual Inspection
* Flying probe
* Bed of nails
· * Impedance control
· * Solder-ability detection
* Digital metallograghic microscope
· *AOI (Automated Optical Inspection)


Detailed Terms for PCB Manufacturing
---Technical requirement for PCB assembly:
* Professional Surface-mounting and Through-hole soldering Technology
* Various sizes like 1206, 0805, 0603 components SMT technology
* ICT(In Circuit Test), FCT(Functional Circuit Test) technology.
* PCB Assembly With UL, CE, FCC, RoHS Approval
* Nitrogen gas reflow soldering technology for SMT.
* High Standard SMT&Solder Assembly Line
* High density interconnected board placement technology capacity.


Delivery Time for FPC board
1) FPC production time: Sample: 2-3 days / mass production: Within 7 days
2) Components purchase: 2 days if all components is available in our domestic market.
3) FPC Assembly: Samples: Whthin 2 days / mass production: Within 5 days


Quotation Requirement:
Following specifications are needed for quotation:
A) Base material:
B) Board thickness:
C) Copper thickness
D) Surface treatment:
E) color of solder mask and silkscreen:
F) Quantity


Shipping Method and Payment terms:
1. By DHL, UPS, FedEx, TNT using clients account.
2. We suggest you using our DHL, UPS, FedEx, TNT forwarder.
3. By EMS (Usually for Russia Clients), price is high.
4. By sea for mass quantity according to customer's requirement.
5. By customer's Forwarder
6. By Paypal, T/T, West Union, etc.


FPC Process Capability
· processing layers:1-6 layers
· Finished thickness (thinnest): 3mil (0.08mm)
· Minimum aperture: 4mil (0.10mm)
· Minimum line width / spacing: 2 mil (0.05mm)
· Maximum board size: 10 "x 45" (250x 1200mm)
· Surface Treatment: OSP,  HASL, Electric Nickel / Gold, , Chemical nickel / gold, lead-free HASL, Immersion Gold
· Insulation resistance: ± 1011Ω (Normal Normal
· Thermal shock resistance: 260 °C 10 sec.
· Processing materials: polyimide (PI), polyester (PET), polyimide (PI) + FR4


Double sided flexible circuit (FPC)
Consists of double-sided copper clad material with top and bottom cover films (PI or Green/Yellow Oil, Carbon Ink, etc).
Two conductive layers with an insulating layer between, plus conver layers on outer layer. The cover
films are pre-routed to access copper from both sides using plated thru holes(PTH).

Other Service:
A) We have many special material as rogers, teflon, taconic, Fr-4 high tg, Ceramic in stock. Welcome to send us your inquiry.
B) We also provide sourcing components, PCB design, PCB copy, PCB drawing, PCB assembly and so on.so provide sourcing components, PCB design, PCB copy, PCB drawing, PCB assembly and so on.





Founded in April 2005, ShenZhen XinJiaYe Electronics Technology Co., Ltd. is specialized in the production of high density PCB and administrated by several PCB professionals. At the beginning of 2008, in order to provide customers with high quality PCB at better price, her owner rebuilt a new factory by investing additional 15 million in JIANG XI province XinFeng city, where there are enough environmental facilities and cheaper hydropower labor, to control the mass production cost at a competitive advantage.

XJYPCB is a PCB manufacturer specializing in quick turn prototype and batch quantity also offers one-stop service from layout to assembly. Producing Rigid PCB from 1layer to 10layer, FPCB from 1layer to 4layer, we are well-organized to grant our customers with best quality PCB' S at much lower cost. Our quick turn prototype production in Shenzhen allows us to provide short lead time and world class customer service at the same time, batch quantity production in Jiangxi helps us minimize labor cost and maintain high quality.

8, 000, 000 SMD points every day including BGA assembly and 6 DIP production lines (Lead free dual wave soldering machine) can satisfy the customer what will he want.

Our factories have ISO-9001: 2008 and UL Certification. With more than 500 employees, she is growing and her latest manufacturing outputs achieve more than 10, 000 square meters of double-sided PCB boards and 8, 000 square meters of multilayer PCB boards per month.

We are servicing our customers all over the world and gain their testimonials.

Our mission is to provide dependable full service PCB and best price for global customers. XJY is continuously improving our capabilities and processes to reduce operational costs and improve PCB quality.

In order to meet our clients needs, now we open A Line to assembly some kind of headphone and USB flash disk. Pictures and specifications show in our product list. Welcome to choose!

XJYPCB welcomes you to join us and experience our dedicated service to the printed circuit board industry. Whether you have a project to quote or are working on a new project and just want to talk with our knowledge staff, please feel free to call. We look forward to working with you throughout the entire life of your business.
