| Prod Model: |
HZJY-683 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Power: |
Electronic |
| Model Number: |
Hz-683 |
| Usage: |
High Voltage Testing Machine |
| Language: |
English |
| Max Reading: |
9999 |
| Interface: |
RS-232c |
| Power Supply Voltage: |
198VAC~240VAC |
| Frequency: |
50Hz |
| Output Voltage: |
1V~1000VDC |
| Warranty: |
1 Year |
Product Description
LCD Display Connect with Computer Portable Digital Megger
I.Introdution for LCD Display Connect with Computer Portable Digital Megger:

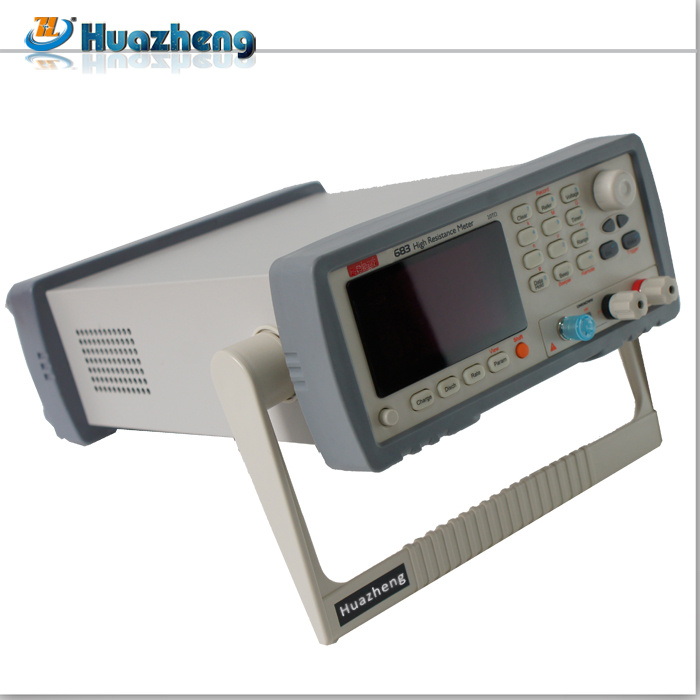

The HZJY-683 High Resistance Meter is an MCU controlled measuring instrument for direct readout of resistance and current. The voltage applied to the device under test (DUT) is programmable from 1 to 1000 volts. A pass/fail indicator provides a visual display of test results based on a preset limit.
The HZJY-683 High Resistance Meter is designed for measuring very high resistance and related parameters of insulation materials, electronic components, and electro-mechanical components.
II.Parameter for LCD Display Connect with Computer Portable Digital Megger:
Parameter | Leakage current and insulation resistance |
| Output Voltage | HZ683: (NC)1V~1000VDC |
| Accuracy | <10G:3%, ≥10G: 5%, ≥100G:10% |
| Measurement Range | 100kΩ~10TΩ
10V: 100kΩ~100GΩ;100V: 1MΩ~1TΩ;1000V: 10MΩ~10TΩ |
| Max Reading | 9999 |
| Range | Automatic and Manual |
| Speed | 55 times/second,15 times/second,3 times/second |
| Adjustment | Open-circuit Zero-Adjust for each range |
| Result Display | Show, current, resistance, peak value, and sorting result |
| Charging Timer | 999.9s |
| Comparator | 30 sets record,GD/NG Beep: GD,NG,OFF setting. |
| Interface | RS-232C interface Handler interface
(AT682SE optional interface) |
| Others | VFD four color high-definition screen,keypad lock and data hold function |
| GENERAL FEATURES |
| Power Supply | Voltage: 198VAC~240VAC Frequency: 50Hz Power: Max 30VA |
| Dimension | 264(W)mm x 107(H)mm x 350mm(D) |
| Weight | 5kg |
| ORDERING INFORMATION |
| Accessories | ATL507: Test Clip |
| ATL108: RS232 Interface Cable |
III.Company Information
HuaZheng Electric Manufacturing (Baoding) Co.,Ltd is the supplier of the State Grid in China.It means we are the supplier of the Chinese Government.And our products spread throughout the whole China.
What's more, our customers come from different countries like America, England, Bulgaria, Brazil, Chile, Malysia, Vietnam and so on.
Our main products are Insulation Oil Tester, Cable Fault Locator, Power Quality Analyzer, High Voltage Generator, High Voltage Capacitor, Testing Transformer and so on.
IV.FAQ for LCD Display Connect with Computer Portable Digital Megger
1. Q: What is the language? After sale service? Warranty?
A.Yes,English version. After sale service. Warranty: 1 year.
2. Q: What is the highest voltage the instrument can test?
A: The instrument can test up to 100KV, OEM is also ok.
3. Q: Whether can communicate with computer , RS232?
A: Yes, it can communicate with computer. It has RS232.
4. Q: Whether does it have battery or liquid ? Convinent to delivery?
A: It has a little Li-battey , no liquid, which does not influence the delivery.
5. Q: Does this instrument have the priter ? Automatically or by hand?
A: Yes, it has, you can set up whether to print the result automatically or by hand.
6. Q: How many times can it test once? How to get the result?
A: It can test 1-6 times (according to your requirement). Result is the average of testing
times.
