| Prod Model: |
YN-700P |
| Markets: |
South America,Africa,Oceania,Mid East,Western Europe |
| Item: |
Square Type Ice Cube Maker |
| Energy Consumption: |
30kwh/24h |
| Net Weight: |
113kg |
| 40' Stuffing: |
44 |
| Dimension(Wxdxh): |
700X850X1678mm |
| Ice Making Mode: |
Water Flowing Mode |
| Shell Material: |
Stainless Steel AISI 304 |
| Ice Capacity: |
700/318kg/Day |
| Storage Capacity: |
440/200kg |
| Warranty: |
1 Year for Cabinet,3 Years for Compressor |
| Control: |
Electric |
| Structure: |
Integral Type |
| Material: |
Stainless Steel |
| Application: |
Commercial |
| Condensing Mode: |
Air-Cooled |
| Filtering Device: |
With Filtering Device |
| Automatic Cleaning Device: |
With Automatic Cleaning Device |
| Ice Shape: |
Cube |
| Power: |
1530 |
Product Description

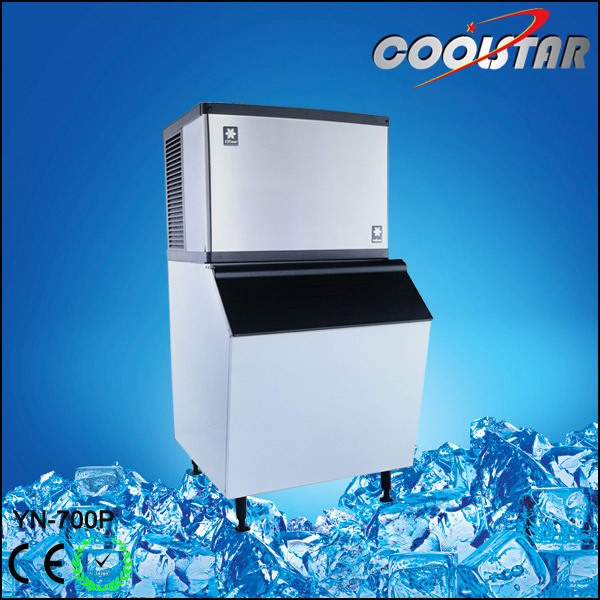

Cubic Type Ice Making Machine -Water Flowing Mode Ice Cube Maker (YN-700P)
Features:
* Water flowing mode ice cube making,large ice making and storage capacity
* Full stainless steel and automatic ice making and cleaning design ensure durability,sanitation, easy maintenance.
* Vertical evaporator enables fast ice-making and ice-falling process,water and electricity saving
* Ice storage barrel adopts PE integral revolving molding(seamless)with good heat preservation, reach food-grade standard
Model | Capacity (Pound/kg/day) | Storage Capacity (Pound/kg) | Power Supply (W) | Power Consumption (Kwh/24H) | Dimension (WxDxH) (mm) | N.W (kg) | 40' Stuffing (pcs) | Approval |
| AX-100 | 100Kg | 25Kg | 720 | 5.76 | 570x670x960 | 75 | 160 | CE |
| YN-350P | 350/160 | 240/110 | 830 | 6.8 | 560x800x1608 | 75 | 120 |
| YN-500P | 500/227 | 440/200 | 1180 | 7.8 | 700x850x1618 | 97 | 120 |
| YN-700P | 700/318 | 440/200 | 1530 | 30 | 700x850x1678 | 113 | 44 |
| YN-1000P | 1000/454 | 440/200 | 2060 | 50 | 700x850x1738 | 141 | 35 |
| YN-1500P | 1500/681 | 1100/500 | 2860 | 70 | 1220x850x1963 | 196 | 27 |
| YN-2000P | 2000/908 | 1100/500 | 3950 | 100 | 1220x850x2023 | 217 | 27 |
FAQ
1. MOQ: 20pcs for each model
2. Payment: 30% deposit after confirmation of order, 70% against Bill of lading after shipment, We also accept L/C, trade assurance, Paypal etc.
3. Warranty: All products are guaranteed for 1 year time,and compressors 3 years.
4. Spare parts: Coolstar provide 1% spare parts free of charge. Additional spare parts are supplied all year long.
5.Sample order : Coolstar is a bulk articles supplier, normally ship the order in container load, we reject 1 pc order. Coolstar normally doesn't accept sampe order, but when customer can show the potential of bulk order, we specially accept sample order, at 10% extra handling charge.
6.Ice capacity tolerance:Ice making capacity fluctuates according to water temperature and ambient temperatue, our capacity figure is marked under 15C ambient temperature, and 10C water temperature
7.What to do if the machine doesn't make ice: You can check the indicator lamp, whether it's water shortage,ice storage full etc, and process accordingly.
