| Prod Model: |
AJX-RO-100T |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Motive Force: |
Electric power |
| Type: |
Reverse Osmosis |
| Usage: |
Environmental Protection, Water Treatment |
| Vessel Material: |
Stainless Steel (FRP, Carbon Steel for Option) |
| Membrane Brand: |
Dow, Vontron, Ge, Filmtec, Toray |
| Desalting Rate: |
98~99.5% |
| Pump Brand: |
Nanfang, Grundfoss |
| Pipe Material: |
U-PVC / Stainless Steel |
| Option Filter: |
UV Sterilizer, Ozone Generator, Ect |
| Certification: |
CSA, ISO |
| Capacity: |
100t/H (Customized From 250L/H~500t/H) |
Product Description
RO water filter standard design, it is designed to treat ground water, tap water, river water, sea water to reach the drinkable standard and other industrial use standard. It can treat the raw water with high TDS, high salt, bacteria, color, smell and so on.
PROCESSES:

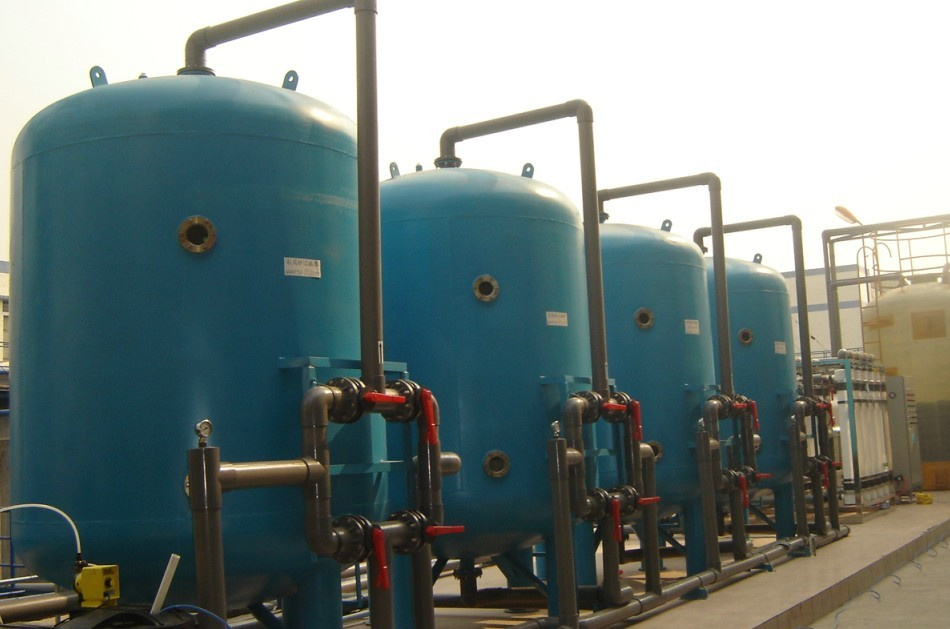

Raw water + raw water tank + raw water pump + quartz sand filter + active carbon filter + water softener + security filter + high pressure pump + RO system + pure water tank
(Customized up to the raw water quality and customer's requirement)
During the process, we will add the flocculant dosing system, anti-scalant dosing system, sterilizer dosing system, UV and ozone generator and so on according to your raw water quaity.
FEATURES:
· Stainless Steel 304 Frame
· Sand Filter FRP Tank with Mechanical Control Valve
· Carbon Filter FRP Tank with Mechanical Control Valve
· Water Softener FRP Tank with Mechanical Control Valve
· Thin Film Composite Membranes
· Stainless Steel 304 RO Vessels Seamless
· Horizontal Feed Pump
· Vertical High Pressure Pumps
· PLC Control
· Power On/Off Switch
· 5 Microns Pre-filter
· Product Water Flow Meter
· Concentrate Water Flow Meter
· High Pressure Pump Inlet Pressure Gauge
· High Pressure Pump outlet Pressure Gauge
· Concentrate Outlet Pressure Gauge
· Low Pressure Switch
· High Pressure Switch
· Heavy-duty PVC Piping
· Level Control On/Off
· Automatic Flush
· Low Pressure Shut-Off
· Optional UV Sterilizer, Ozone and SS Jacket
APPLICATIONS:
1. Water for food, beverage and wine making industry
2. Brackish water desalination
3. Sea water desalinization
4. Mobile water treatment system
5. Ultra-pure water for pharmaceutical industry
6. Pure water for chemical industry
7. Ultra-pure water for electronics industry
8. Pure water for electroplating industry
9. Ultra-pure water for solar PV industry
WHY CHOOSE US:
1. We have professional team, from design, manufacture, installation, ect, which can providing the best products to you.
2. As a professional team, we have full experience.
3. Satisfied service will make you ease.
4. Competitive price with short lead time.
|
Model No. |
Water Capacity |
Power input |
Conductivity of raw water |
Conductivity of pure water |
Desalting rate |
|
AJX-RO-100T |
100T(Customized) |
220V/380V/50Hz |
≤500uS/cm |
≤10uS/cm |
98~99.5% |
