| Prod Model: |
P10.66 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| High Brightess: |
10000 Nits, Customized Brightness Is Availble |
| Driving IC: |
Mbi 5020, Mbi 5024, Mbi5026 or Mbi5041, Mbi 5042 |
| Refresh Rate: |
>600 Hz |
| Control System: |
Asynchronous or Synchronous |
| Warranty: |
2 Years Warranty |
| Technical Support: |
Life Long Technical Support |
| Training: |
in House Factory Training or on Site Training |
| Tube Chip Color: |
Full Color |
| IP Rating: |
IP65 |
| Pixel Configuration: |
1R, 1G, 1B |
| Display Function: |
Video Display |
| Scanning Mode: |
Static Scan |
| Certification: |
FCC |
| Pixel Pitch: |
P10.66 |
| Pixel Density: |
8800 |
| Average Power Consumption: |
550 |
Product Description

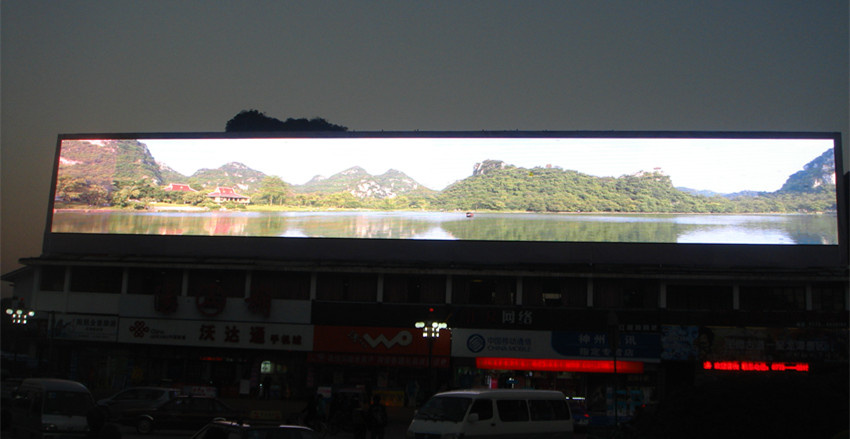

Outdoor full color LED display
Partner for Guangzhou Asian Games, Shanghai World Expo, Beijing Olympic Games, China-Asian Expo and Boao Asian Forum
Product Description
Product Description
Outdoor Full Color LED Display (P16 advertising LED Display Screen)/LED sign/LED wall
1.Full color outdoor LED display/LED display could be used in outdoor environment such as cultural or relax square, commercial walking street, residential sub-district, downtown, etc.Place, with the special of dampproof, windproof, sunproof, static proof, anti-freezing, waterproof, its purpose is to propagandize outdoor advertising or play the important news or events or TV program, enrich the resident's cultural life, advance the whole visualization of sub-district, etc.
(LED stage display, LED Outdoor video wall, Wedding LED display, The stage LED electronic screen, LED large screen full color display, advertising LED display, outdoor LED display, indoor LED display)
2.P10 Outdoor LED display Features of the product:
1) High brightness and be adjustable, meets the need of the changing requirement of customer in environment.
2) Having good lightening accordance and no mosaic.
3) Using virtual pixels, better viewing effect for both text & graphic and video.
4) Having larger viewing angle:Horizontal angle 100 degree / elevation angle 45 degree.Getting vivid effect within any position of the viewing range.
5) Any LED in each pixel can be respectively repaired, which reduce the cost of the display maintenance
6) Good heat emission capability
7) Environmental-friendly.
3.Description:LED Display /LED display screen/LED sign/LED video wall
1).Model No.:P10m, P12mm, P14mm, P16mm, P18mm, P20mm, P25mm, P31.25mm, P40mm, P50mm(DIP LED)
2).Display Color:256*256*256
3).LED Chips:Nichia, Cotco, CREE, AXT, Taiwan
4).Raw Materials:Toshiba IC, MBI IC, Chuanglian Power Supply, Meanwel Power Supply, Meanwel fans, ADDA fan, Beijing glue, Korean glue.
5).Cabinet:Standard cabinet, simple cabinet, customized cabinet, cabinet for rental, Iron or Aluminum cabinet, cabinet for front maintenance, cabinet with lock, Special cabinet with Southco Lock, for hung and rental and so on.
6).Package:Flight box, wooden box package
7).Guarantee:2 year with parts
Ability
Integration of industrial chain
Advanced Technology
Large-scale, standardized Production
Custom Design
Cost Control
Qualification
2010 Shanghai World Expo official sponsor
7 years design and manufacture full color display experience
Classic projects all over the world that would be time-tested
Certification
ETL certification
UL certification
SGS certification
3C certification
CE certification
ISO9000
RoHS certification
IP65 certification
EMC certification
Market
Advertising Media
Stadium
Scenery
ItemP10 advertising LED Display
Pixel Pitch:10mm
Driving Method:
Static duty
LED type:DIP 346
Brightness:>9000CD/m 2
Pixel density3096pix/m 2
Viewing angle:120°H and 60°V
Module Size(W*H)
256*256mm
Cabinet Size(W*H)
1024*1024mm
Cabinet weight:45kg
Cabinet Material:Aluminum
Avarage Power Consumption:420 W/m 2
Max Consumption:980 W/m 2
Refresh rate:>1200Hz
Color Depth:14bit
Voltage:200-240V
IP Rrating (Front/Rear):IP65/IP54
Operating temperature:-20-60 degree
Storage temperature:-40-70 degree
Operation humidity:10-90%
Storage humidity:10-90%
Life span (hrs)>55000
Control systemLinsn/Nova
Compliant standard:CE, CCC, FCC, RoHS
|
P10.66 outdoor full-color high-contrast LED display |
|
Item |
Details |
Parameters |
|
Pixel |
Physical |
10.66mm |
|
Pixel Configuration |
1R1G1B |
|
Module |
Module resolution |
24*24 pixels |
|
Module Size |
256*256mm |
|
Cabinet |
Physical resolution |
96*96 pixels |
|
Cabinet Size |
1024*1024mm HxW |
|
Physical density |
9216 pixels/cabinet |
|
Module quantity |
16pcs=4(h)*4(w) |
|
Material |
steel |
|
Weight |
55 kg Approx |
|
Power supply(5V60A) Quantity |
4 pcs |
|
Average power consumption |
410W |
|
Max power consumption |
1220W |
Electricity
parameter |
Brightness |
9000 nits |
|
Brightness adjusted |
100 grade by software or by Auto-optic induced |
|
Color processing |
8 bits |
|
Display color |
16 millions |
|
Color temperature(k) |
7200k |
|
Physical density |
3906 pixels/per square meter |
|
Whole display flatness |
≤ 1.2mm Juncture |
|
Best view distance |
9-65m |
|
Best viewing angle |
H≥100° V≥50° |
|
Storage temperature |
40 degree -5 degree |
|
Working temperature |
20 degree -50 degree |
|
Driving Method |
Constant driving current Scan: static |
|
Refresh frequency |
up to 300Hz |
|
Frame rate |
75Hz |
|
Humidity(RH) |
10%-90% |
|
Protection grade |
Front IP65, Rear IP54 if not specified |
|
Working voltage |
DC 5V |
|
Power supply |
AC 110V ±10% / 220V ±10% |
|
Average power consumption |
400W/M2 |
|
Max power consumption |
1200W/M2 |
|
MTBF |
8,000 hours |
|
Screen lifetime |
100,000 hours |
Control
System |
Control System |
Linsn |
|
Signal Interface |
DVI |
|
Communication distance |
CAT5cable:≤100m Fiber Cable:≥500m |
|
Signal transfer mode |
dot to dot synchronized with computer monitor |
