| Prod Model: |

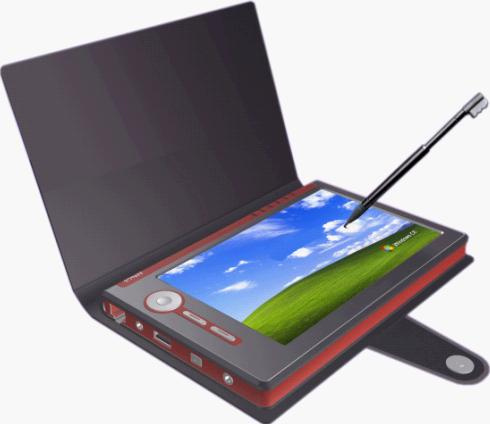

Laptop(AT-9688) |
Product Description
Main Features
- Super Slim Mini-Laptop
- 7" Touch screen Digital TFT Widescreen Display
- 400MHz CPU, 128MB RAM, 1GB Storage
- WinCE 5.0 net Operation System
- Building Stereo Speakers
- Internet Connect Port
- USB Port & SD/MMC Extend Storage Slot
- Internal Big Volumn Li-polymer Battery
- Support external USB standard Mouse & Keyboard
- Support external GPS, GPRS, WiFi module
-support"
- Support Electronic secretary, Meeting record with Audio
| Brand | AMANO |
| Customer model No. | AT-9688 |
| Safety and regulation | CE, FCC |
| | |
| AC cord | as requested |
| Display Features |
| Display Technology | TFT Digital Touch screen LCD Display |
| Screen | 7" wide screen |
| Resolution | 800 x 480 |
| Brightness | 300 cd/m 2 |
| Contrast | 300:1 |
| View Angle | 60º |
| Colors | 260K Ture Color |
| Hardware |
| CPU | Samsung A2440, 400MHz |
| RAM | 128MB |
| Internal Storage | 1GB Built-in Flash |
| Extend Storage | SD/MMC Card, up to 4GB |
| Keyboard | Support external keyboard |
| Hot Key | H1~H2 |
| Mouse | Support external keyboard |
| Reset Key | yes |
| Software |
| Operation System | WinCE 5.0 net |
| Office | optional |
| Internet Explorer | optional |
| Windows Media Player | optional |
| Others | as requested |
| Audio |
| Built-in Stereo Speakers | 1W x 1 |
| Earphone | 0.5Wx2 |
| Microphone(Build in) | 1 |
| Terminals |
| Power Input | 1, DC 5V |
| Mini USB Port (DEVICE) | 1 |
| Standard USB Port | 3 ( 500MA x 1 , 100MA x2 ) |
| SD/MMC Card Reader | 1 |
| Network Connect (RJ45) | 1 |
| Earphone Output | 1 |
| Accessories |
| Rechargeable Battery | Li-polymer Battery 3.7V, 3000mAh |
| AC/DC Power Adapter | 1 |
| USB Cable | Optional |
| Stereo Headphone | 1 |
| Touch pen | 1 |
| Guide Manual | 1, English |
| Protection bag | 1 |
| Power supply | AC 100-240V 50/60Hz, DC 5V, 2.0A |
| Shipping Details |
| Dimension (WxDxH)-Unit | 196×126×16.8mm |
| -Giftbox | 300X180X120 mm |
| - Carton | 320x660x400mm |
| Weight-Net | 518g (including battery) |
| -Giftbox | 1050g |
| -Carton | 11kg |
| 20’’/40’’/40’’HQ Loading: | 3150/6450/7740 PCS |
