| Prod Model: |
Ultra pure UVF |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Flow Rate: |
15 Liter/Hour* |
| Resistivity: |
18.2megohm-Cm |
| Conductivity: |
<0.055us/Cm |
| Heavy Metal Ion: |
<0.1ppb |
| Toc: |
<3ppb |
| Endotoxin: |
<0.001EU/Ml |
| Bacteria: |
<1cfu/Ml |
| Oulet: |
RO Water,up Water |
| Power: |
110-220V,50-60Hz;48W |
| Dimension/Weight: |
Lxwxh:41X22X42cm/About 20kg |
| Style For Purifier: |
Table Top |
| Type For Purifier: |
Reverse Osmosis |
| Certification: |
CE |
| Water Temperature: |
Normal |

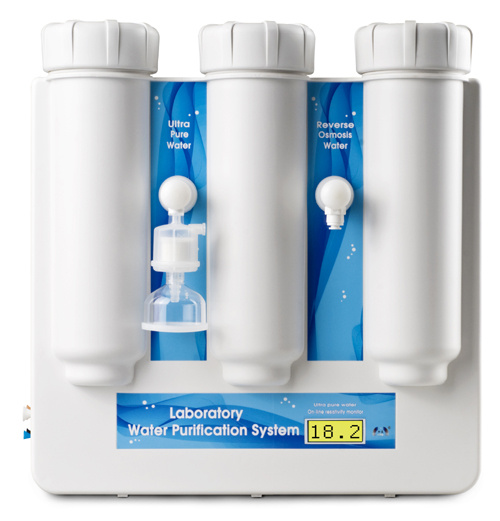

Product Description
1)Application
Molecular biology experiment, gene research, cell culture, PCR, IVF, drug development, medical inspection etc.
2)Flow schematic PF+AC+RO+UV+DI+UF+TF
LV. 1 Special spun fiber filter
LV. 2 Special active carbon filter
LV. 3 Special active carbon filter
LV. 4 100 GPD RO membrane
LV. 5 Double (254&185nm) wavelength UV lamp
LV. 6 Ultra pure polishing resin cartridge
LV. 7 MWCO 5000D UF eliminating endotoxin cartridge
LV. 8 0.2μ M terminal filter
3)Performance characteristics
An injection molding import plastic case, so the appearance is delicate
The system requires no special installation, connect the system to your tap water supply, plug in the system and install the pack-it's ready to use.
Flush the RO membrane automatically, if there is no tap water, the system would stop working automatically
The tank would be full automatically, the system would stop working if the tank was full
With standard fast insert external equipment supply mouth, system can upgrade
Double length(254&185nm) UV lamp cartridge
Germany PES 5000 daltons molecular weight UF cartridge
USA Pall 0.2µ M terminal filter
4)After-sales
· The products customers buy from our company enjoy repair service since the day of purchase. In on year from the purchasing day, our company is obliged to replace components free of charge due to non-human-behavior factors except:
(1). Damage caused by maloperation or use in abnormal situations.
(2). Disassembly any part of the machine or human-behavior damage.
(3). Not repaired by our serviceman.
|
Specification |
Standard |
Eliminating endotoxin |
Low TOC |
Comprehensive |
|
Model |
Ultra pure |
Ultra pure UF |
Ultra pure UV |
Ultra pure UVF |
|
Ultra pure plus |
Ultra pure plus UF |
Ultra pure plus UV |
Ultra pure plus UVF |
|
Flow procedure |
PF+AC+RO+DI+TF |
PF+AC+RO+DI+UF+TF |
PF+AC+RO+UV+DI+TF |
PF+AC+RO+UV+DI+UF+TF |
|
Application |
Microanalysis Environmental analysis
AA,ICP,IC
Buffer disposing
Pharmacy research
Medicine examining, |
Molecular biology
PCR, gene research
Pharmacy research
Medicine examining,
Cell cultivating
IVF etc. |
Micro organic analysis
Environmental analysis
HPLC,TOC
VOC,GC/MS
Pharmacy research
Medicine examining, |
Molecular biology
Micro organic analysis
Environmental analysis
Pharmacy research
Medicine examining
Cell cultivating, IVF etc. |
|
Feed water requirement |
Tap water: TDS<200ppm,5-45 degrees celsius,1.0-4.0Kgf/cm 2
(if inlet TDS>200ppm, extra pretreatment is recommended) |
|
Purification system |
Pretreatment unit |
Special spun fiber filter ("plus UF/UV/UVF" model: outside 10" spun fiber filter)×1+Special active carbon block filter×1+Special active carbon block filter×1 |
|
RO unit |
100GPD RO membrane×1 ("plus" model:2×100GPD RO membrane) |
|
Subsequent unit |
Ultrapure polishing resin cartridge× 4+(0.45+0.1)μm terminal filer×1
UV model:+Double wavelength(185&254)nm UV lamp cartridge×1
UF model:+5000 Doulton UF cartridge×1
UVFmodel:+Double wavelength(185&254)nm UV lamp cartridge×1+5000 Doulton UF cartridge×1 |
|
Ultrapure water quality |
Resistivity |
18.2MΩ.cm@25 degrees celsius |
|
Heavy metal ions |
<0.1ppb |
|
TOC |
<10 ppb |
<5 ppb |
|
Endotoxin |
- |
<0.001EU/ml |
- |
<0.001EU/ml |
|
particle(>0.22μm) |
<1/ml |
|
Bacteria |
< 1cfu/ml |
|
RO water quality |
< TDS(ppm, mg/l) of tap water×5% |
|
Output(25 degrees celsius ) |
15 liters/hour* ("plus" model:30 liters/hour*) |
|
Flow rate |
2 liters/min(with pressure tank)(Less output with UF/UV cartridge) |
|
Pure water outlet |
RO water ,ultrapure water |
|
Control system |
Automatic electronic pressure sensor controlling, RO membrane auto flushing, automatic stop without water, automatic stop when water tank full, automatic cutting off water when pump stopping, guaranteeing 24 hours' work. |
|
Water quality monitor |
TDS test pen+ on-line resistivity monitor |
|
Electric requirements |
AC110-220V,50/60Hz, 48W/plus model:72W |
|
Dimension and weight |
Length×Width×Height:41×22×42cm / 12-14 kg |
|
Standard configuration |
Main body(including:1 set cartridge)+4.0 gallon water tank + TDS pen + accessory box |
