| Prod Model: |
BD2-(8/12/24/30/45/ 60)DI; BS2-(8/12/24/30)DI |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Lab Water Purification |
Product Description

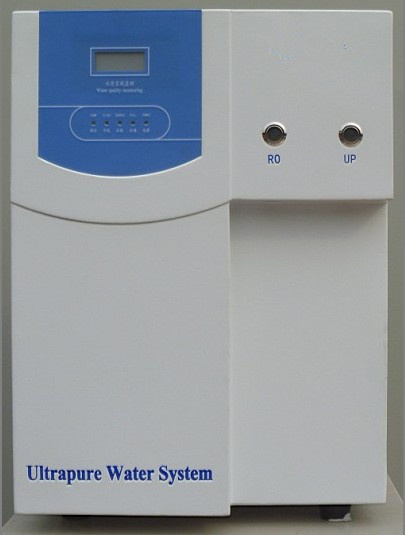

Basic Type Lab Water Purifier
Characteristics and Advantages
1. Optimized technology process design, is not only the assurance of producing water quality, but also can reduce consumables replacement cost.
2. Unique automatic back-flush pretreatment design and long-term KDF composite filters can effectively prevent raw water from scaling inside RO membrane, the life is 3 times longer than the products in the same industry.
3. All products are independent designed, R&D, standardization, parameterization,
4.3D computer CAD product design, making the structure more reasonable, interchangeability better, the quality more stable.
5. Output water quality online monitoring, LED LCD panel digital display, accurate and obvious.
6. Pressure type sealing system design, pipeline, joints are PE and POM inert material, avoiding secondary pollution.
7. Automatically making and storing water, the host will be power-off when the tank is full, and will start working when the water level drops.
8. Raw water stops or pressure become low, it will alarm sound-light, enter into the state of standby
9. The system is equipped with automatic flushing maintenance function when starting up or standby, effectively delaying the filter membrane's life.
10. One machine dual purpose, can produce 2 kinds of water quality at the same time: Pure water (RO water), Ultrapure water, getting water flow rate is1.5L/min when the water tank stores water.
11. Users can easily update built-in DI column, external high-capacity DI column, UV lamp, terminal filter, inner cycle and kinds of different forms of pretreatment, uses can configure the system according to their actual application, rich functions extending pace make the basic type pure water system play its great performance in industries, medical, scientific research, etc
|
Product Name |
Basic Type Lab Water Purifier |
|
|
Product Model |
BD2-ΔDI
("Δ" means water production) |
BS2-ΔDI
("Δ" means water production) |
|
|
|
|
Water Production (L/H)* |
8 |
12 |
24 |
30 |
45 |
60 |
8 |
12 |
24 |
30 |
|
|
RO system recovery rate |
20-60% |
≥20% |
≥25% |
≥30% |
≥30% |
|
|
Water storage tank |
Optional (effective volume 3.5L / 10L / 20L / 30L) |
|
|
RO treatment level |
Single stage RO |
Double stage RO |
|
|
Producing Water Quality |
|
|
III Type Pure Water (RO) |
Inorganics removal rate
(including kinds of ions) 96-98%,
organics (MW>100Delton)
and bacteria/particle(>0.22μm) removal rate >99% |
<5μs/cm
(better than GB668-III Type)
organics (MW>100Delton)
and bacteria/particle (>0.22μm) removal rate >99% |
|
|
|
|
II Type pure water (UP) |
resistivity :>18.2MΩ.cm /conductivity: (0.055μs/cm)
TOC <30ppb, bacteria/particle(>0.22μm)< 1CFU /ml |
|
|
Water flow rate (Max) |
1.5L/min |
|
|
Raw water conditions |
municipal tap water (Temperature 5-40ºC, pressure> 0.15Mpa) |
|
|
Power |
220V/50-100W (little difference depends on different models) |
|
|
Size |
350×440×490 mm (L×W×H) |
|
|
Weight |
28Kg |
|
|
Application |
|
|
III Type Pure Water (RO) |
glassware cleaning, water for hydroponic, as the inlet water for ultrapure water system, autoclaves, environment chamber, vapor generator, conventional reagent preparation. |
|
|
II Type pure water (UP) |
FAAS(flame atomic absorption), general cell tissue culture, preparation of cell and tissue structure, electrofax ,spectropolarimeter, water quality analysis, immunocytochemistry , electrophysiology , electrochemistry , HPLC, reagent preparation/dilution, buffer/solvent preparation, qualitative analysis of Applied Chemistry |
|
|
Remarks |
B means basic type lab water purifier
D means single stage RO treatment
S means double stage RO treatment
2 means Type 2 lab water |
|
