| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
Amplifier |
| Product Type: |
Professional Aduio |
| Warranty: |
3 Years |
| Supply Spare Parts: |
Yes |
| Certificates: |
CE RoHS |
| Capacittance: |
3300UF, 220V Siemens |
| Color: |
Blue, Black, Red |
| Business Type: |
Manufactuer |
| OEM Servince: |
Yes |
| Copy: |
Lab Gruppen Fp Series |
| Type: |
Professional Amplifier |
| Usage: |
KTV System |
| Used For: |
Professional |
| Tube Type: |
Transistor Amplifier |
| Function: |
Pre-amplifier |
| Output Number: |
4 |
| Element Number: |
Monoamplifier |
| Conductive Mode: |
D |
| Sound Channel: |
4CH |
| Voltage: |
110V or 220V |
Product Description

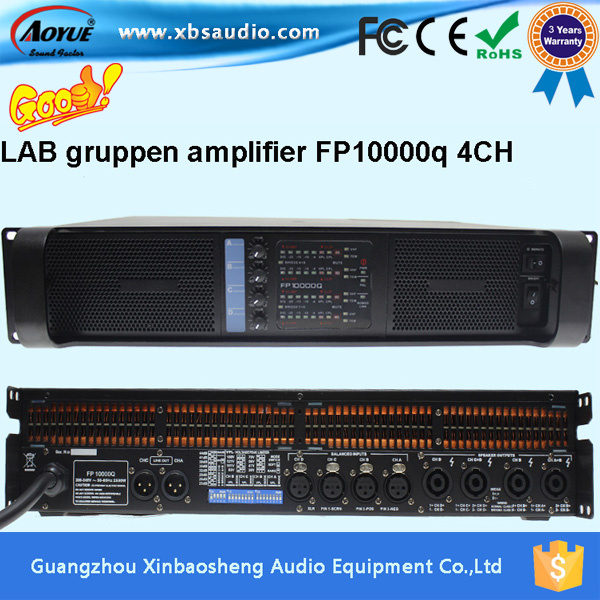

Professional Audio Lab Gruppen Power Amplifier Fp10000q for Concerts
Product Description:
10000W Switch Audio Amplifier, Pro Karaoke Sound, Professional Power Amplifiers (FP10000Q)
1. 4x2100@4ohms, 4x2500W@2ohms Audio Power Amplifier, Line Array System Power Amplifier
2.Only 13kg Lightweight Switching Power Amplifier, Pro Audio
3. FP10000Q 10000W Audio Amplifier, PA Power AMP, Professional Amplifiers
4. Integrated Amplifier, Stereo Power Amplifier, Professional Audio Amplifiers
5. Lab Gruppen Style Four Channel Digital Amps
Features:
1. The lastest design- everything inside is the same as lab gruppen amplifiers
2. Gorgeous appearance -- you can choose same as original machin or choose blue, red or black front panel
3. Switch power supply-3300uf, Siemens brand capacitors
4. Light weight-only 13kg, easy to tak.
5. Best service: 3 years warranty, supply spare parts
Specifications:
4CH Professional Line Array Audio High Power Amplifiers, Best Stereo AMPS (FP10000Q) |
| ITEM | FP10000Q |
| Output Power | 20-20kHz, 1W with 1 KHz |
| 8ΩStereo Power(RMS) | 1350WX4 |
| 4ΩStereo Power(RMS) | 2100WX4 |
| 2ΩStereo Power(RMS) | 2500WX4 |
| 8ΩBridged Power(RMS) | 4200WX2 |
| 4ΩBridged Power(RMS) | 5000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω) | 20 Hz - 34 kHz |
| THD 20 Hz - 20 kHz for 1 W | <0.1% |
| Signal-to-Noise Ratio | >112 Dba |
| Channel separation (Crosstalk) at 1 kHz | >70 dB |
| Input Connectors (per channel) | 3-pin XLR, electronically balanced |
| Output Connectors (per channel) | Binding Posts 2-pole |
| Class | TD Class |
| TourClass Protection | short circuit, DC voltage, turn-on/off transient, current, inrush |
| Operating voltage | 130-265 V / 65-135 V selectable |
| Voltage Gain(dB) | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable |
| Input impedance | 20 Kohms |
| Level adjustment (per ch.) | Front-panel potentiometer, 31 position detented from -inf to 0 dB |
| Dimensions (W×H×D) | 483×88×396mm |
| Packing dimension | 580×180×560mm |
| Net weight(kg) | 13kg |
| Gross weight(kg) | 15kg |
Applications
1>. Arenas, Cinema
2>. Convention Centers
3>. Medium or large Ballrooms
4>. Perfect for corporate
5>. Theaters Music
6>. Club or Church
7>. Concert reinforcement
