| Prod Model: |
L15-CDMA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Western Europe |
| Transmission Medium: |
Cable |
| Type: |
Line Amplifier |
Product Description

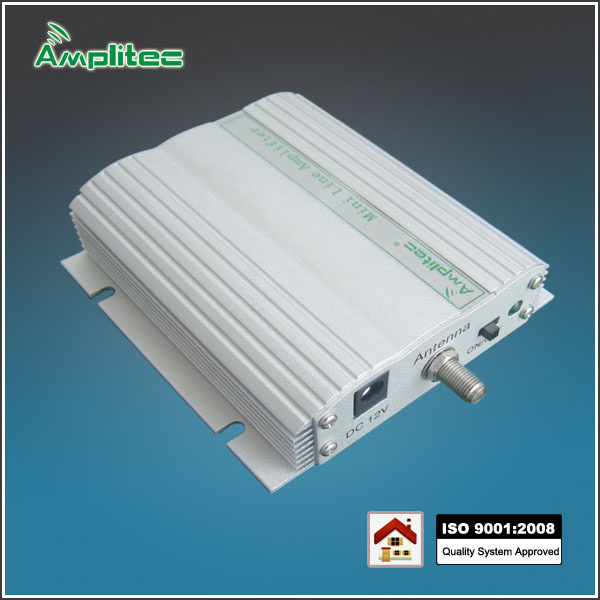

L15 Series 15 dBm Mini Line/15 dBm Mini Line Amplifier/CDMA Amplifier/Phone Amplifier
1. Product Feature
1. 15dBm output, small and elegant appearance.
2. Work with indoor repeaters to expand coverage.
3. Reduce cellphone transmit power and radiation, extend cellphone battery life.
4. Coverage up to 100 ~ 300 m² .
5. Low UL noise design, improve repeater sensitivity, keep communication quality
2. Line Amplifier Models
L15-CDMA
3. Standard package
1) AC90-260V, DC9V/2A power supply (EU standard/ US standard/UK standard/ SA standard/China standard, etc) 1PCS
2) Installation kit 1PCS
3) User manual 1PCS
4. Recommended Accessories
1) Service Antenna: 2dBi Rubber Antenna (824~960MHz/1710~2500MHz)
2) 5D cable with connector(cable length is optional)
|
Items |
Uplink |
Downlink |
|
Frequency Range |
CDMA800 & GSM850 |
824 ~ 849 MHz |
869 ~ 894 MHz |
|
Max. Gain |
≥ 15dB |
≥ 20dB |
|
Bandwidth |
Wide Band |
|
Ripple in Band |
± 3dB |
|
Max. Input Power Without Damage |
0dBm |
10dBm |
|
Output Power |
≥ 0dBm |
≥ 15dBm |
|
Intermodulation Products |
9KHz~1GHz |
≤ -36dBm |
≤ -20dBm |
|
1GHz~12.75GHz |
≤ -30dBm |
≤ -20dBm |
|
Spurious Emission |
9KHz~1GHz |
≤ -36dBm |
≤ -36dBm |
|
1GHz~12.75GHz |
≤ -30dBm |
≤ -30dBm |
|
Spurious Emission Mask( WCDMA ) |
Complies with 3GPP TS 25.106 |
|
Modulation Accuracy( WCDMA ) |
Complies with 3GPP TS 25.106 |
|
Peak Code Domain Error( WCDMA ) |
Complies with 3GPP TS 25.106 |
|
ACRR( WCDMA ) |
≥ 30dB @± 5MHz& ± 10MHz |
|
Noise Figure @ max. gain |
≤ 6dB(Typical) |
|
Return loss |
≤ -10dB |
|
Time Delay |
≤ 0.5μ s |
|
MTBF |
> 50000hours |
|
Power Supply |
AC: 90~265V, 50/ 60Hz; DC: 9V2A |
|
Power Consumption |
< 10W |
|
Impedance |
50 ohm |
|
Input Signal Levels |
-60dBm or more |
-15dBm to -5dBm |
|
LED Indication |
DC ON/OFF |
|
RF Connector |
SMA-Female |
|
Switch |
Power Switch |
|
Cooling |
Heatsink Convection cooling |
|
Dimensions (D x W xH ) |
93*92*25 (mm) |
|
Weight |
< 0.7 Kg |
|
Installation Type |
Wall Installation |
|
Environment Conditions |
IP40 |
|
Humidity |
< 90% |
|
Operating Temperature |
-10º C~55º C |
